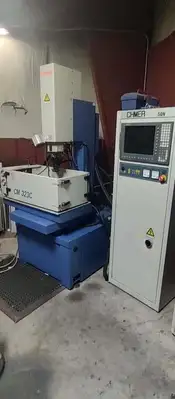

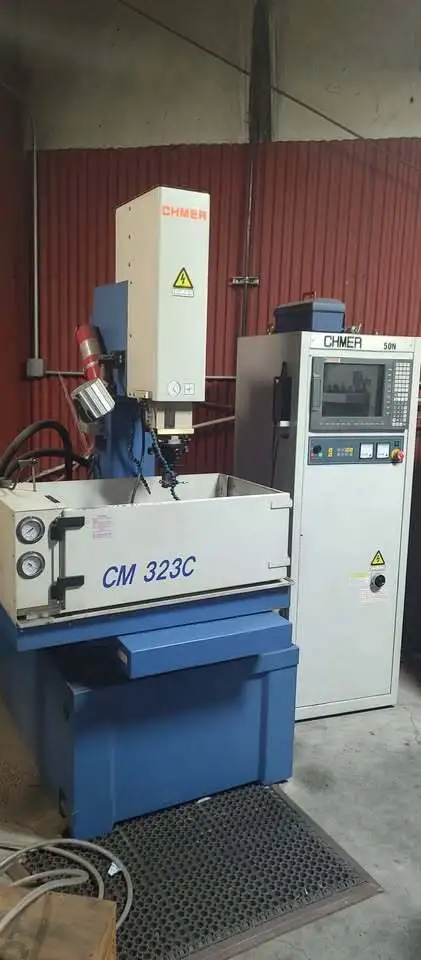

Chmer 323C CNC EDM Electrical Discharge Machine (2015)

Chmer 323C CNC EDM Electrical Discharge Machine (2015)
Specification

Model Unit CM323C
Table size (WxD) mm/inch 500x350/19.7x13.8

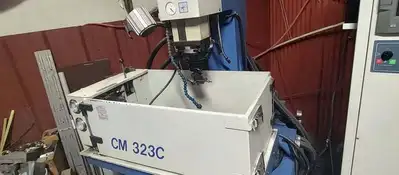

Work tank size (WxDxH) mm/inch 820x500x300/32.3x19.7x11.8
Table trave (X,Y) mm/inch 300x200/11.8x7.9
Ram travel (Z1) mm/inch 300/11.8
Distance from RAM platen to work table
platen to work table mm/inch 265~565/9.8~21.7
Max. electrode weight kg/lb 60/132
Max. workpiece weight kg/lb 500/1100
Outside dimensions mm/inch 1200x1350x2250/47.2x53.1x88.5
Weight kg/lb 1000/2200
For Dielectric - D323

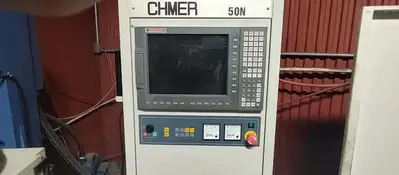

Power Supplier Unit

Model Unit 50N 75N 125N 150N
Max. machining current A 50 75 - -
Max. power input KVA 5 6 - -
Max. machining speed mm3/min 350 550 - -
Electrode wear rate % 0.2 0.2 - -
Best surface roughness μm/Ra 0.25 0.25 - -
Outside dimensions mm 620x850x1860 620x850x1860 - -
Weight kg/lb 180/396 180/396
Dielectric

Model Unit D323
Volume L 280
Filter method Paper filter
Pump Power HPxset 0.5
Weight kg Buit in
Outside dimensions mm Buit in
