| size | 84" x 40" | 84" x 40" |
| X Travel | 84" | 2,133.6 mm |
| Y Travel | 40" | 1,016 mm |
| Z Travel | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 36" | 914.4 mm |
| Table-L | 84" | 2,133.6 mm |
| # Axis | 3 | 3 |

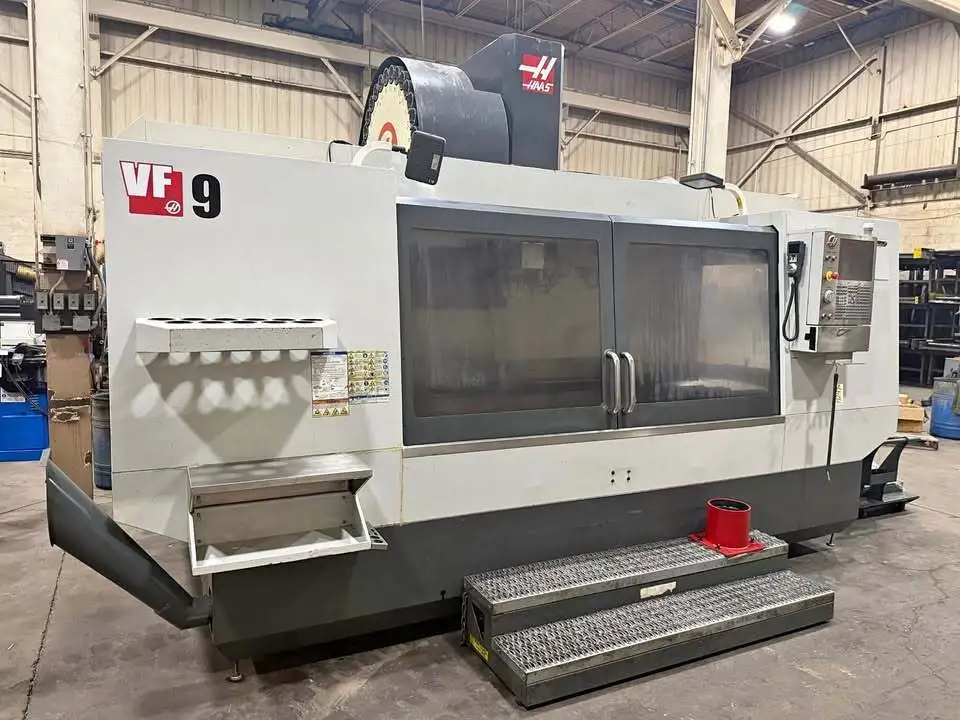

Haas VF-9/50 Vertical Machining Center (2010)
Table size: 84" x 36"
Table capacity: 4,000 Lbs.
X-axis travel: 84"
Y-axis travel: 40"
Z-axis travel: 30"
Number of axis: 3
Rapid traverse rate (X/Y/Z): 600 IPM
Spindle taper: CAT 50
Spindle speed: 7,500 RPM
Main motor: 30 H.P.
Tool changer capacity: 30
Weight: 28,900 Lbs
