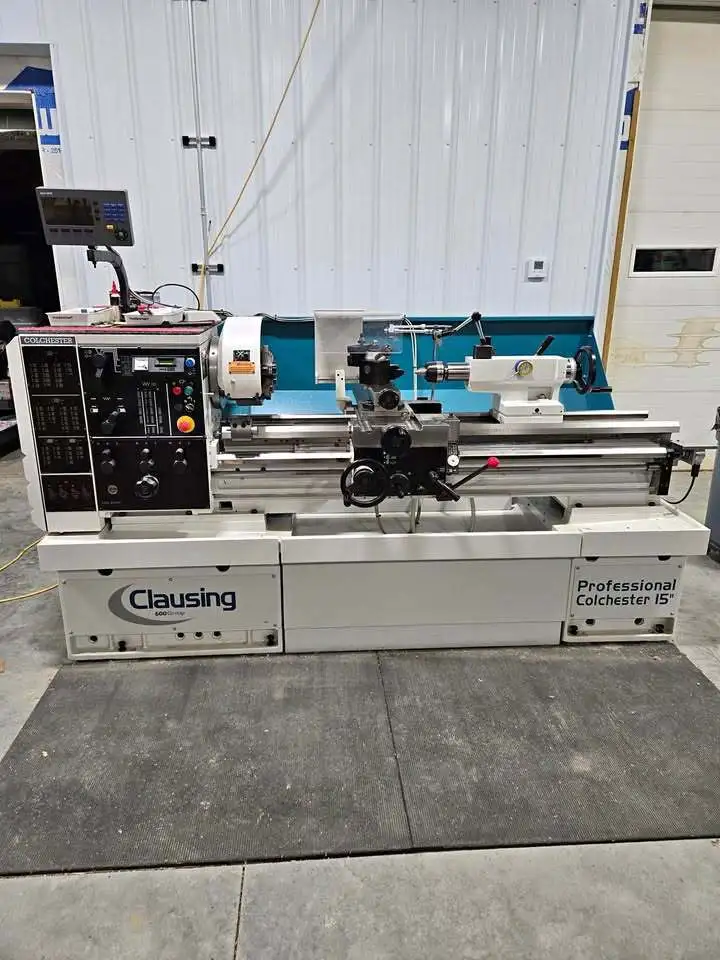

Clausing 8044VSJ Professional Colchester Series 15 Engine Lathe (2020)

Machine Style Engine Lathe
Spindle Speed Control Variable Speed
Spindle (Hp) 10
Swing Over Bed (inch) 15.75
Swing Over Cross slide (inch) 9.7
Swing in Gap (inch) 23
Distance Between Centers (inch) 25
Bed Width (inch) 12.5
Spindle Bore (inch) 2.12
Spindle Nose (camlock) D1-6
Spindle Nose Taper 4 MT
Number of Spindle Speeds 3 infinitely variable
Spindle Speed RPM Range 15-2500
Cross Slide Travel (inch) 9.8
Width of Cross Slide (inch) 7.09
Top Slide Travel (compound) (inch) 5.1
Tailstock Quill Diameter (inch) 2.87
Tailstock Quill Travel (inch) 5.5
Tailstock Quill Taper 5 MT
Longitudinal Feed Range (in/rev) 0.0014 – 0.048
Cross Feed Range (in/rev) 0.0007 – 0.024
Number of Inch Pitches 56
Range of Inch Pitches 2 – 56
Number of Metric Pitches 51
Range of Metric Pitches 0.2 – 14
Number of Diametral Pitches 20
Range of Diametral Pitches 8 – 56
Number of Module Pitches 20
Range of Module Pitches 0.2 – 3.5
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Foot Print (LxWxH) (inch) 99 x 63 x 44
Machine Weight (lbs.) 3,300
