165 Ton x 13'

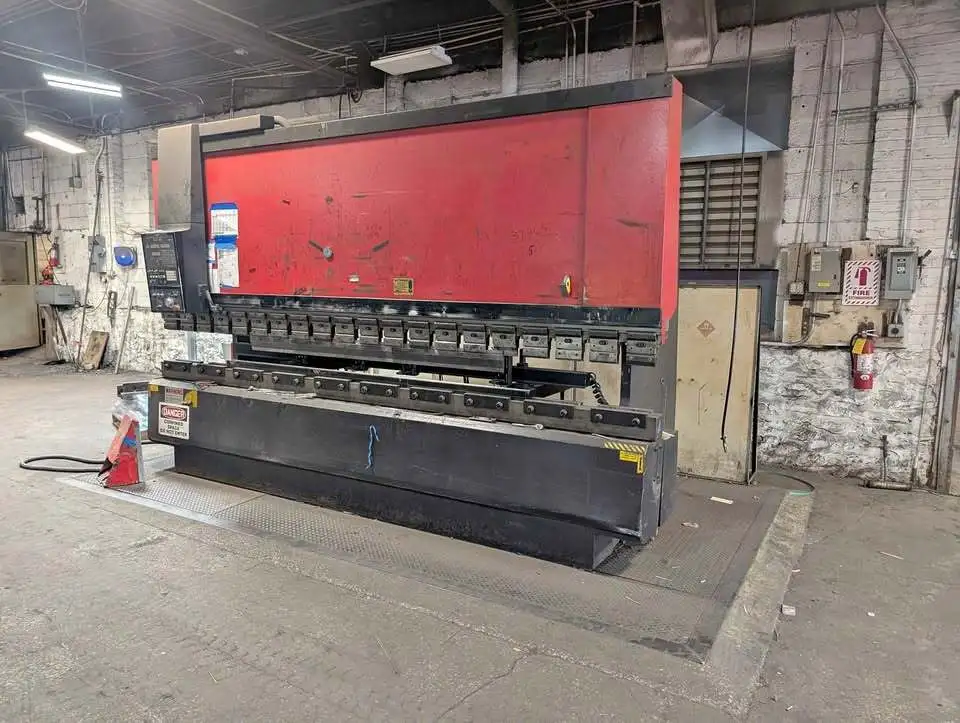

Amada FBD-1504 165 Ton x 13' Hydraulic Press Brake (1991)
Tonnage capacity (US Tons): 165
Maximum Bending Length: 157.4″ (4000 mm)
Distance between housings129″
Stroke length: 5.91″ (150 mm)
Throat depth: 15.75″ (400 mm)
Open height : 14.57″ (370 mm)
Approach speed: 3.7 Inch/Second
Return speed: 3.50 Inch/Second
Main Motor: 15 HP (11 KW)
Approximate Dims: L 184″ W 78″ H 110″
Approximate weight: 26,460 lbs.
Amada NC9-EXII CNC Back Gauge & Control

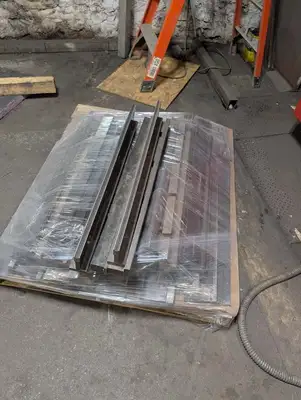

Dies Included
Pit Required
