| size | 51" x 26" x 24" | 51" x 26" x 24" |
| X Travel | 51.18" | 1,300 mm |
| Y Travel | 26.38" | 670.05 mm |
| Z Travel | 24.61" | 625.09 mm |
| RPM | 15,000 RPM | 15,000 RPM |
| Table-W | 26.38" | 670.05 mm |
| Table-L | 59.06" | 1,500.1 mm |
| # Axis | 3 | 3 |

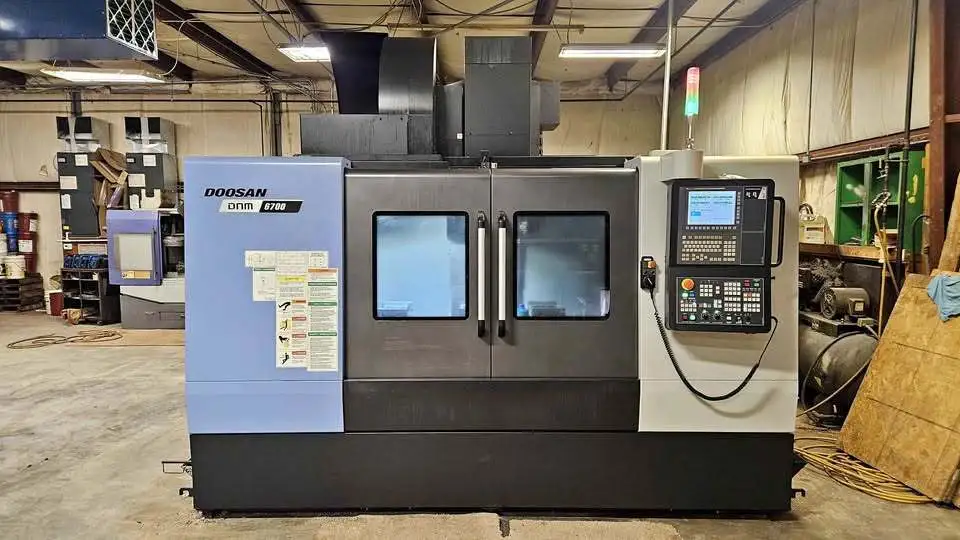

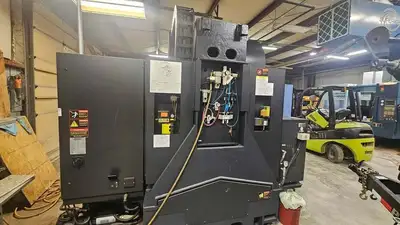

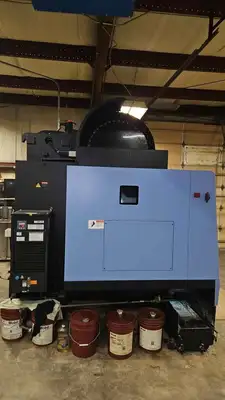

Doosan DNM6700 Vertical Machining Center (2019)
X-Axis 51.2
Y-Axis 671 MM
Z-Axis 625 MM
Rapid Traverse Rates X & Y Axis 35992 MM/MIN
Rapid Traverse Rates Z Axis 29997 MM/MIN

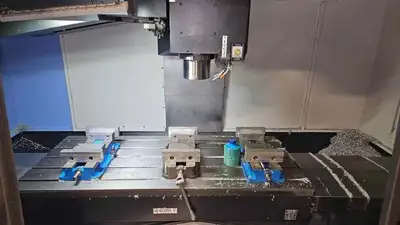

Table Size 1501 MM x 671 MM
Max Weight on Table 1300 KG
Speed Range 15000 RPM
Spindle Power 11 KW
Automatic Tool Changer 30 Side Mounted
Max Tool Weight 8 KG
Max Tool Diameter 81 MM - 124 MM
Max Tool Length 300 MM
Power 220V/35 KVA/3-Phase
Overall Dimensions 2591 MM x 3350 MM x 3119 MM
Weight 8006 KG .
Doosan-Fanuc iSeries Control
30-Position Automatic Tool Changer
Never ran steel, only light cutting in aluminum.
Always used spindle warm up program at machine startup.
