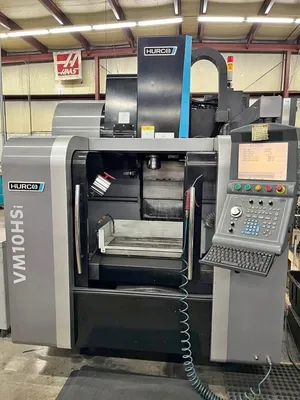

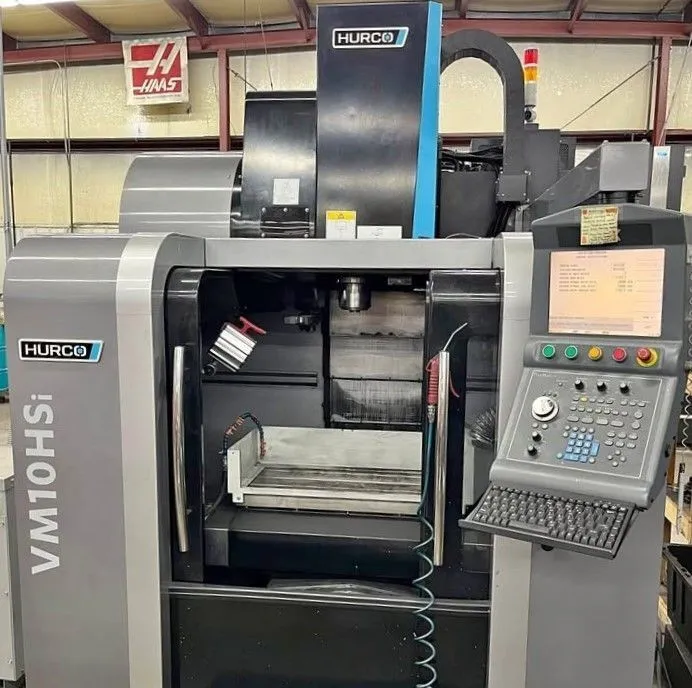

Hurco VM10HSI High Speed Vertical Machining Center (2012)

Hurco VM10HSI High Speed Vertical Machining Center (2012)

Travels & Capacity
X, Y, Z Axis Travel 660 x 406 x 508 mm
T-Slot Size 3 x 18 mm
Table Size 762 x 406 mm
Max. Weight on Table 1500 kg
Spindle Nose to Table 101.6 mm
Spindle
Max. Spindle Speed 20,000 rpm
Spindle Power (peak - 1 min) 8.5 kW
Spindle Torque (peak - 1 min) 5.4 Nm @ 15000 rpm
Tool Changer
Tool Type BT 30
Number Of Tools
Max Tool Diameter 80 mm
Max Tool Length 250 mm
Max Tool Weight 4.9 kg
Feedrates
Rapid Traverse X,Y,Z Axis 25.5 m/min
Max. Programmable Feedrate 25.5 m/min
Required Floor Space 3,204 x 3,395 mm
Machine Weight 3,060 kg
Machine Type 3-Axis Machining Centre
