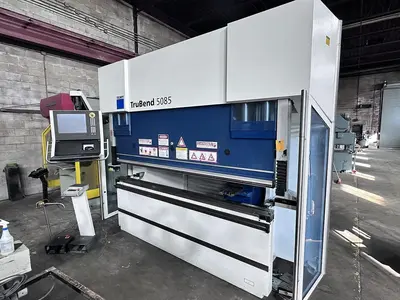

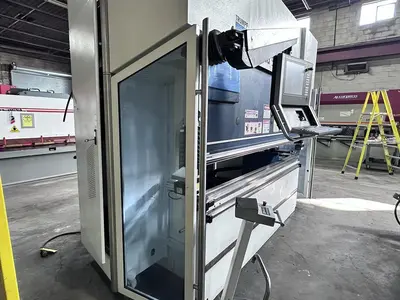

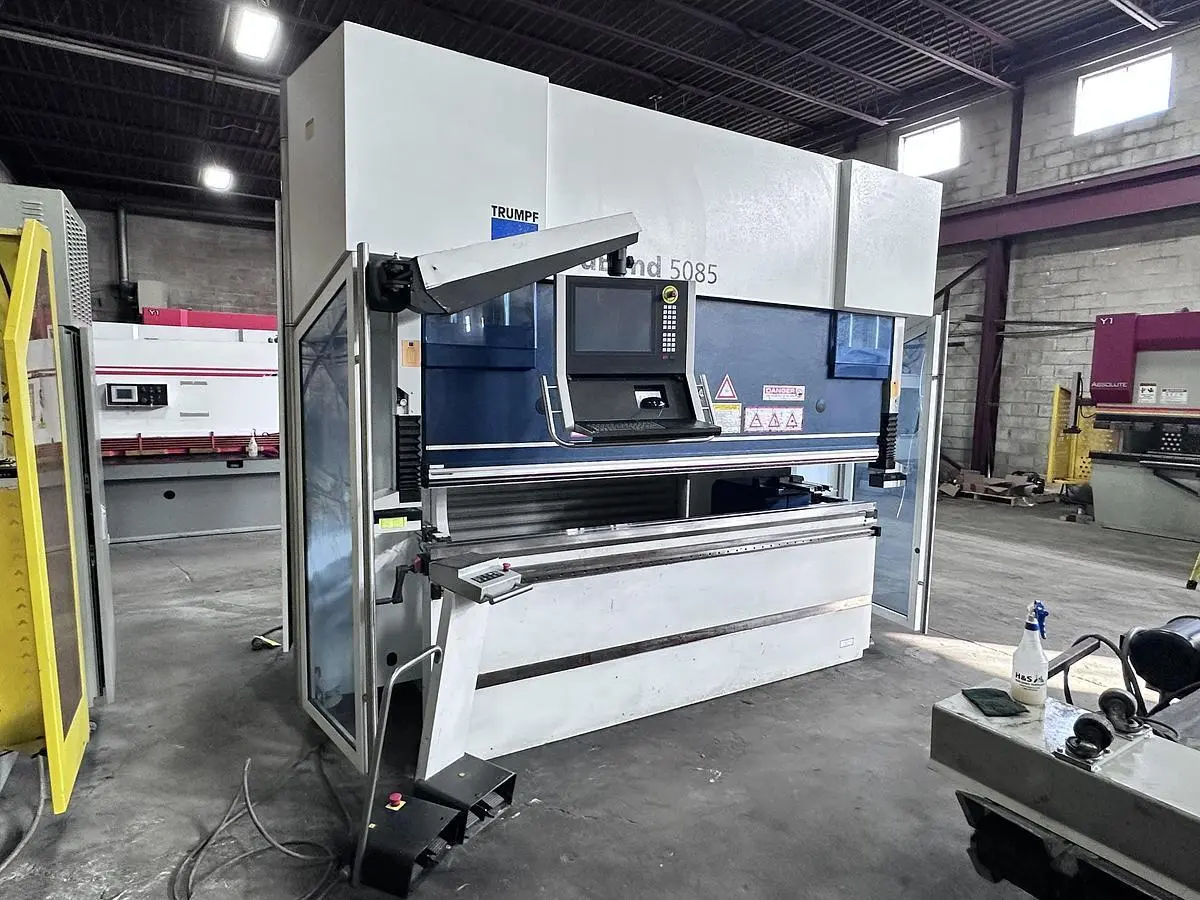

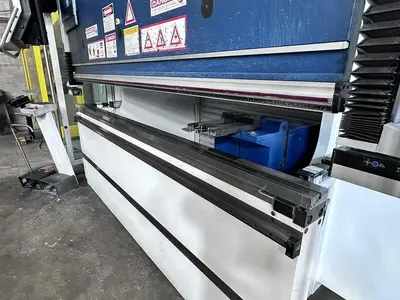

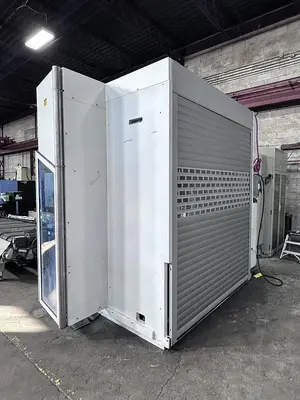

Trumpf Model TruBend 5085 6 Axis CNC Press Brake (2012)

Trumpf Model TruBend 5085 6 Axis CNC Press Brake

TruBend Series 5000:
High productivity throughout, from programming and tool setup to the
bending process. The TruBend series 5000 is capable of performing bending
work on a range of parts, always with the greatest precision.
Standards and Specifications
Pressing Force: 850kn / 85 Ton
Bending Length: 2210mm / 87"
Width Between Columns: 1750mm / 68.8"
Usable installation height: 385mm / 15.1"
Usable installation height w/ larger model (options): 615mm / 24.2"
Stroke: 445mm / 17.5"
Throat Depth: 420 mm / 16.5"
Open Height: 1095 - 1115mm / 43.1" - 43.8"
Rapid speed: 220 mm/s
Max. working speed: 10 -20 mm/s
Y Rapid Speeds: 220mm/s
Y Working: 10-20mm/s
Y Return Traverse Speed: 220mm/s
X Axis: 1000mm/s
R Axis: 330mm/s
Z Axis: 1000mm/s
Y Axis Accuracy: .005mm
X Axis Accuracy: 0,04mm
R Axis Accuracy: 0,04mm
Z Axis Accuracy: 0,08mm
Y Axis Stroke: 215mm / 8.4" (extended option) 445mm / 17.5"
X Axis Travel: 600mm / 23.6"
Brake Time Max: 95MS
Springback Time max.: 10,0mm
Max Gauge Area in X: 860mm / 33.85"
Operating Press Max: (300 bar)
Travel Path R Axis: 250mm / 9.8"
Current Electrical Arrangement: 460/3/60
