| Chuck / Table Dia | 157.23" | 3,993.7 mm |
| Swing | 157" | 3,987.8 mm |
| Work Ht-U/R | 78.6" | 1,996.4 mm |
| RPM | 32 RPM | 32 RPM |
| Power | 65 hp | 48.5 kW |

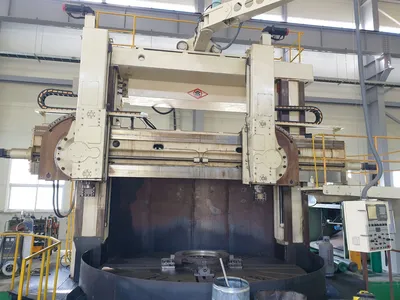

Kolomna Model 1500 4000MM CNC Vertical Boring Mill
Model : 1540 CNC Vertical lathe
Year : 1980S (retrofit to CNC in Year 1990s in Korea)

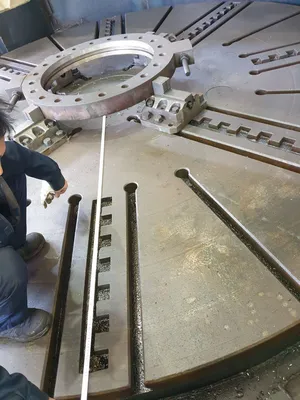

Table diameter : 4000mm
Max swing : 4000mm
Max cutting height : 2000mm
Ram vertical travel : 1250mm
Load capacity on table : 50 ton
Main motor : 63 kw

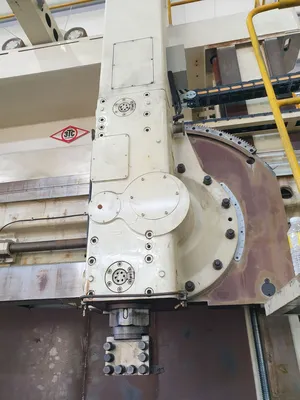

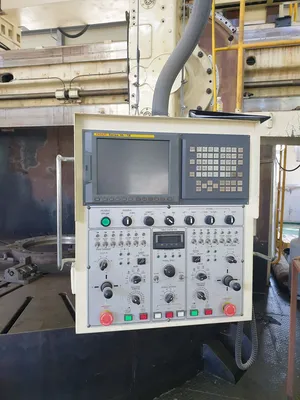

(2) Ram Heads, Retrofit to CNC Fanuc 18T control, feed with ball screw and Fanuc servo motors
