Kao Ming KMC-218HIS Bridge Type Vertical Machining Center (2013)
Sold

Kao Ming KMC-218HIS Bridge Type Vertical Machining Center (2013)

Machining Centers, Vertical
Manufacturer:
KAO MING
Model:
KMC-218HIS
Year:
2013
Stock #:
94772

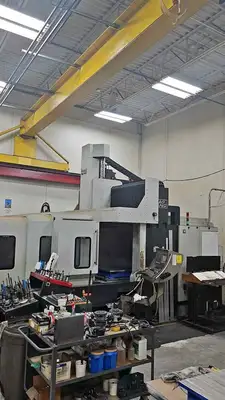

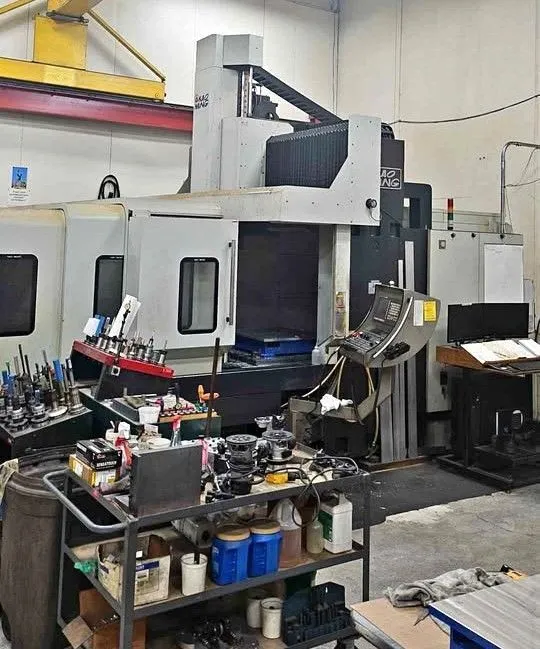

Kao Ming KMC-218HIS Bridge Type Vertical Machining Center (2013) Low Hours, Fanuc 31i CNCKMC-HIS Series are performance-driven, high speed double-column machining centers providing cost-effective solutions. All 3–axes employ V3 grade, oversized, maximum–preloaded liner roller guideways. The Y–axis step design of the dual guideways, which are separately located on the lateral and top sides of the crossbeam, greatly increases rigidity. Main spindle features inline direct–drive spindle that is coupled directly to the motor. This provides super smooth cutting performance and reduces operating heat for greater thermal stability. The spindle head is symmetrically designed so the spindle centre line is up against Y-axis way to prevent thermal displacement when measuring on X-axis. Specially designed base whereby column and crossbeam structures are optimized using FEA Finite Element Analysis. A properly preloaded and pretensioned, large diameter ballscrew is used for all three axes. The X–axis has a hollow ballscrew with oil cooled and is equipped with a special design to cool the ballscrew bearings by air for better positioning accuracy. The Z–axis hydraulic counter balance system is equipped standard with dual cylinders. Strict multi stress–relief treatment during the manufacturing process keeps the main structures, such as table etc., stable.
size87" x 66"87" x 66"
X Travel87"2,209.8 mm
Y Travel66"1,676.4 mm
Z Travel33"838.2 mm
Power50 hp37.3 kW
RPM1,000 RPM1,000 RPM
# ATC5050
Taper5050

Kao Ming KMC-218HIS Bridge Type Vertical Machining Center (2013)

Distance between two columns 1800 mm 70.86"
X-Axis travel 2230 mm 87.79"
Y-Axis travel 1700 mm 66.92"
Z-Axis travel 850 mm (*1050 mm) 33.46 mm (*41.33")
Distance from spindle nose to table top 200 - 1050 mm (*200 - 1250 mm) 7.87 - 41.34" (*7.87 - 49.21")
Guideway type X-Axis Linear roller Linear roller
Guideway type Y-Axis Linear roller Linear roller
Guideway type Z-Axis Linear roller Linear roller
TABLE

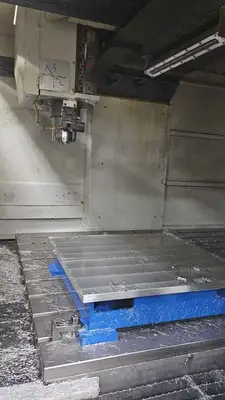

Table surface area 1650 x 2000 mm 64.96 x 78.74"
T-slot number (width x pitch) 9 (22 x 170 mm) 9 (0.86 x 6.69")
Max table load 8000 kg 17637 lb
FEEDRATE
Rapid traverse X-Axis 24 M/min 944.88"/min
Rapid traverse Y-Axis 24 M/min 944.88"/min
Rapid traverse Z-Axis 15 M/min 590.55"/min
Cutting feedrate 0 - 10 M/min (*0 - 15 M/min) 0.04 - 394"/min (*0 - 591"/min)
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system direct drive direct drive
Spindle motor (30 min rating) 22/26/35kW 30/35/47 hp
Taper ISO50/CAT50 ISO50/CAT50
Speed range 100 - 10000 rpm 100 - 10000 rpm
Drive range infinitely variable infinitely variable
Max spindle torque 300Nm 300Nm
TOOL CHANGER - Arm Type
Tool magazine capacity 30 tools (*40/50/60/90) 30 tools (*40/50/60/90)
Max tool weight 20 kg 44.09 lb
Max tool length 350 mm 13.77"
Max tool diameter ø130 mm ø5.11"
Max tool diameter (adjacent empty) ø200 mm ø7.87"
Tool selection shortest path shortest path
Tool to tool change time 6 sec 6 sec
ACCURACY
Positioning accuracy (full travel) ±0.004/300 mm (±0.008 mm) ±0.0001/12" (±0.0003)
Repeatability accuracy ±0.002 mm ±0.00007"

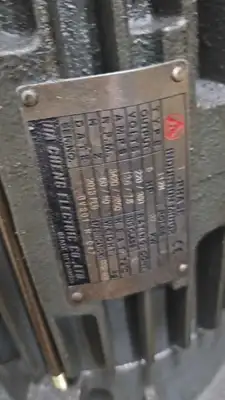

DRIVE MOTORS
Feed drive X-Axis 7kW (30Nm) 7kW (30Nm)
Feed drive Y-Axis 7kW (30Nm) 7kW (30Nm)
Feed drive Z-Axis 7kW (30Nm) 7kW (30Nm)
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 55kVA 55kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 75-110 psi
Coolant tank capacity 260 L 68.6 US gal
CONTROLLER

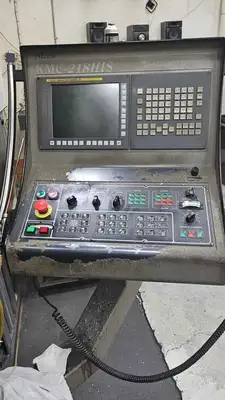

CNC Control FANUC FANUC

Fanuc 31i CNC
30-tool CAM type ATC
Fully enclosed splash guard
Coolant and air gun
Removable MPG manual pulse generator
CE Safety door interlocks
Reinforced foot-stand at both table ends
Slideway covers

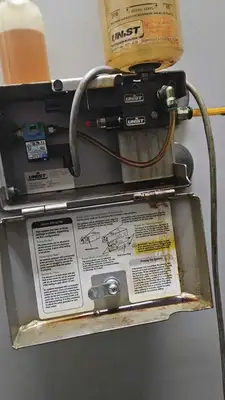

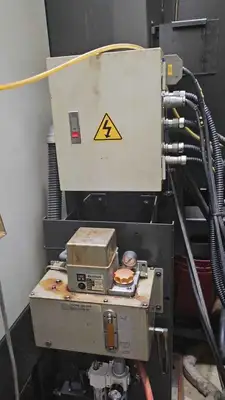

Automatic lubrication system
Inner cooled ballscrew X-Axis
Air blast

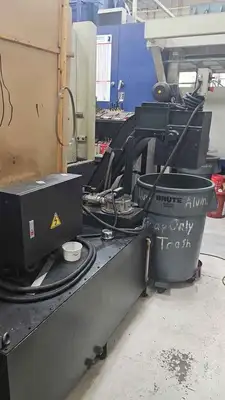

Coolant equipment
Spindle oil chiller
Electrical cabinet cooling system (air conditioner)
Chip Conveyor
Magazine safety guard
Manual tool change and foot switch
Automatic power off
Alarm buzzer
Call light (3-color)
Work light LED
