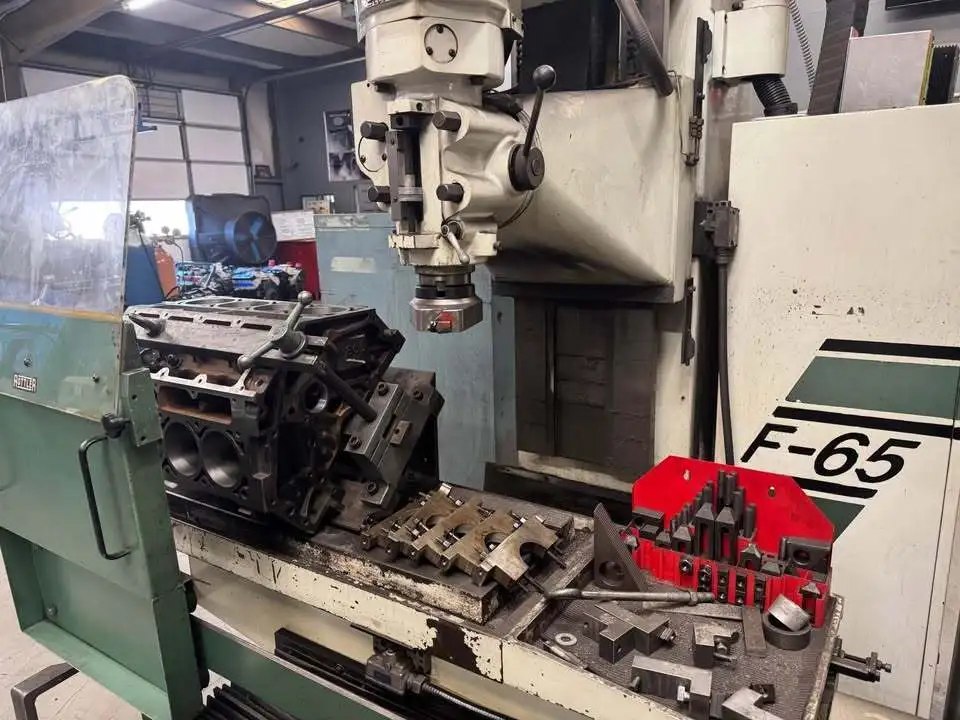

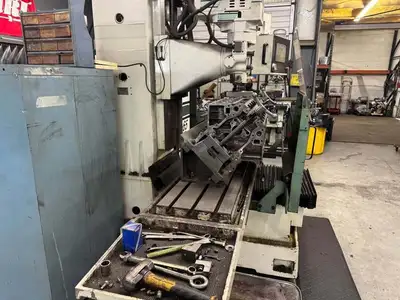

Rottler F65 CNC Vertical Bed Mill

Rottler F65 CNC Vertical Bed Mill

Table:
– Size…………60″ x 17″
– T-Slots (no. x width x distance)…………3 x 0.63″ x 3.94″
Travels:
– X-Axis (Horizontal)…………40″
– Y-Axis (In/Out)…………20″
– Z-Axis (Vertical)…………26″
– Spindle (Manual)…………5″
– Spindle Nose to Table…………4″ – 30″
– Spindle Center to Column…………20.9″
Spindle:
– Taper…………NMTB40
– Diameter…………4.13″
– Rotation Speed…………1 – 1800 RPM
– Head Tilt…………90° (Right and Left)
Performance:
– Rapid Travel – X & Y…………200 IPM
– Rapid Travel – Z…………150 IPM
– Feed Rate…………0.001″ – 0.060″
– Repeatability…………±0.0002″
Motors:
– Spindle…………5 HP, 150 In. Lbs.
– 3-Axis…………40 In. Lbs.
General:
– Floor Space – Catalog…………131″L x 81″W x 104″H
– Actual Shipping Dimensions…………96″ L x 88″ W x 100″ H on Blocks
– Machine Weight – Catalog…………8,000 Lbs.
– Electrical Requirement…………208/240V/1Ph/60Hz
– Air Requirement…………100 PSI

CNC Control: Uses a Windows-based control with programmable cycles for precision.
Engine Building: Excellent for cylinder boring, line boring (main bearing housings), surfacing (roughing/finishing), and lifter bore machining.

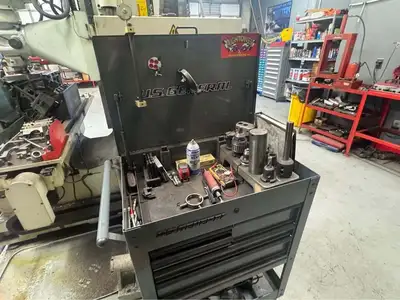

Tooling: Accommodates large NMTB tapers and offers specialized tooling for engine work, including indexable inserts.
Performance: Features include AC servo motors, precision ball screws, and variable speeds/feeds.
FLEXCAM: Allows for G-code programming and file transfer from CAD/CAM
