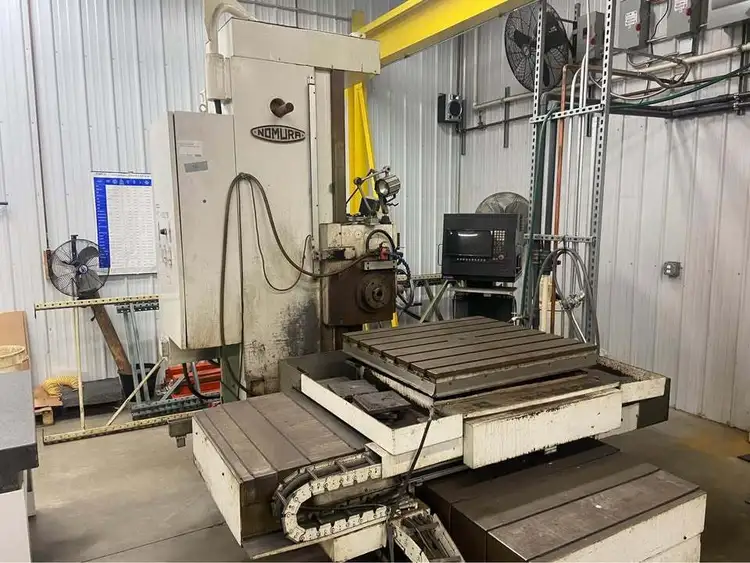

Nomura Model B-85BT-2 3.35" Table Type Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available

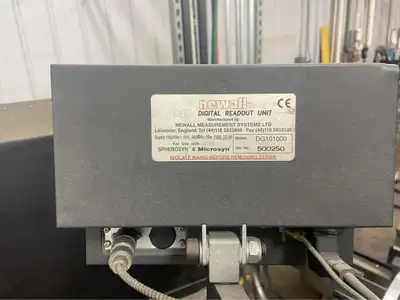

3.35" Dia Spindle, Built in Rotary Table, Newall Digital Readout
Nomura Model B-85BT-2 3.35" Table Type Horizontal Boring Mill
Spindle size: 3.35 in.
Spindle Nose: #40

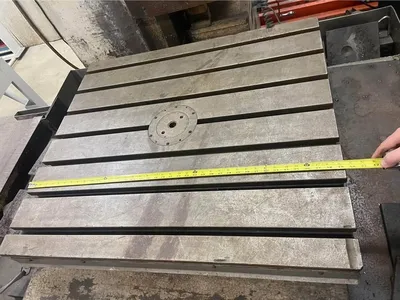

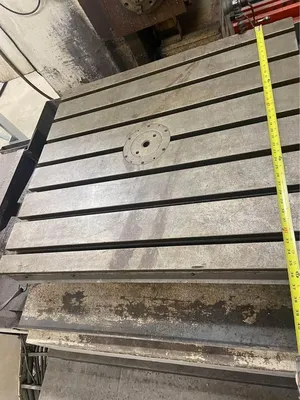

Table Size: 39.25 x 35.5″
X-Horiz Tvl of Table: 40″
Y-Vert Tvl of Head: 40″
W-Axis Travel (Quill): 20″
Spindle Speed: 21-2100 RPM
Feeds: 0.025-15 IPM
Dimensions: 144″ x 100″ x 120″
Weight: 25,000 lbs
3.35" Dia Spindle, Built in Rotary Table, Newall Digital Readout, Full Pendant Control,
3.35" Dia Spindle, Built in Rotary Table, Newall Digital Readout
Imperial
| Spindle Hole Dia | 3.35" |
| Travel-Vert | 40" |
| Table Size-W | 35" |
| Table Size-L | 39" |
| RPM | 2,100 RPM |
| size | 3.35" |
Nomura Model B-85BT-2 3.35" Table Type Horizontal Boring Mill
Spindle size: 3.35 in.
Spindle Nose: #40
Table Size: 39.25 x 35.5″
X-Horiz Tvl of Table: 40″
Y-Vert Tvl of Head: 40″
W-Axis Travel (Quill): 20″
Spindle Speed: 21-2100 RPM
Feeds: 0.025-15 IPM
Dimensions: 144″ x 100″ x 120″
Weight: 25,000 lbs
3.35" Dia Spindle, Built in Rotary Table, Newall Digital Readout, Full Pendant Control,
