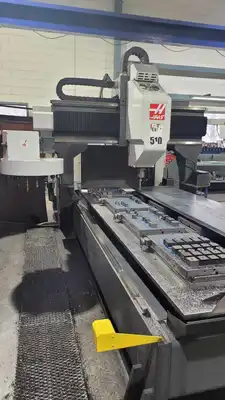

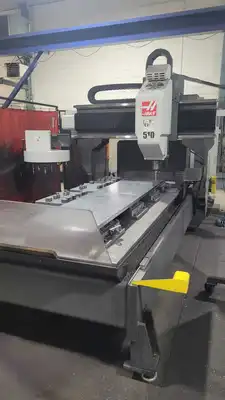

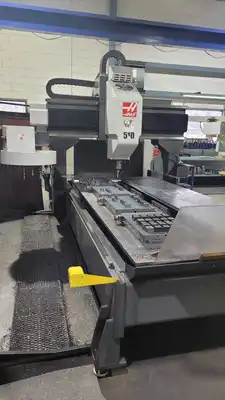

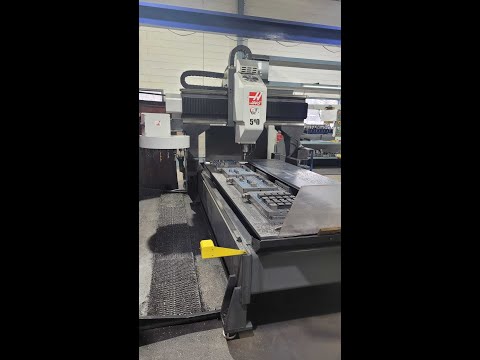

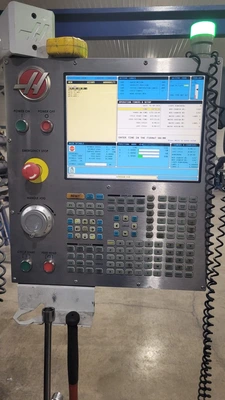

Haas GR-510 Gantry Type CNC Router (2014)

Haas GR-510 Gantry Type CNC Router (2014)

Travels S.A.E METRIC
X Axis 121.00 in 3073 mm
Y Axis 61.00 in 1549 mm
Z Axis 11.00 in 279 mm
Spindle Nose to Table (~ max) 13.5 in 343 mm
Spindle Nose to Table (~ min) 2.5 in 64 mm
Spindle S.A.E METRIC
Max Rating 15.0 hp 11.2 kW
Max Speed 8100 rpm
Max Torque 48.0 ft-lbf @ 1500 rpm 65.0 Nm @ 1500 rpm
Drive System Direct Speed, Belt Drive
Taper CT or BT 40

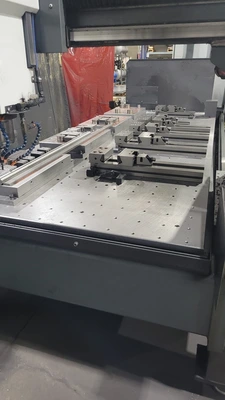

Table S.A.E METRIC
Length 122.0 in 3099 mm
Width 53.0 in 1346 mm
Max Weight on Table (evenly distributed) 6000 lb 2722 kg
Between Columns 62.0 in 1575 mm
Feedrates S.A.E METRIC
Max Cutting 800 ipm 20.3 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 2100 ipm 53.3 m/min
Rapids on Z 1100 ipm 27.9 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2520 lbf 11210 N
Max Thrust Y 1020 lbf 4537 N
Max Thrust Z 2050 lbf 9119 N
Tool Changer S.A.E METRIC
Type Carousel Carousel
Capacity 10 Tool
Max Tool Diameter (full)** 3.5 in 89 mm
Max Tool Weight 12.0 lb 5.4 kg
General S.A.E METRIC
Coolant Capacity 95 gal
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 8100 rpm
Drive System Direct Speed, Belt Drive
Spindle Power 15.0 hp 11.2 kW
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 40 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 20 A
Dimensions - Shipping:
Domestic Pallet 206.0 in x 111.0 in x 108.0 in 524 cm x 282 cm x 274 cm
Export Crate 206.0 in x 111.0 in x 111.0 in 524 cm x 282 cm x 282 cm
Weight 19400 lb 8800.0 kg
Domestic Pallet w/EC Option 206 in x 111 in x 114 in 524 cm x 282 cm x 290 cm
Export Crate w/EC Option 206 in x 111 in x 118 in 524 cm x 282 cm x 300 cm
Weight w/EC Option 19600 lb
Domestic Pallet w/EZ24 Option 206 in x 111 in x 125 in 524 cm x 282 cm x 318 cm
Export Crate w/EZ24 Option 206 in x 111 in x 127 in 524 cm x 282 cm x 321 cm
Weight w/EZ24 Option 20000 lb 9072 kg
