Boring Mill-Horiz Table Type CNC
Kuraki KBM-11X 4.3" CNC Table Type Horizontal Boring Mill (2002)

Kuraki KBM-11X 4.3" CNC Table Type Horizontal Boring Mill (2002)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mill-Horiz Table Type CNC
Manufacturer:
KURAKI
Model:
KBM-11X
Year:
2002
Stock #:
94763
Status:
For Sale
size4.33"4.33"
Spindle Size4.33"109.98 mm
X-Horiz Tvl of Table59"1,498.6 mm
Y-Vert Tvl of Head47.2"1,198.9 mm
Power30 hp22.4 kW
RPM3,000 RPM3,000 RPM
Table-W37.4"949.96 mm
Table-L41.3"1,049 mm
Spindle Tvl.13.78"350.01 mm

Kuraki KBM-11X 4.3" CNC Table Type Horizontal Boring Mill (2002)

Spindle Diameter
4.33"
Taper In Spindle
#50
Vertical Travel, Y-Axis
47.24"
Cross Travel, X-Axis
59.06"
Saddle Travel, W-Axis
27.57"
Spindle Travel, Z-Axis
13.78"
Spindle Speeds, 2-Ranges
5-3000 RPM
Rotary Table Size
37.4" x 41.34"
Table Load Capacity
7,500 Lbs.
Rotary Table, Indexing
.001 Degrees
Machine Weight
33,000 Lbs.

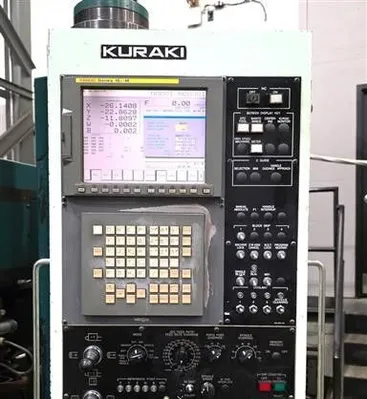

Fanuc 16iMB 4-Axis CNC Control
30-Staton Automatic Tool Changer
B-Axis Rotary Table
Coolant System
Full Chip and Splash Enclosure
Chip Auger and Chip Conveyor
30 HP Spindle Motor
