IMSA Model MF 1000 AF CNC Deep Hole Gun Drilling Machine

IMSA Model MF 1000 AF CNC Deep Hole Gun Drilling Machine

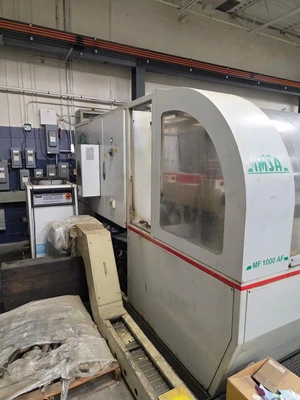

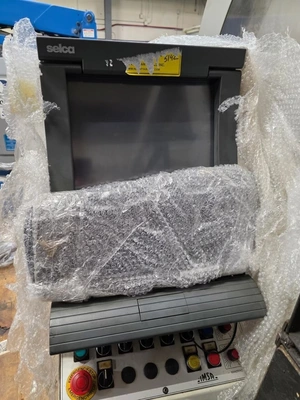

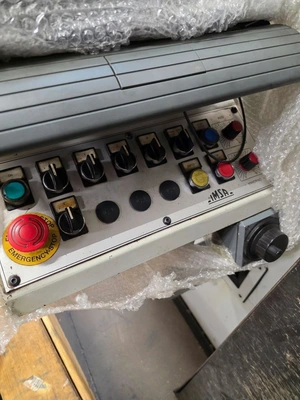

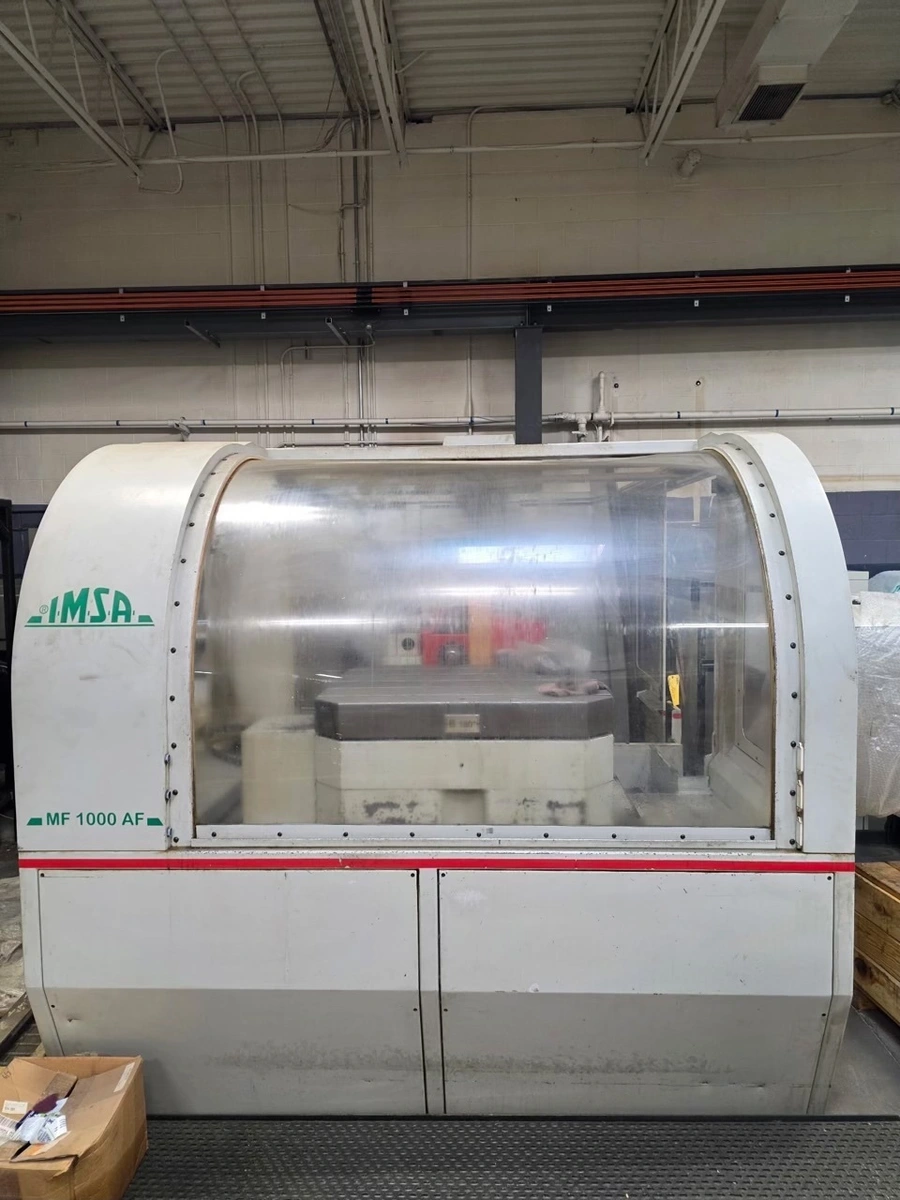

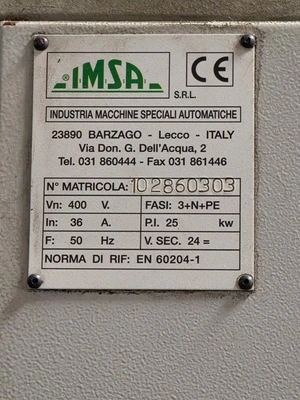

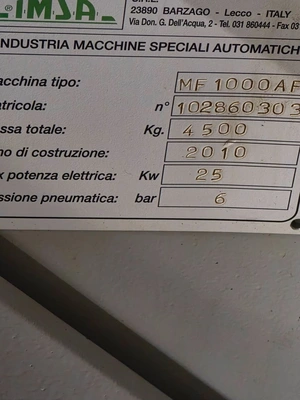

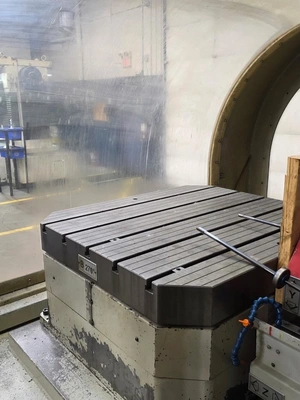

Rotary table:
Work area: mm 800 x 900
Bracket T-slots (quantity x width): mm 4 x 18
Maximum permissible load (rotating workpiece): kg 4,500
Maximum allowable load (stationary workpiece): kg 6,000

Axis travels - Working area:
Transverse - V-axis deep drilling: mm 1,000
Longitudinal X-axis: mm 900
Vertical Y-axis: mm 400
Auto workpiece approach Z axis: mm 300

Feeds:
Rapid X, Y, Z axes: mm/min 10,000

Working characteristics in drilling with "Cannon" drills:
Maximum drilling depth: mm 1,000
Deep drilling spindle rotation speed: rpm 6,000
Drilling section, from solid - minimum bit Ø: mm 4
Drilling section, from solid - maximum drill bit Ø: mm 25

Working characteristics in the milling spindle:
Maximum rotational speed: rpm 6,000
Maximum threading (on C40 type steel): M 20
Maximum quill travel (Z axis): mm 300

Dimensions:
Overall dimensions: mm 3,300 x 3,600
Height: mm 2,200
Total weight: kg 6,500

Machine complete with:
Instruction manuals and CE declaration
