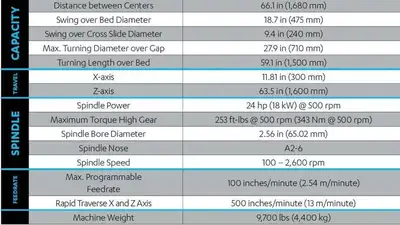

| size | 8" Chuck | 8" Chuck |
| Swing | 18" | 457.2 mm |
| Machining Length | 66" | 1,676.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.56" | 65.024 mm |
| Power | 25 hp | 18.6 kW |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

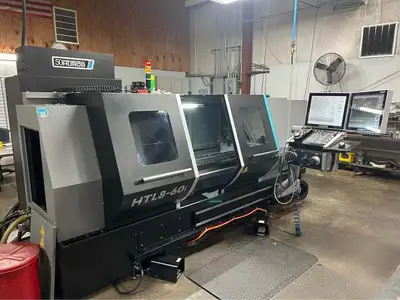

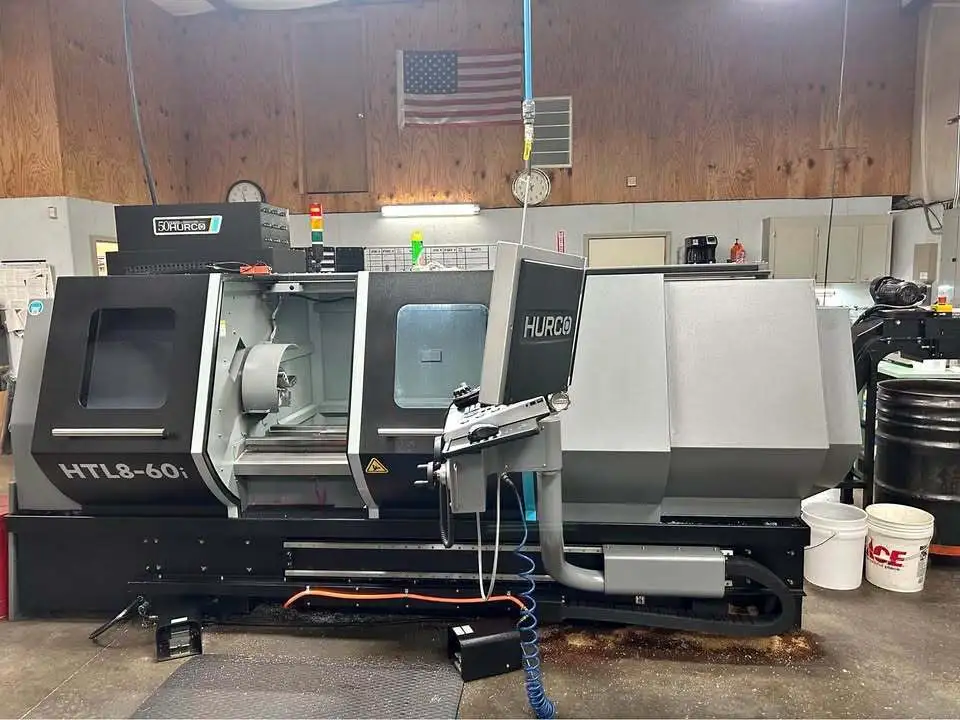

Hurco HTL8-60i 18" x 66" Flat Bed CNC Lathe (2023)
66” turning length
• 18.7” swing over bed
• 2.56” spindle bore (65 mm through-hole)
• 8” chuck
• 24 HP spindle, 100–2,600 RPM
• Box-way construction
• 8-station turret
• Gap-bed design for extra clearance
• Handwheel and manual operation
• MAX5 control with WinMax conversational programming
• Machine weight approximately 9,700 lbs
⸻
Hours
• Machine Hours approximately 562
• Spindle Hours approximately 106
Hurco Max 5 CNC Dual Screen CNC Control
Box-way construction
8-station turret
Flat bed, Gap-bed design for extra clearance
Handwheel and manual operation
MAX5 control with WinMax conversational programming
Chip Conveyor
