Superwave LaserSystem Model W200 Laser Welding Machine (2017)

Superwave LaserSystem Model W200 YAG Laser Welding Machine

Laser type Nd:YAG Solid State Laser
Laser pump source Flash lamp
Laser wavelength 1064nm
Nominal power 200W
Pulse peak power 8KW
Pulse energy 120J
Pulse duration 0.1-15ms
Pulse frequency 1-15Hz(other is optional)
Laser spot size 0.1-2.0mm
Mains Electrical
220V / 110V (Optional)
Frequency
50Hz / 60Hz
Rated Power
6KVA,Single Phase ,25Amp
Standby
1.5KVA.
Measures
Dimensions L x W x H :880mm x 480mm x 1100mm
Net Weight 135kg
Gross Weight 220kg

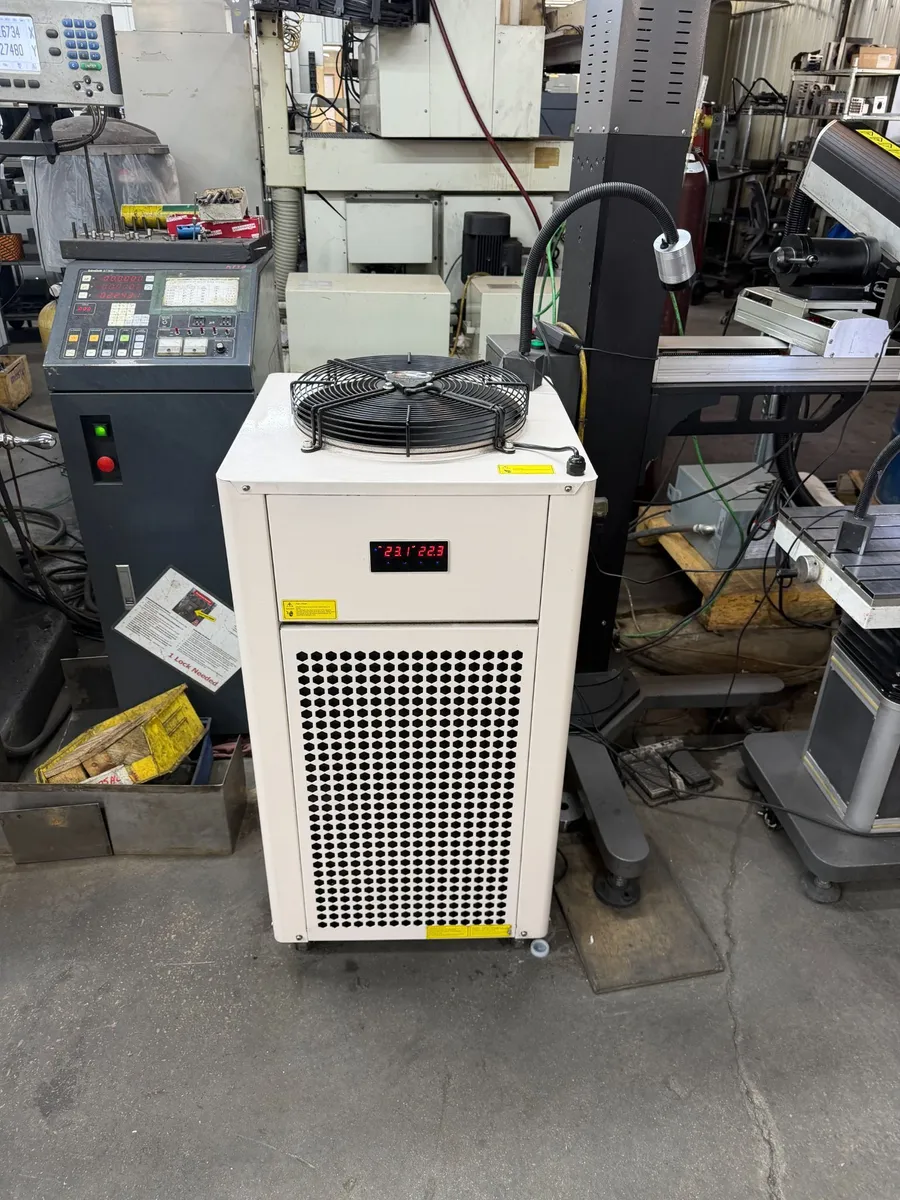

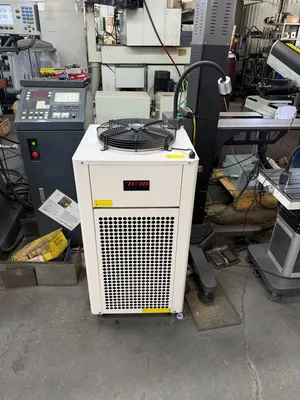

Laser Cooling-with refrigeration compressor
Setting temperature 25℃
Temperature difference set 2℃
Running temperature range 23-27℃
Low temperature warning 5℃
Max temperature warning 45℃
