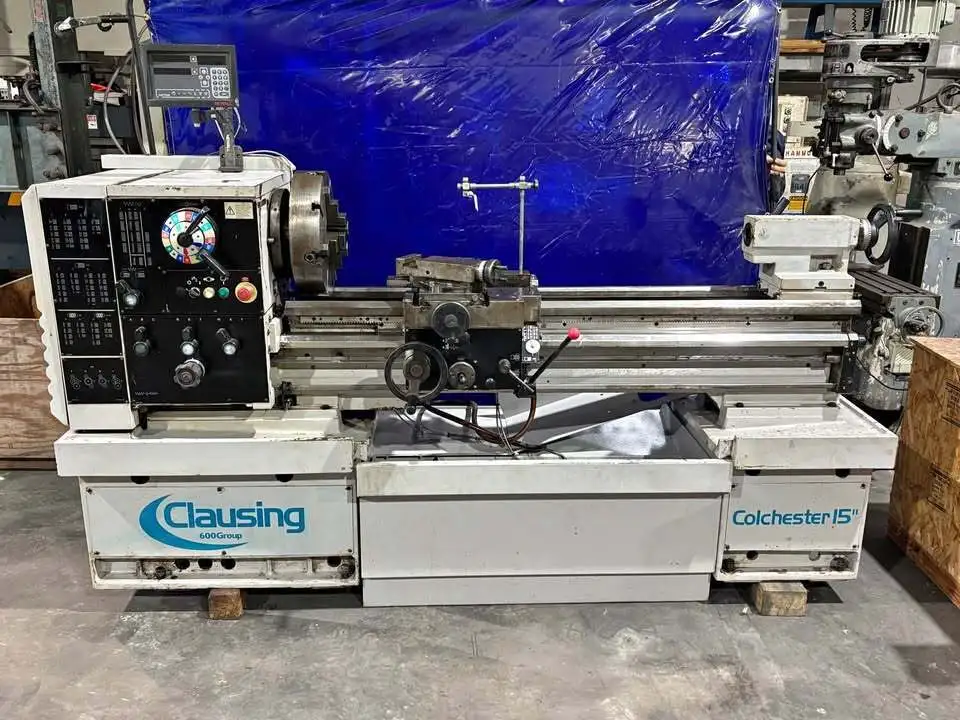

Clausing 15" Colchester Series 600 15" x 48" Engine Lathe (2007)

Clausing 15" Colchester Series 600 15" x 48" Engine Lathe (2007)

Swing Over Bed: 15"
Swing Over Cross Slide: Approx. 8.75" to 9.7"
Distance Between Centers: 48"
Swing in Gap (if applicable): Approx. 24"

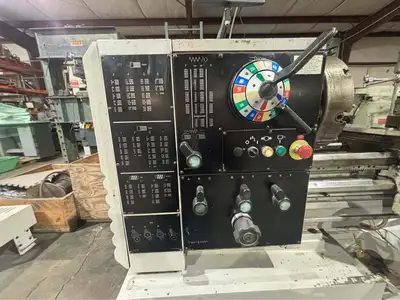

Headstock & Spindle:
Spindle Bore (Thru-hole): Typically 2" or 2.125" (2-1/8")
Spindle Nose: L-1 or D1-6 Camlock
Spindle Speeds: 25-2000 RPM
Feeds & Threading:
Threads (Inch): Wide range, such as 4-120 TPI or 4-112 TPI
Feeds: Range of longitudinal and cross feeds available via a selector plate
Leadscrew: Used primarily for thread cutting to maintain accuracy over the life of the machine.
Motor & Dimensions:

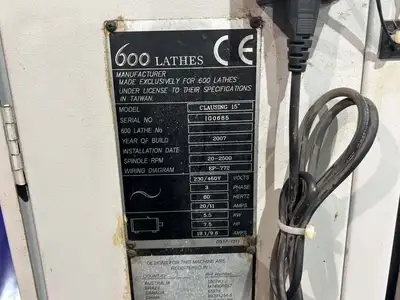

Main Motor: Common configurations include a 2.5/5 HP two-speed motor or a 5 HP single-speed motor (some later models use 7.5 HP).
Weight (approx): 2,300 to 3,000 lbs.
Approx. Dimensions: 92" to 94" Length x 38" to 44" Width x 52" to 55" Height.
Key Features

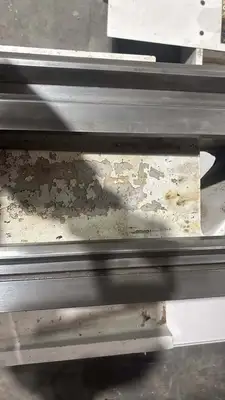

Construction: Heavy-duty cast iron bed with triangular webs for rigidity and minimal vibration. All bedways are induction hardened and precision ground.
Lubrication: Features a forced lubrication system for spindle bearings and gears, and an apron-mounted one-shot lubrication pump for the carriage ways.
Safety: Equipped with standard safety features such as a chuck guard with a limit switch, full rear splash guard, and an electromagnetic spindle brake.
Precision: All headstock gears are hardened and ground, with shafts turning on anti-friction bearings, which contributes to long-term performance and accuracy.
