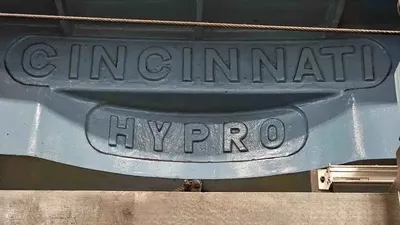

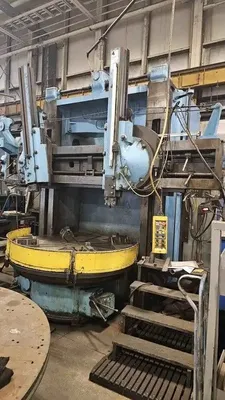

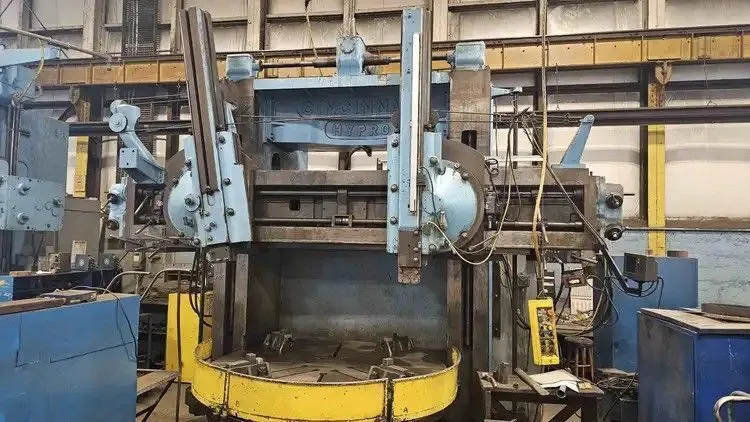

Cincinnati Hypro 72" Vertical Boring Mill
Have one to sell?
ConditionUsed
1 available
72" Table
Cincinnati Hypro 72" Vertical Boring Mill
Chuck Diameter 72.5"
Maximum Swing 79"
Height Under Rail 63"
Vertical Travel Of Ram Heads 50"
Horizontal Travel Of Ram Heads 50"
Max. Height Under Ram Heads 60.5"
Min. Center Distance Between Heads 20.62"
Spindle Speeds (Variable) 1-135 Rpm

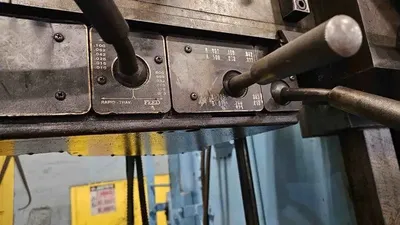

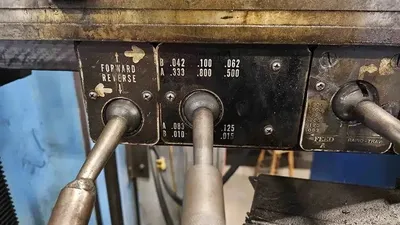

Feeds Rate (12) 0.010"-0.800"

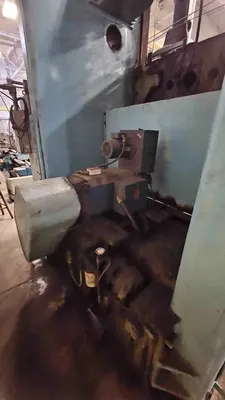

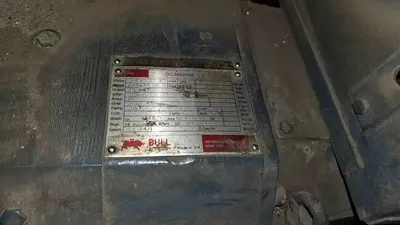

Main Motor (Dc) 35 Kw

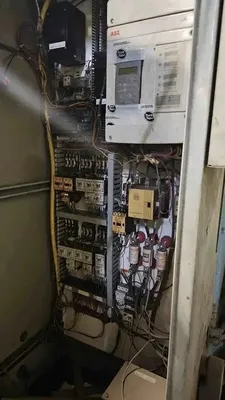

Electrics 575v/3ph/60hz
Made In Usa
Approximate Weight 65,000 Lbs
Approximate Overall Dimensions 180"L X 147"W X 146"H
2 Axis Heidenhain Digital Readout

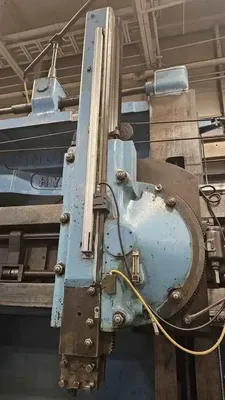

2 Swiveling Ram Type Heads Up To 60 Degrees

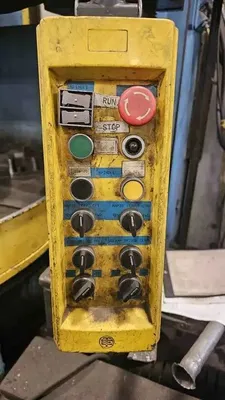

Pendant Control

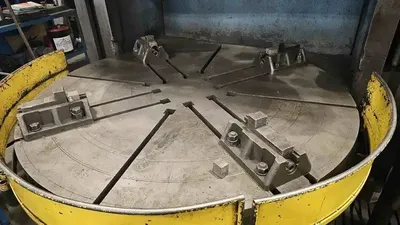

Four Jaw Chuck
Power Rail Elevation
Variable Speed
Floor Standing
