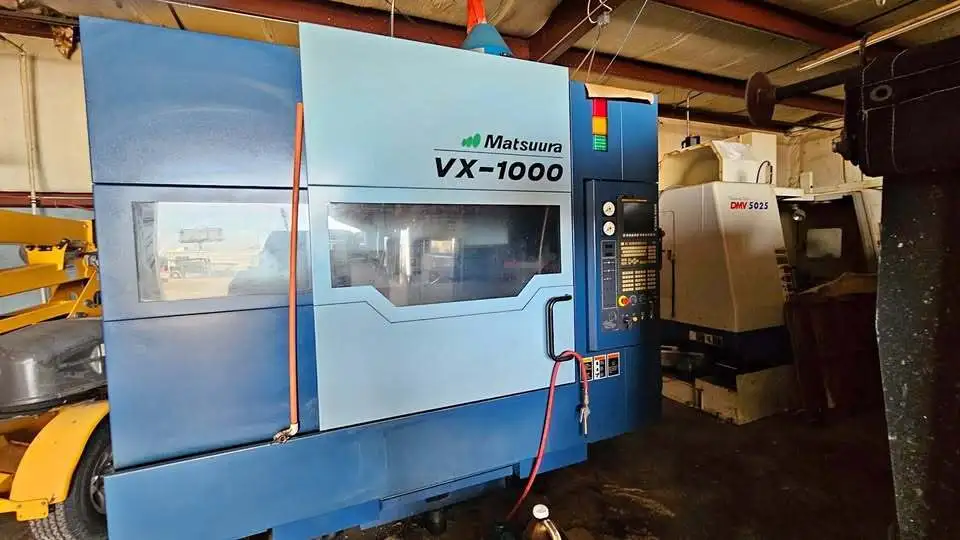

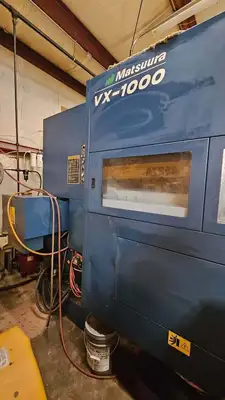

Matsuura VX-1000 High Speed Vertical Machining Center (2013)
Have one to sell?
ConditionUsed
1 available
20000 RPM
Matsuura VX-1000 High Speed Vertical Machining Center (2013)
X Travel 40"
Y Travel 24"
Z Travel 24"

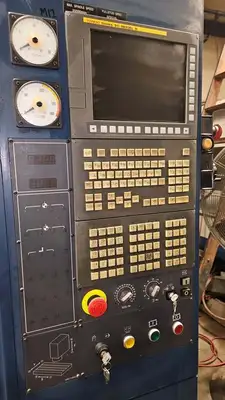

FANUC FS31iB control
1100 lb. loading capacity
Big plus, CAT 40, 30 tool drum type tool carousel with twin grip ATC Tool Management System
Thru spindle air blow
300 psi thru spindle coolant capable
Spindle chiller
Data server package - 1000 block look ahead MMU package and nano smoothing
Twin under table chip augers, coolant wash down
Lift up chip conveyor
Manuals

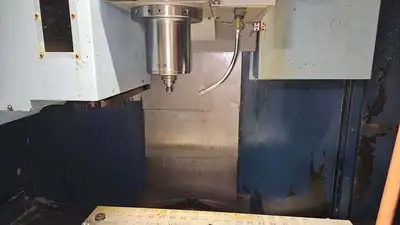

New (20K RPM) Maxia spindle.
New X axis ball screw assembly and linear ways.

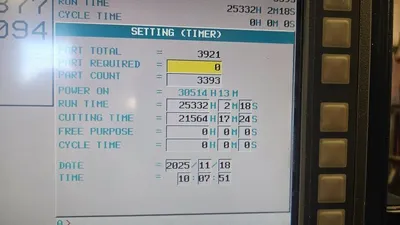

Run hours 25332 Cutting time: 21564
Used exclusively for aluminum vacuum molds which typically ran from 24 hours up to over 100 hours per mold.
Very little load on the machine since the finishing tool most used was a 3/64ths ball end mill.
An extensive warm up program was also used at each power up of the machine prior to running molds.
Standard warm up ran the spindle through speeds from 100 rpm to 18000 rpm in 30 minutes. This machine was never used for heavy "HOG OUT" machining.
