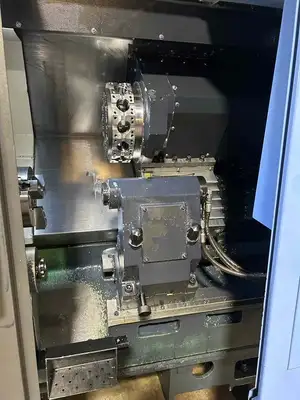

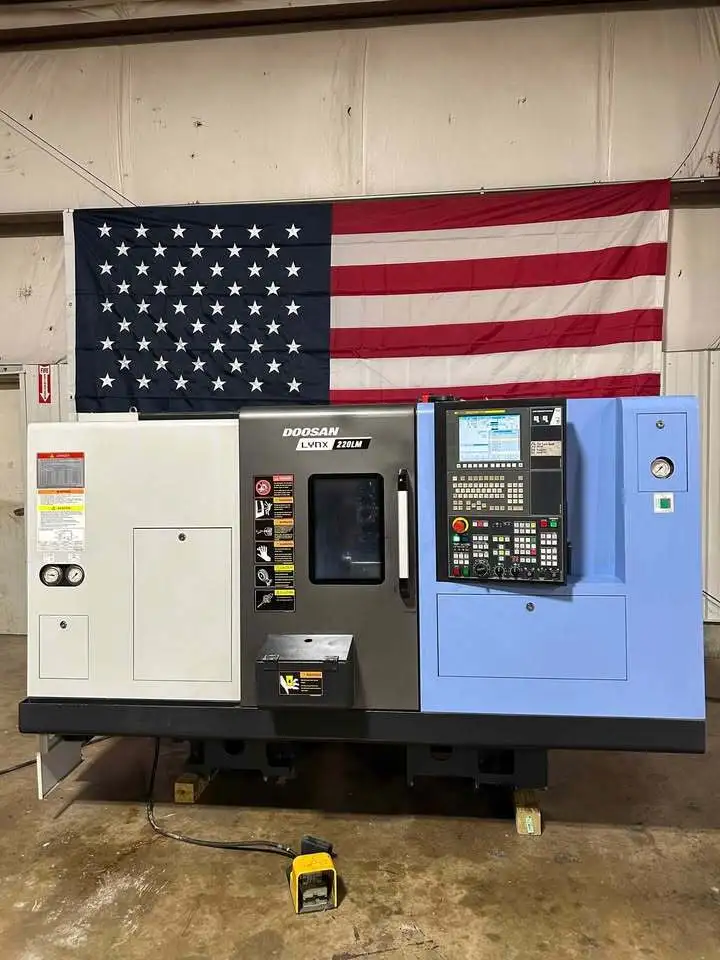

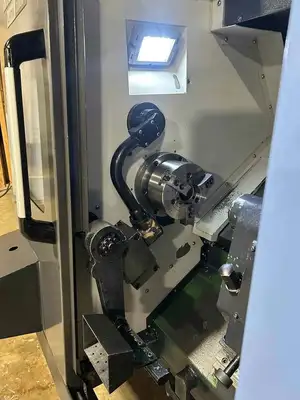

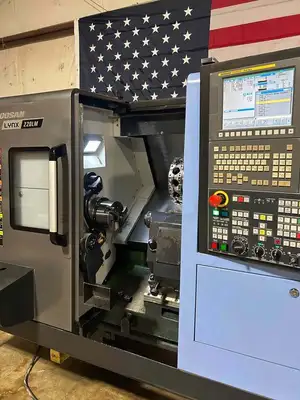

Doosan Lynx 220LMA Live Tool CNC Lathe (2016)

Doosan Lynx 220LMA Live Tool CNC Lathe (2016)

*** Built New in (2015)

Swing Over Bed (in) 20.1
Swing Over Saddle (in) 11.4
Max. Turning Dia. (in) 9.8
Max Turning Length (in) 20.1
Spindle Bore / Bar Working Dia. (in) 2.4 / 2
X-Axis Travel (in) 6.9
Z-Axis Travel (in) 21.7
Max. Spindle Speed (rpm) 6,000
Spindle Nose A2#5
Rotary Tool 12 Position
Min. Spindle Indexing Angle (C-Axis) 0.001 Degree Turret
Tailstock Quill (rpm) 6,000
Tailstock Quill Diameter (in) 2.6
Tailstock Quill Travel (in) 3.1
Main Spindle Motor (hp) 20
Rotary Tool Spindle Motor (hp) 5
Approx. Machine Dimensions (in) 103.5L x 63W x 65.2H
Approx. Machine Weight (lbs) 7,300
Power: 220v, 15 HP, 3 phase
