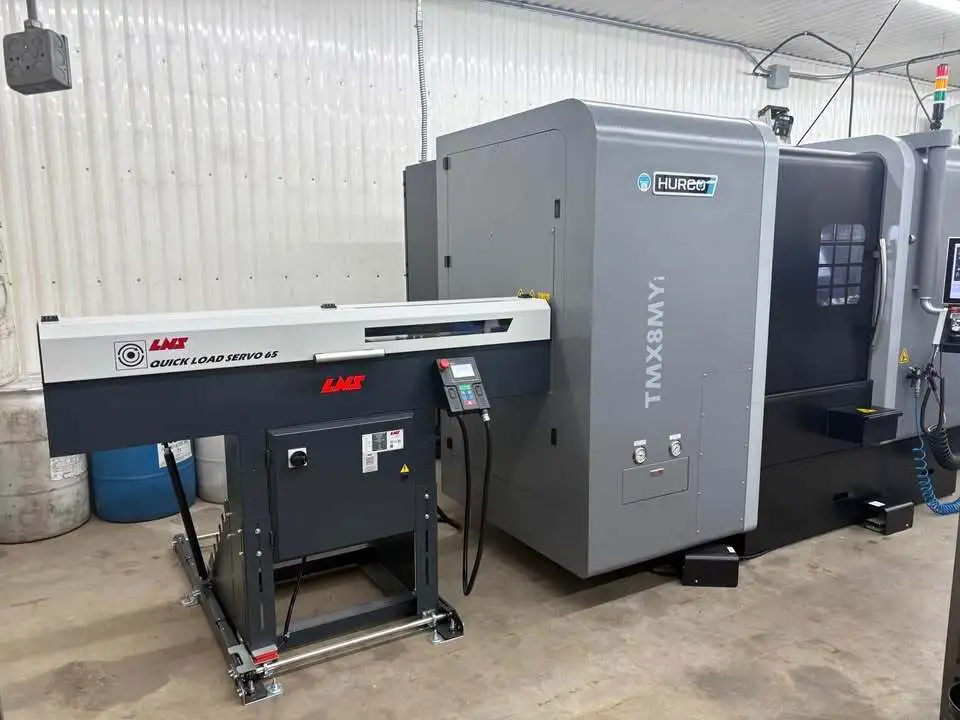

Hurco TMX8MYi Live Tool CNC Lathe (2025)

Hurco TMX8MYi Live Tool CNC Lathe (2022)

Installed New 2025
Travels
X-Axis 8.0″
Z-Axis 22″
W-Axis Tailstock / 25.2″
Y-Axis +/- 2.2″
Distance Between Centers 29.7″
Swing Over Bed 20″
Swing Over Cross Slide 20″
Max. Turning Diameter 13.2″
Max. Turning Length 20.8″

Spindle
Spindle Nose A2-6
Spindle Speed 4,500 RPM
Spindle Torque 178 ft/lbs
Spindle Motor 37.3 HP

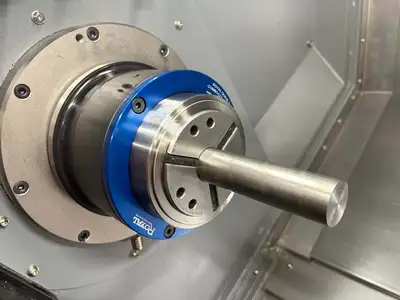

Spindle Chuck 8″
Spindle Bore Diameter 2.53″
Motion
Rapid Feed Rate (X/Z/W/Y) 945/1,181/1,181/472 ipm

Servo Tool Turret
Capacity 12 / Radial
Rotation Bi-Directional
Tool Shank 1.0″ x 1.0″
Live Tooling
HP / RPM 8.5 HP / 4,000 RPM
Requirements
Power Consumption 53 KVA
Machine Net Weight 14,520 lbs
Operating Dimensions with Conveyor 209.9” x 124.4” x 100.5”
