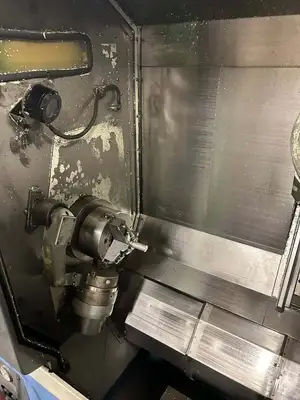

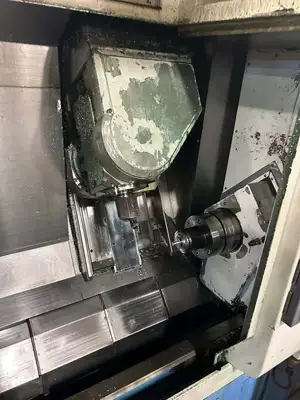

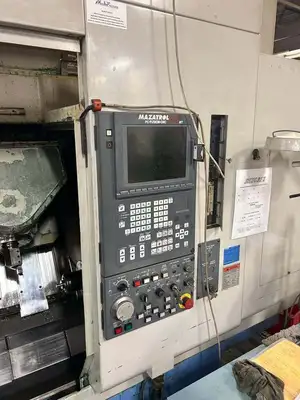

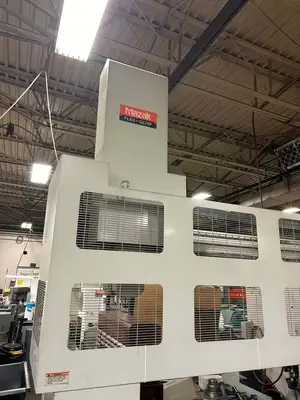

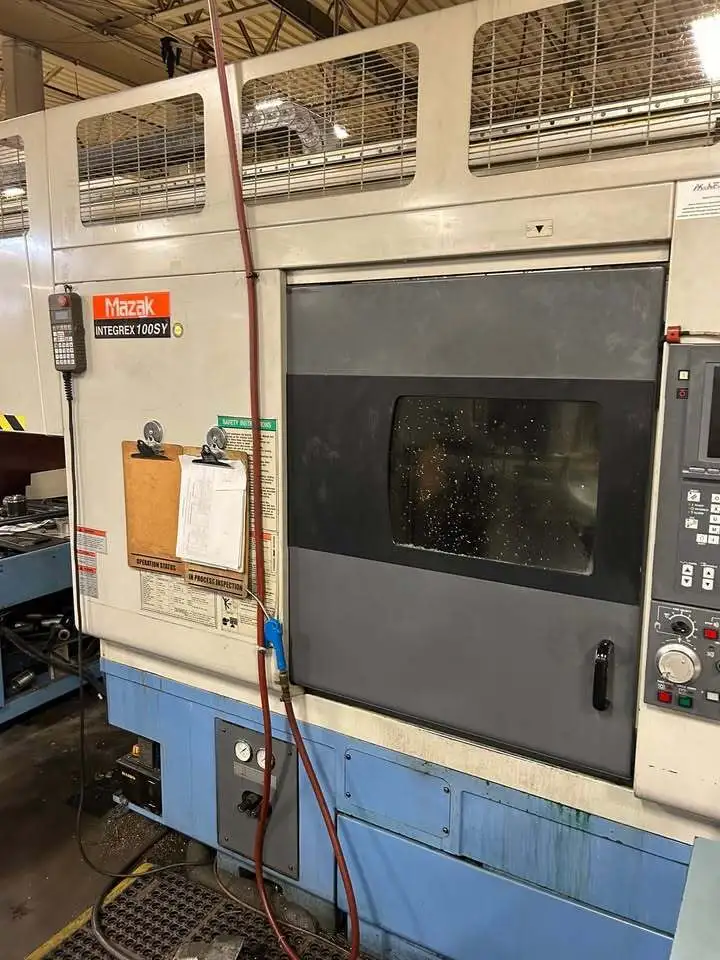

Mazak Integrex 100SY CNC Lathe with Gantry Loader

Max Turning Diameter: 21.45″
Max Turning Length: 29.65″
Max Swing: 21.45″
Bar Capacity: 1.65″
Main Spindle: Collect Chuck
Sub Spindle Size: 6″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP

X-Axis Travel: 16.14″
Z-Axis Travel: 31.69″
Y-Axis Travel: 5.51″
W-Axis Travel (Sub-Spindle): 31.3″
C-Axis Indexing
X/Z- Axis Rapid Rate: 1,181 IPM

Milling Spindle: 10,000 RPM
Auto Too Changer: 20 positions
Second chuck size: 6″
Spindle motor: 7.5HP
Spindle nose: A2-5
Second spindle motor: 6,000 RPM
Second spindle nose: A2-5

Approx. Dimensions (l x w x h): 121″ x 84″ x 97″
Approx. Weight: 10,500 Lbs.
