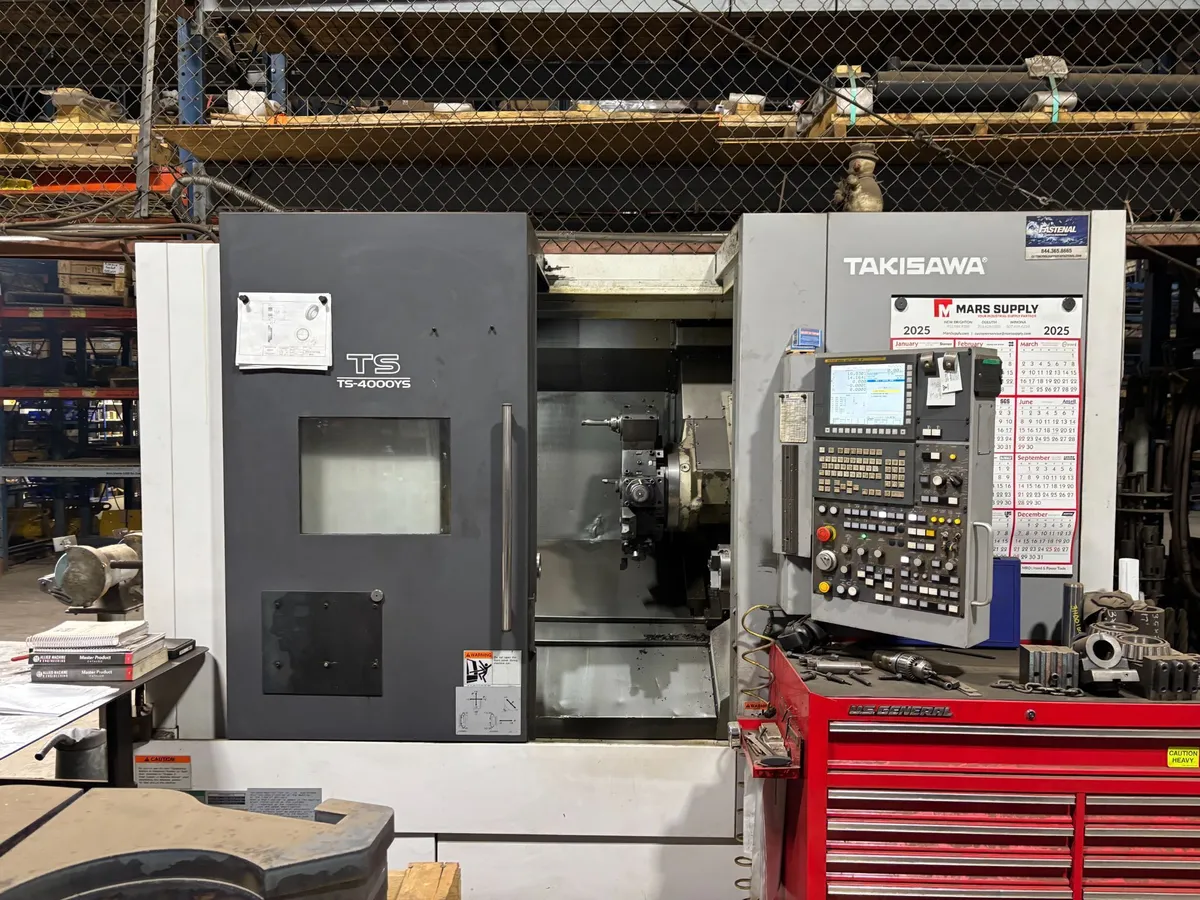

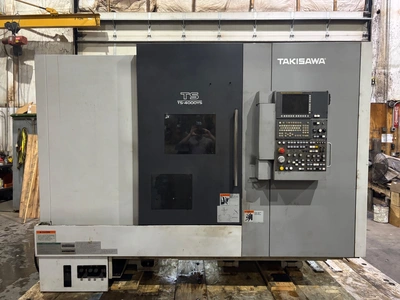

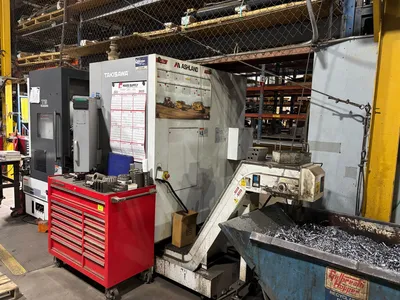

Takisawa TS-4000YS Live Tool CNC Lathe (2019)

Takisawa TS-4000YS Live Tool CNC Lathe (2019)

Capacity:
Max Swing Over Bed: 23.62″
Max Turning Diameter: 14.57″
Max Turning Length: 29.53″
Max Bar Capacity: 3.23″
Travels:
X Axis Travel: 10.51″
Y Axis Travel: -1.97″ ～ +2.76″
Z Axis Travel: 33.07″
A Axis Travel (Sub Spindle): 30.71″
C Axis Indexing: 360 Degree (0.001)
Rapid Traverse Rate X, Z & A Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 393 IPM

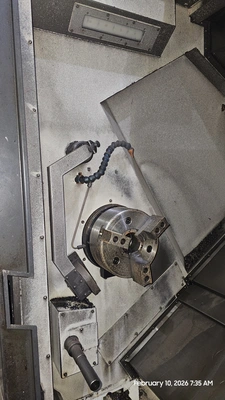

Main Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.70″
Main Spindle Speed: 4200 RPM
Man Spindle Motor: 30 HP
Sub Spindle:
Sub Spindle Nose: F140
Sub Spindle Bore: 2.09″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 15 HP

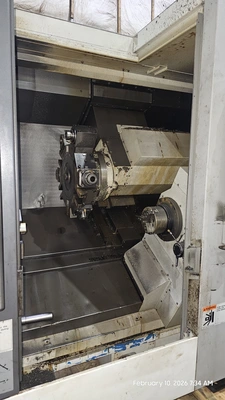

Turret:
Turret Capacity: 12 Stations
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 10 HP
Tool Holders Type: All Type
General:
Power Source: AC 220 V Three Phase 50/60 Hz
Power Requirement: 33 kva
Overall Dimensions: 118″ x 85″ x 90″ High Approx.
Weight : 14,740 lbs Approx.
