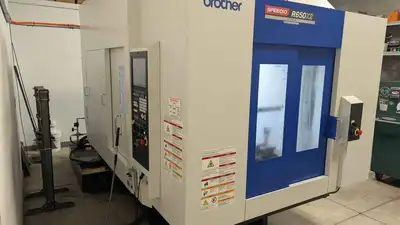

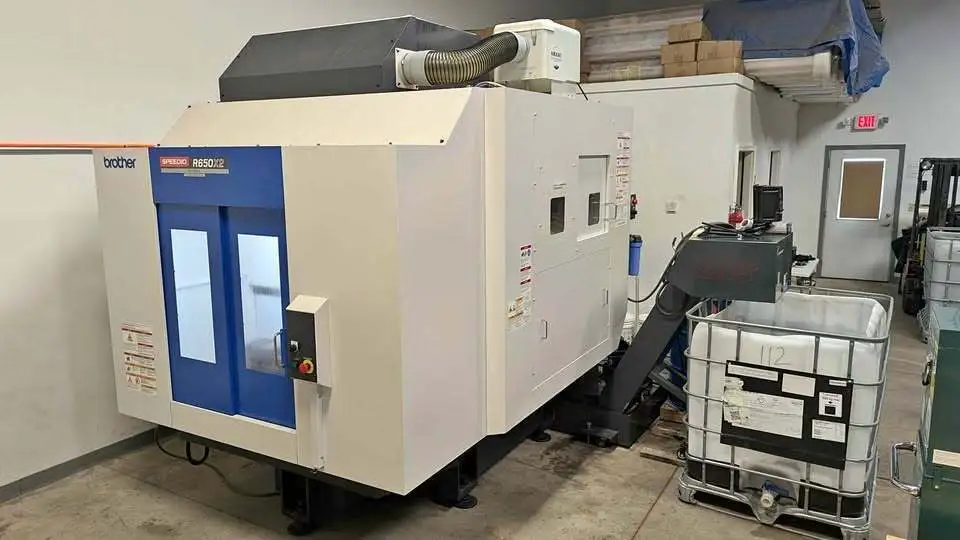

Brother Speedio R650X2 CNC Drilling & Tapping Center (2021)

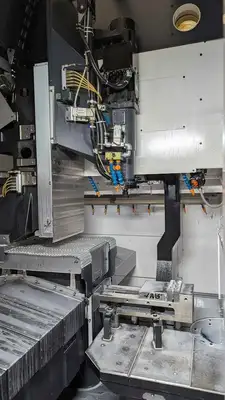

Brother Speedio R650X2 (Quick Turn Table) CNC Vertical Machining Center (2021)

Specifications (subject to buyer verification):
Turn Table Specs
Type 0 deg./180 deg. turntable system
Table dimension 31.5” x 21.1” (one face)
Max. turning diameter [mm (inch)] 51.2”
Max. jig height [mm (inch)] 16.5”
Table work area size [mm (inch)] 31.5” x 15.7” (one face)
Table Position Time 3.4 sec
Machine Specs
Travels
X axis 25.6”
Y axis 15.7”
Z axis 12.0”
Distance between table top and spindle nose 9.8 – 21.8”
Spindle
Spindle speed 10,000 RPM (High Torque)
Speed during tapping MAX. 6,000 RPM
Tapered hole 7/24 tapered No.30
Feed rate
Rapid traverse rate (XYZ-area) 1,969 x 1,969 x 1,969 IPM
Cutting feed rate X,Y,Z axis ：0.04 – 1,181 IPM

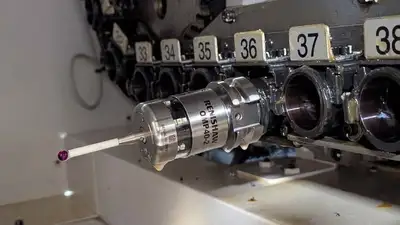

ATC unit
Tool shank type MAS-BT30 Big Plus
Pull stad type MAS.P30T-2

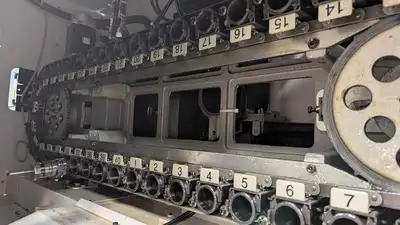

Tool storage capacity [pcs.] 22
Max. tool length 7.9”
Max. tool diameter 3.1”
Tool change time
Tool To Tool [sec.]0.7/0.8 (14 tool/22 tool)
Chip To Chip [sec.]1.4/1.6 (14 tool/22 tool)
Motor
Main spindle motor (10 min/continuous) 17 HP / 12 HP (12.8 / 9.2 kW)
Machine dimensions
Height 106.1”
Required floor space (with control unit door open) 74.7 x 135.7 [152.3] “
Weight 7,716
