| size | 65" x 35" | 65" x 35" |
| X Travel | 65" | 1,651 mm |
| Y Travel | 35" | 889 mm |
| Z Travel | 26" | 660.4 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 78.616" | 1,996.8 mm |
| Table-L | 39.308" | 998.42 mm |

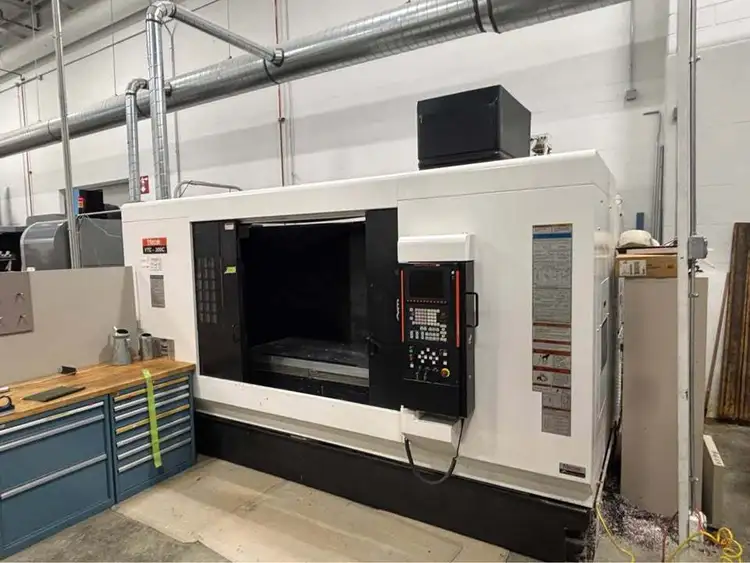

Mazak VTC300C Vertical Machining Center (2011)
Travels:
X-Axis: 65.0″
Y-Axis: 35.0″
Z-Axis: 36.0″
Spindle Nose to Table (Min.- Max.): 7.09″ – 33.07″
Spindle Nose to Column: 33.86″

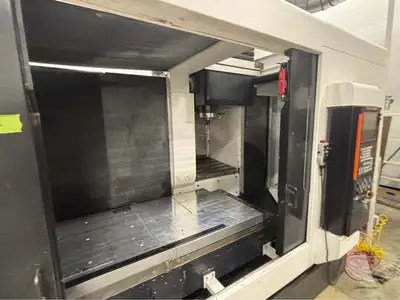

Table:
Length: 78″
Width: 30″
Max Weight on Table: 3300 lbs
T-Slot no. & Width: 5 X 0.7″

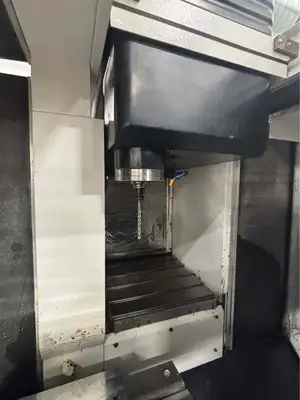

Spindle:
Taper Size: 40
Speed Range: 60 – 10,000 RPM
Spindle Acceleration Time: 0-10K RPM in 1.8 Second
Spindle Power: 25 HP
Feed rates:
Rapid X,Y & Z: 1181 inch/P.M
Cutting Feedrate: 315″ inch/ P.M

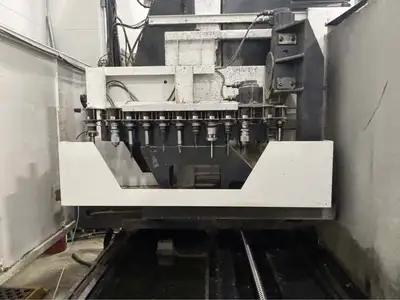

Automatic Tool Changer:
40 Taper
Capacity: 24
Max Tool Weight: 18 lbs
Max Tool Length: 13.8″
Tool Change Time: 1.5 sec
General:
Air Required: 90 psi, 4 scfm
Power: 205-220v / 50kva / 3-Phase
Overall Dimensions: 211″ x 137″ x 126″ High
Weight: 25000 lbs
Only Cut Plastic, Product Development Lab.
Very clean, Well Maintained 4500 hours
