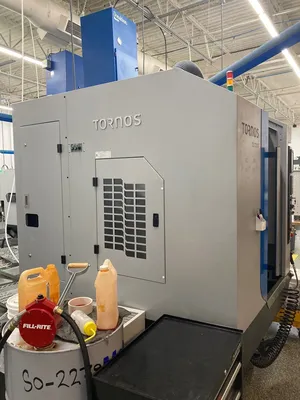

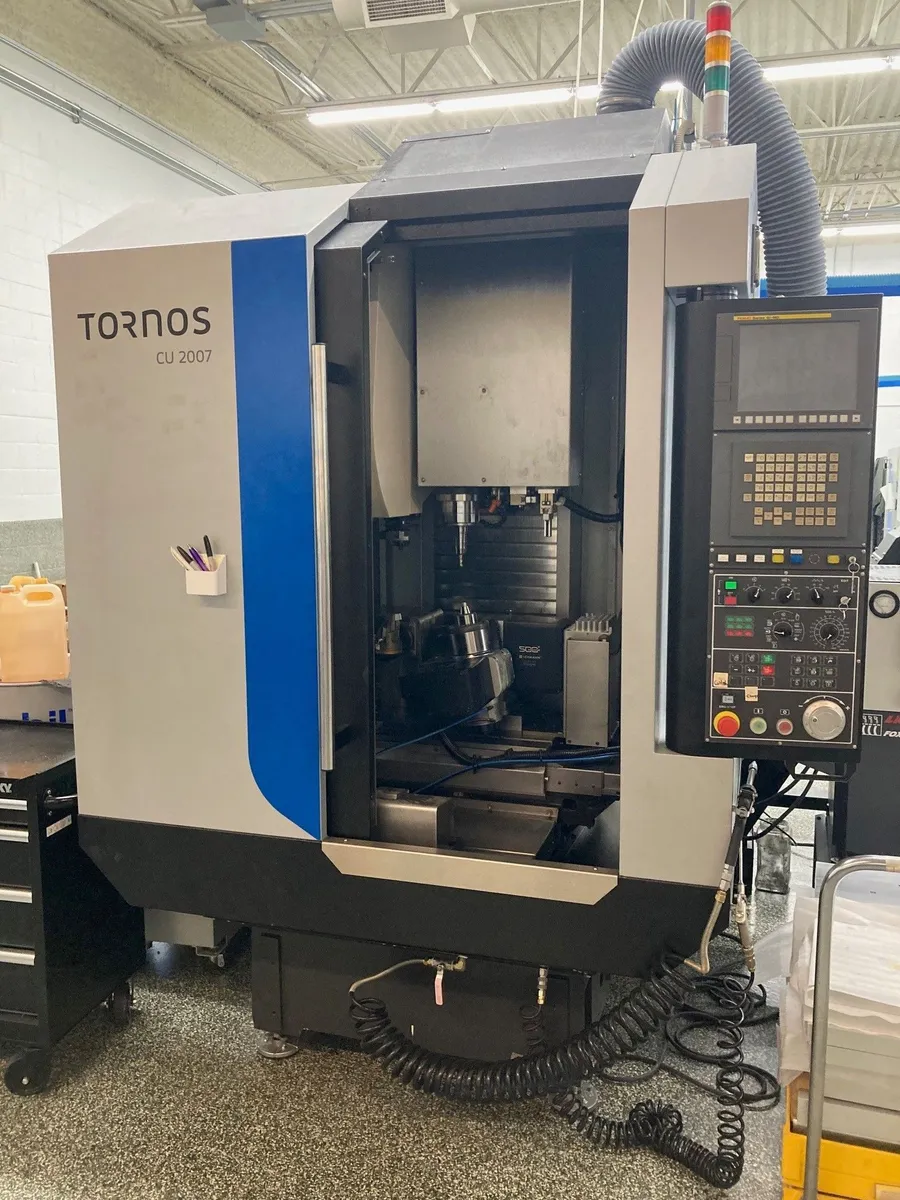

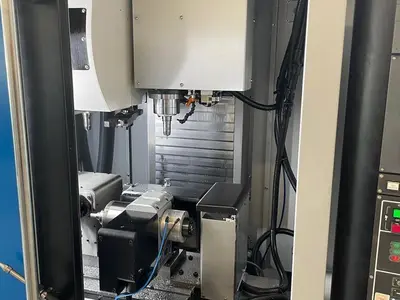

Tornos Almac CU 2007 7-Axis CNC Vertical Machining Center (2019)
Have one to sell?
ConditionUsed
1 available
5 Axis
Tornos Almac CU 2007 5-Axis CNC Vertical Machining Center (2019)
Manufacturer: TornosModel: Almac CU 2007

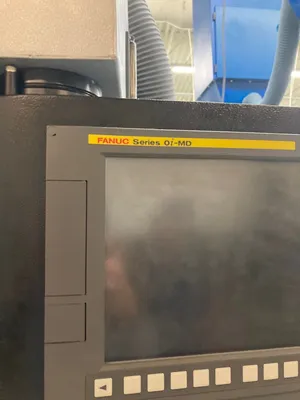

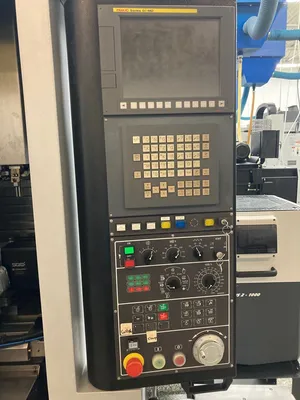

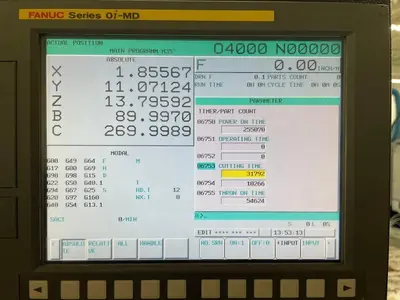

Machine Control: Fanuc Oi Md Cnc Control
Table Size: 650 X 400mm
Machine Travels (X/Y/Z): 500 X 400 X 470mm
Spindle To Table Distance: 150 - 620mm
Table Capacity: 250 Kg

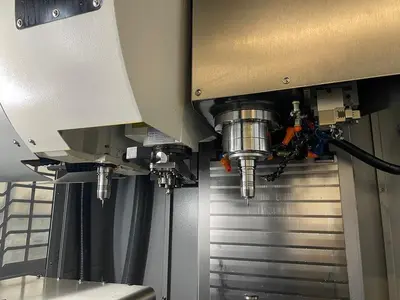

Spindle Taper: Hsk E40
Spindle Speeds: 20,000 Rpm Max Spindle Speed
Rapid Traverse Rate (X/Y/Z): 60 M/Min (Acceleration 1g)
Tool Changer Style: Twin-Arm

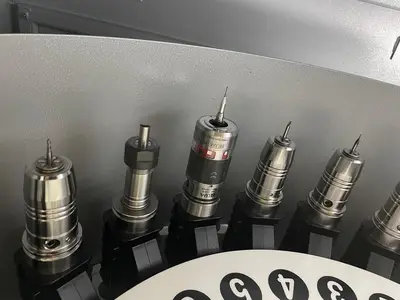

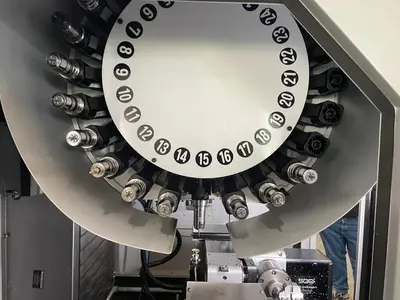

Tool Changer Capacity: 24 Station Automatic Tool Changer
Tool Change Time: .8 Seconds Tool To Tool
Max Tool Length: 200mm
Max Tool Diameter: 60 Mm / 110 Mm W Empty Adjacent Pockets
Max Tool Weight: 3kg
Spindle Drive: 2.5 Kw

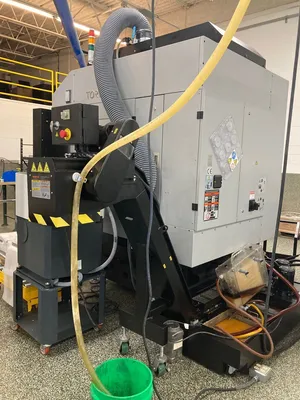

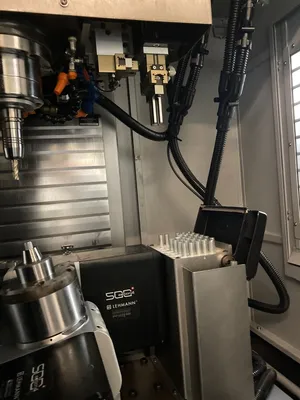

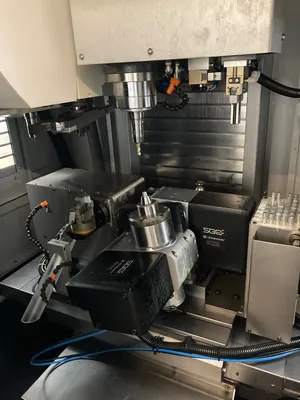

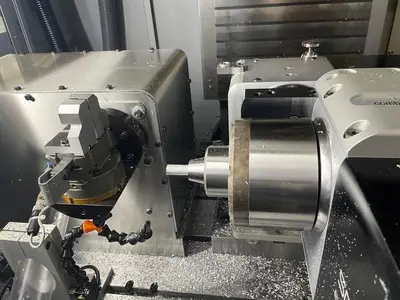

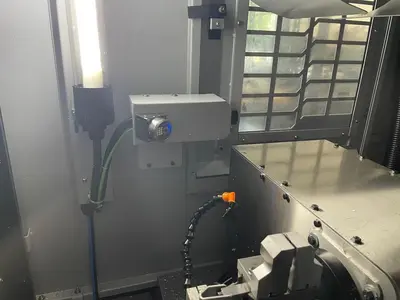

Part Loading and Parts Catcher System, Probing, 20K Spindle, Lehman 2-Axis Rotary Table, Back Operation Tilting Rotary Vise, Fanuc 0iMB CNC Control, 7-Axis CNC Controls, Lehmann TF-510510 2- Axis Tilting Rotary Table, Back-Working Vise with Programmable Rotary-Axis and Tilt, Parts Loading and Parts Catcher, Pneumatic Part Clamping, 20,000 RPM Max Spindle Speed, HSK-E40 Spindle Taper, 24 Station Twin-Arm Automatic Tool Changer, Spindle Chiller, Chip Conveyor, Rigid Tapping, LNS Fox WS2 Mist Collector, AI Countour II, Tool Management, Blum Z-MT Tool Measurement Probe, Parts Probe, Coolant System, Manuals
