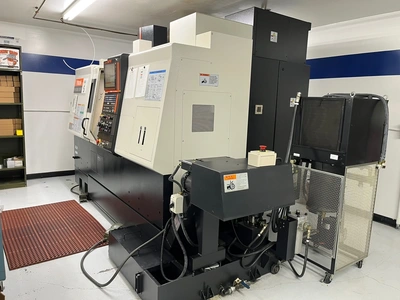

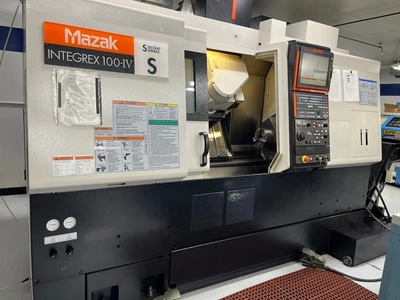

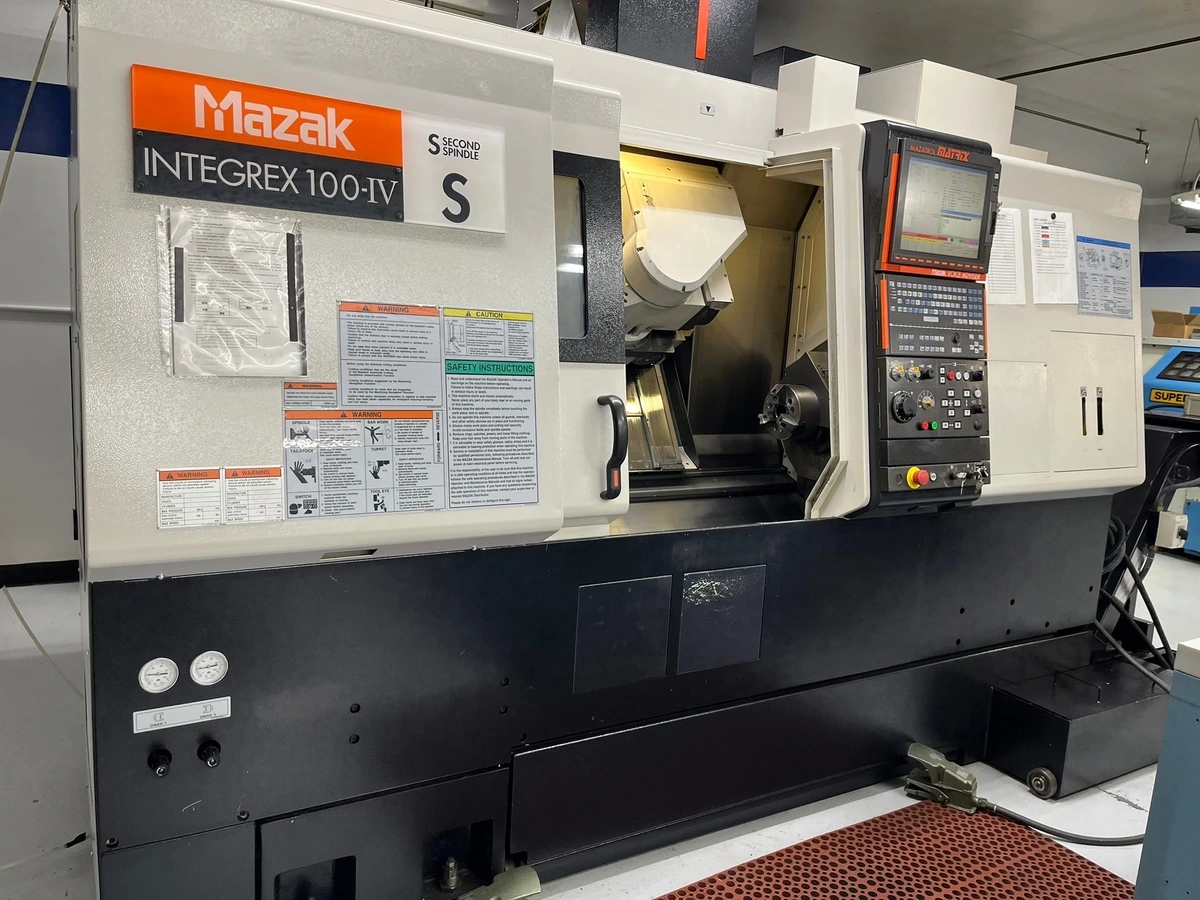

Mazak Integrex 100-IVS Live Tool CNC Lathe with Subspindle (2005)
Have one to sell?
ConditionUsed
1 available
Mazak Integrex 100-IVS Live Tool CNC Lathe with Subspindle (2005)
12,000 RPM, 7.5 hp, 36.2 ft-lbs Milling Spinle
40 Tool Magazine
Y Axis +/- 2.75"
X Axis 16.14
Z Axis 31.69
W Axis 31.3
B Axis 225°
Machine Size 119" long x 85" wide x 96" tall
Machine Weight 16,300 lbs
Power Required is 32.9 KVA (Machine is wired for 240v 3 phase)
Machine has 400v transformer installed
Air Required is 72 psi / 25 CFM

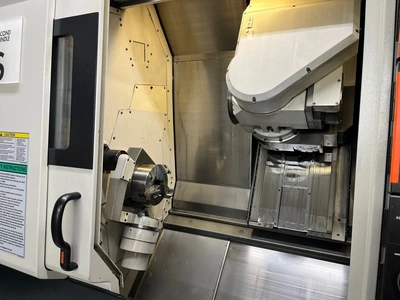

Primary & Secondary Spindles both have Kitigawa B206 chucks
Distance between chuck faces is 31.18"
Primary & Secondary Spindles both have C Axis capability
The control resolution is .00001" for linear axis and .0001° for angular axis

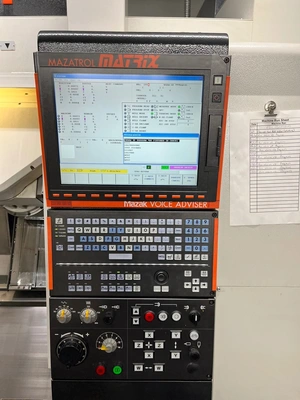

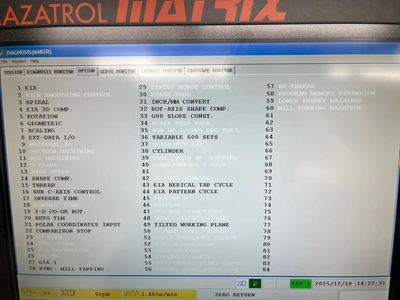

- Mazatrol Matrix Control - 15" Color LCD
- EIA/ISO Code Input Function (Standard)
- Goo Slope Constant
- Shape Compensation For Rotary Axes
- Cylindrical (G07)&Polar Coordinate(G12)
- Milling Spindle Synchronous Tapping
- Inch/Metric Conversion
- Cardbus I/F (2-Slot)
- LAN Port
- USB I/F
- Y-Axis Control
- KM Standard Tooling Package
- Coolant Through Milling Head

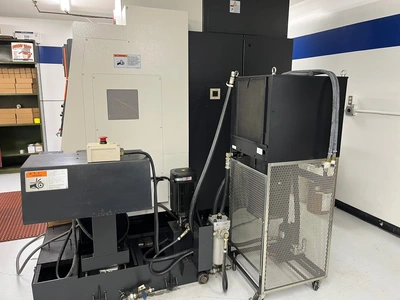

- 15KG/213PSI Thru Coolant/Flood Coolant Simul-Flowable
- 1ST Spindle Motor AC 11KW(15HP)
- 1ST Spindle Speed 6000 RPM
- C-Axis 0.0001 Degree Incr.(1ST Spindle)
- Second Spindle Motor AC 11KW(15HP)
- Second Spindle Speed 6000 RPM
- Delete Std. Chuck & Cylinder (1ST SPD.)
- 6" Chuck B-206 For Second Spindle (Non-Thru Cylinder)

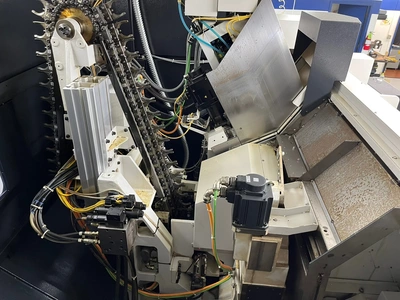

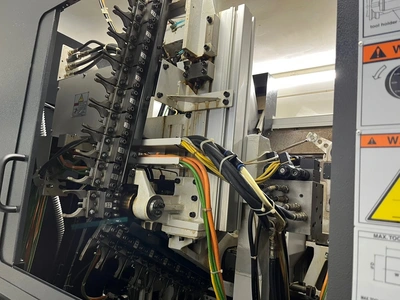

- 40 KM-Tool Magazine
- Rotary-Tool Spindle Speed 12000 RPM
- B-Axis Index 5 Degree (Coupling Clamp)
- Chip Conveyor Side Disposal (Hinge Type)
- Tool Eye (Automatic)
