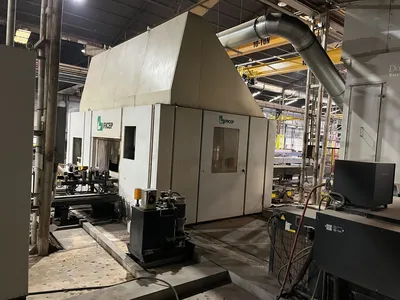

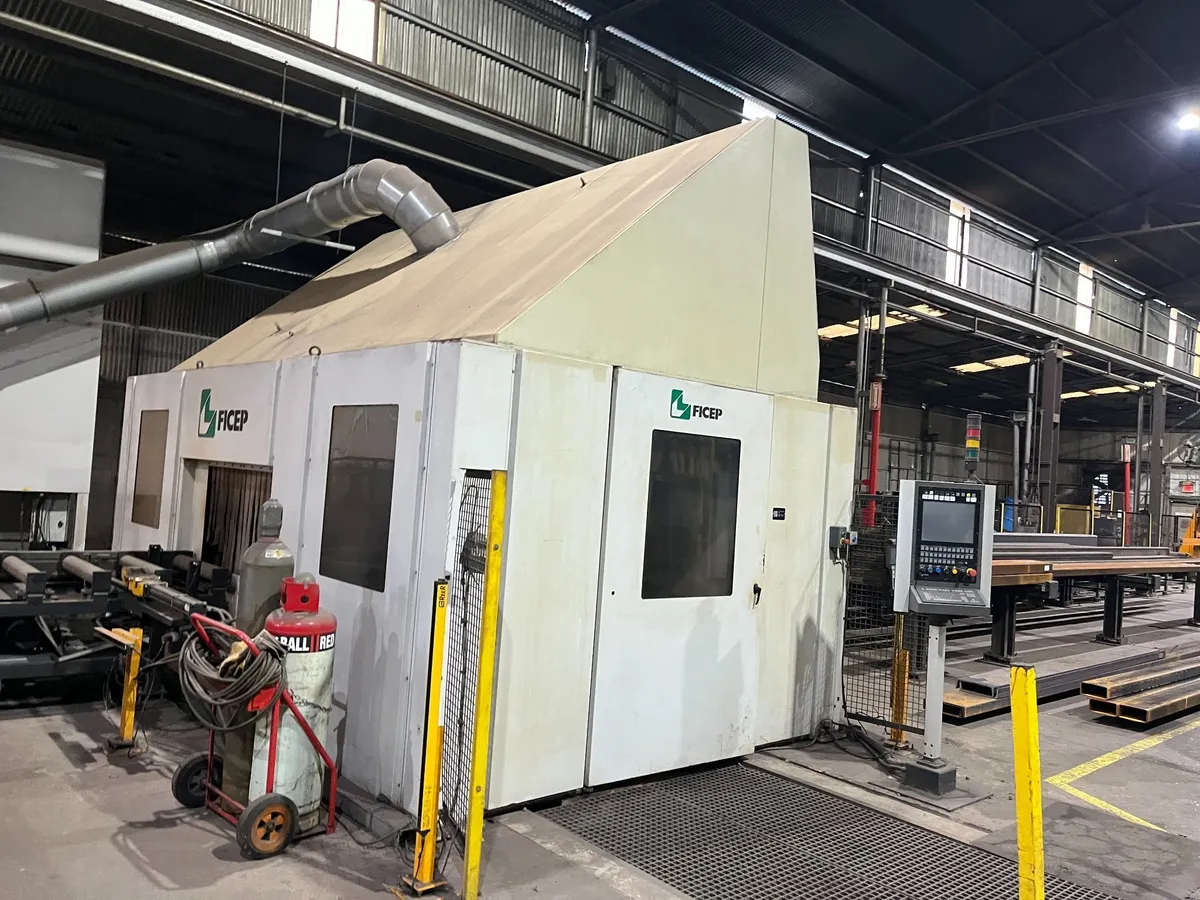

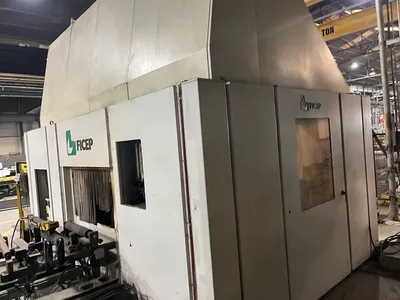

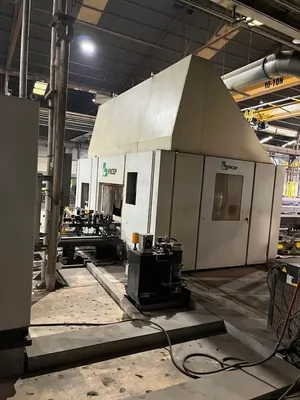

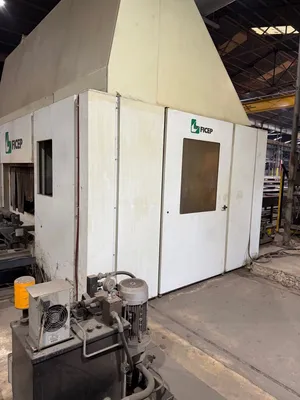

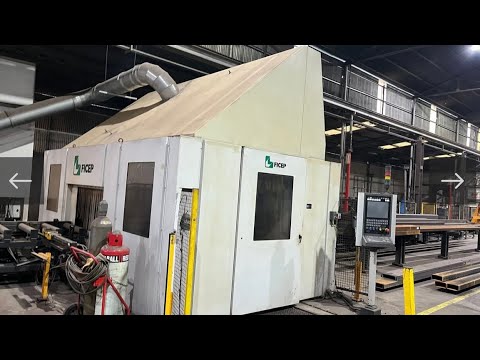

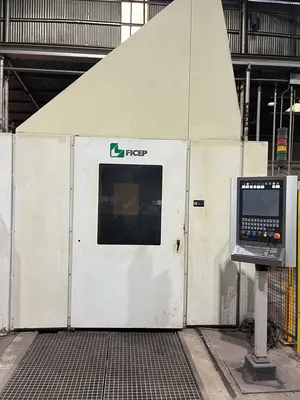

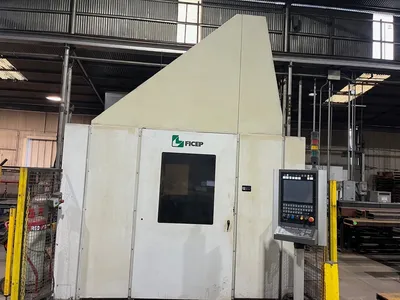

Ficep RAZ 601 Structural Steel Beam Coping System (2019)

Ficep RAZ 601 Structural Steel Beam Coping System (2019)

Makes easy work of:

Bolt holes
Copes
Blocks
Cut off
And numerous other complex routines
Unique Features:

Laser scanning of the entire profile to be cut in seconds eliminates the need to probe at the start of each hole or cut
The 9 axis system has the ability to process all four sides of a structural tube as standard
The 9 axis capability of the robot also gives full beveling on both the flanges and the web
Automatic rotation of mitered parts in a nest to achieve common line cutting of miters
Comprehensive 3-D nesting software that combines the cut on the trailing end of one part with the cut on the leading end of the next section in a mult. This eliminates the number of starts and stops to extend consumable life and reduces cut time to the minimum
3-D Simulation available
Tandem Drill and Robotic Coping Systems
Requires less than half the space of a conventional split system
Smaller capital investment
Single operator
The drill operator no longer waits for the coper operator or vice versa
Positioning of the coper after the drill eliminates the minimum length finished part that can be off loaded on the exit side of the system
One common CNC control all of the functions of the coper and the drill automatically
Full robotic programmable motion for weld prep in both flanges and the web
Ability to cut the bottom side of square tubes
Optimized routine copes the trailing end of one section, leading end of the next section and cuts the sections to length in one optimized cycle
Low maintenance cost due to the utilization of a standard PC platform
The Ficep software eliminates the requirement for additional hardware such as third party axis control boards, PLC hardware and encoder switching boards

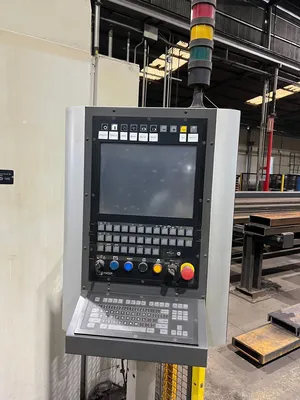

The Ficep Windows based control is provided with the proprietary Ficep software for remote diagnostics through an internet connection
Full single and compound miter cutting so the flange cuts accurately align with the web miter angle
Full integration of drilling, coping, end preparation, cut off and more
