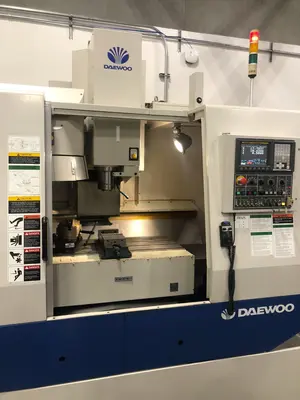

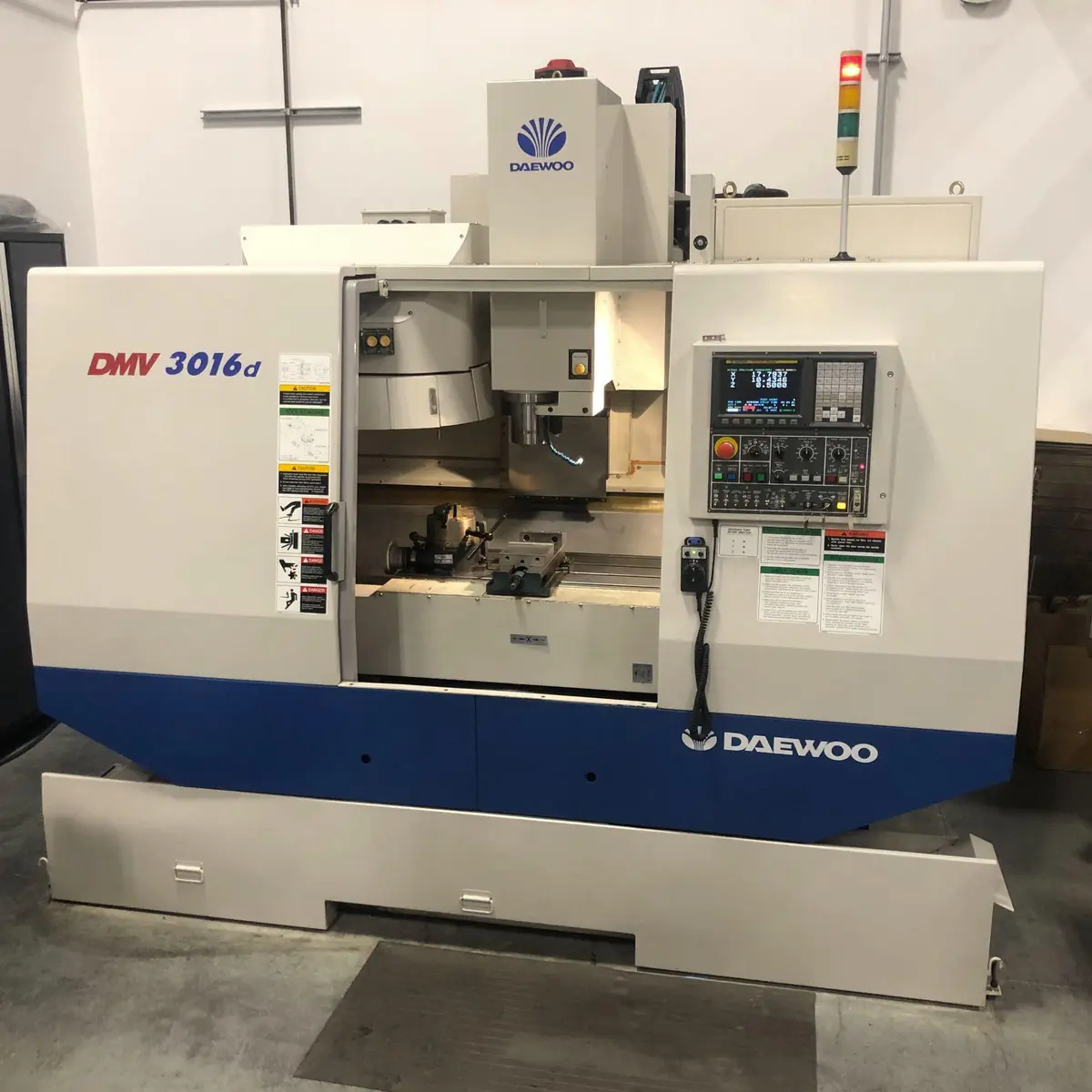

Daewoo DMV3016D Vertical Machining Center (2004)
Have one to sell?
ConditionUsed
1 available
800 hours, 32" x 16" x 20" travel, 15HP, 8,000 rpm, Fanuc control, Box Way Construction on X,Y,and Z axes
Flood Coolant, Base Coolant, Automatic Lubrication System, Rigid Tapping, Numerous Canned Cycles
Part Scaling, Rotation, Mirror Imaging, Engraving program, RS232C I/O device, Clamping Kit
Leveling Pads,
Daewoo DMV3016D Vertical Machining Center (2004)
X travel: 32.2"
Y travel: 16.14"
Z travel: 20.08
Table Size: 39.3" x 17.7"
Max. Table Load: 600kg
RPM: 8,000
HP: 15
ATC: 20 tool
Tool Standard: CAT 40
Voltage: 208V-240V
Phase: 3
Frequency: 60Hz
Power: 35KVA
Positional Accuracy: ± .005mm/full stroke
Repeatability: ± .002mm
800 hours!
32" x 16" x 20" travel
15HP, 8,000 rpm
Fanuc control
Box Way Construction on X,Y,and Z axes
Flood Coolant, Base Coolant
Automatic Lubrication System
Rigid Tapping
Numerous Canned Cycles
Part Scaling, Rotation, Mirror Imaging
Engraving program
RS232C I/O device
Clamping Kit
Leveling Pads
Specifications: X travel: 820mm
Y travel: 410mm
Z travel: 510mm
Table Size: 1000mm x 450mm
Max. Table Load: 600kg
RPM: 8,000
HP: 15
ATC: 20 tool
Tool Standard: CAT 40
Voltage: 208V-240V
Phase: 3
Frequency: 60Hz
Power: 35KVA
Positional Accuracy: ± .005mm/full stroke
Repeatability: ± .002mm
Box Way Construction on X,Y,and Z axes
Flood Coolant
Numerous Canned Cycles
Part Scaling, Rotation, Mirror Imaging
Base Coolant
Engraving program
Automatic Lubrication System
RS232C I/O device
Rigid Tapping
Clamping Kit
Leveling Pads
