Schenck HGW40B/Carb820H Carbon Fiber Balancer (2013)
Sold

Schenck HGW40B/Carb820H Carbon Fiber Balancer (2013)

BALANCERS
Manufacturer:
SCHENCK
Model:
HGW40B/Carb820H
Year:
2013
Stock #:
94643
• Wide weight range • Careful dimensioning of all machine components ensures long service life and high availability and operational safety • Special spindle bearings cover wide speed range and high centrifugal forces • Sliding spindle for a comfortable loading and unloading of the cardan shafts • The dynamometer principle for permanent calibration allows large initial unbalances and guarantees high balancing accuracy • Sophisticated safety concept

Schenck HGW40B/Carb820H Carbon Fiber Balancer (2013)

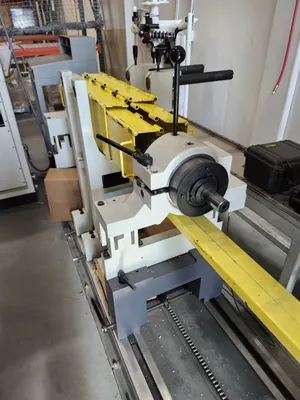

Spindle bearing (for cardan shafts)
Cardan shaft weight max. kg 1000
Balancing speed max. 100-5000 min-1
Low weight / high speed
Mean weight / mean speed • •
High weight / low speed

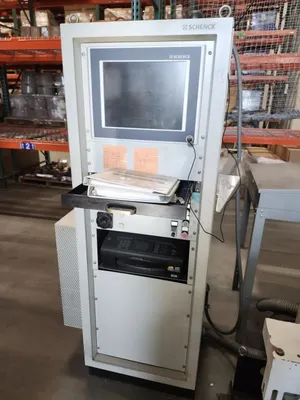

Schenck measuring unit CAB 920D
UMAR* gmm/kg 0,5 (no better than 25 gmm)
Centre line height 800mm
Rated power 7.5kW
Type of drive Belt
Supply connection 400V × 3 phase × 50/60 Hz

Adapter flanges make the use of a
variety of cardan shaft connections
possible.
1 oder 2 additional bearing pedestals
with roller bearings which can
be replaced by mounting fixtures
for joints of multiple piece cardan
shafts.

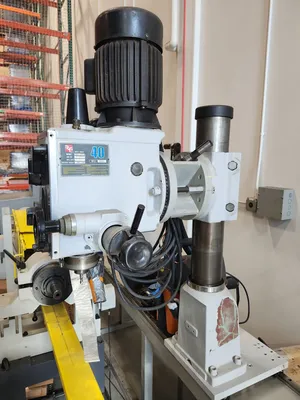

Welding and drilling can be integrated
for unbalance correction after
measuring.
