| Weight | 17,886 Lbs. | 17,886 Lbs. |
Working Length: 122″
Opening Height: 7.87″
Max Thickness Steel: 9 Gauge
Max Thickness Stainless Steel: 12 Gauge
Max Thickness Aluminum: 0.236″
Opening Height Clamping Beam: 7.8″
Motor Clamping Beam: 5.4 HP
Motor Folding Beam: 7.4 HP

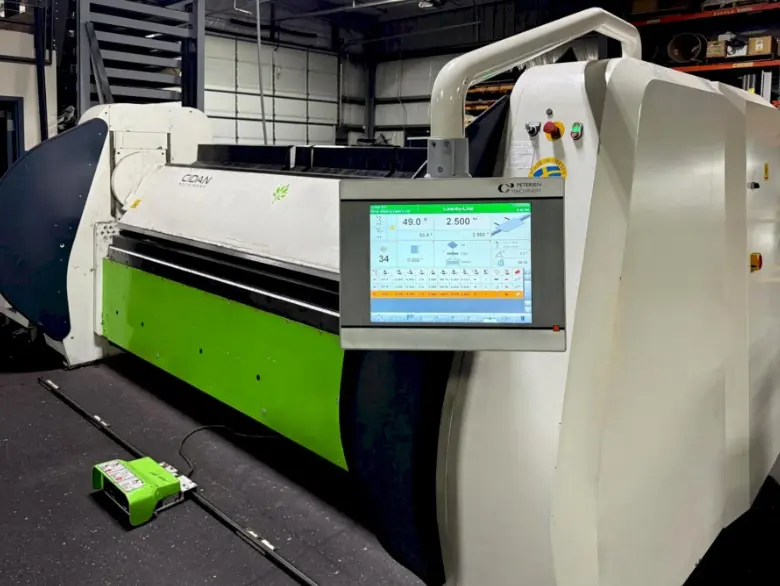

ProLink CNC Control System

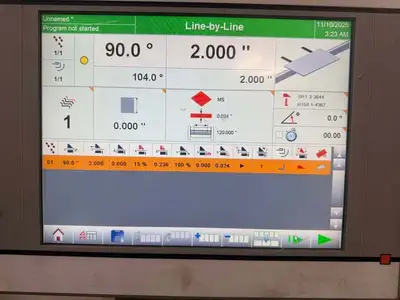

18.5” Touchscreen
Program-Controlled Sheet Thickness Adjustment
Upper Beam - Rotating Combi Beam
Upper Beam Safety Stop At .236″
Eccentric Driven Clamping System
Standard BackGauge

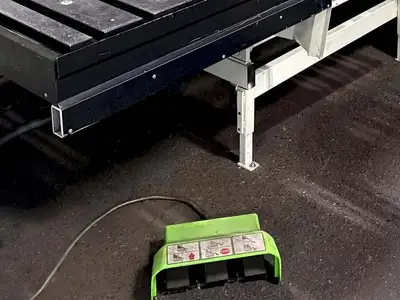

Two Foot Pedal Emergency Switches
Moveable Foot Pedal On Rail
Extra Foot Pedal (Table Side)

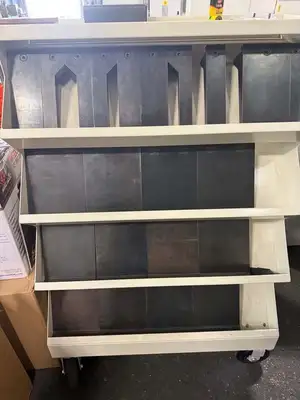

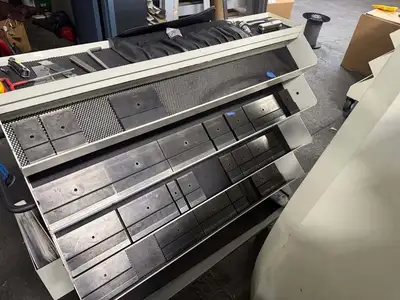

All Tooling Pictured Included
All Available Manuals & Operational Documents
