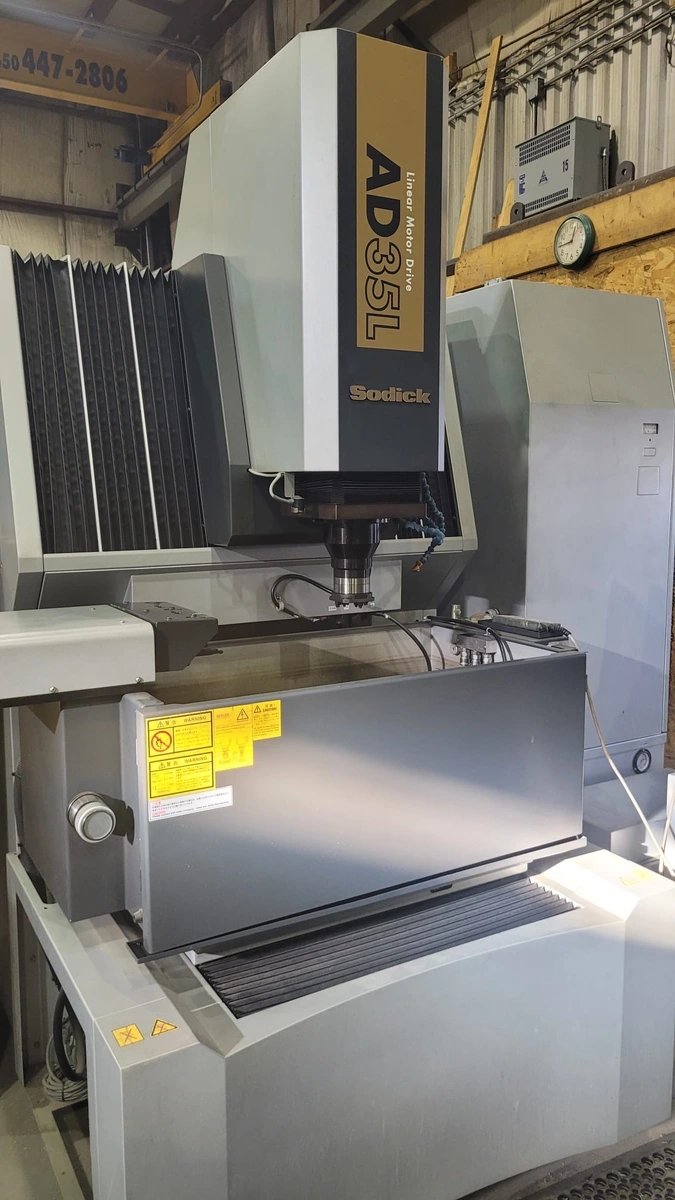

Sodick AD35L CNC Sinker Type EDM Electrical Discharge Machine (2014)

Sodick AD35L CNC Sinker Type EDM Electrical Discharge Machine (2014)

X-Axis Travel
13.78"

Y-Axis Travel
9.84"

Z-Axis Travel
10.63"

Control
Sodick LN2

Tool Changer
4 Position Shuttle

Power Source
40 AMP

Chuck
3R

Power Requirement
200-220/3/60

Worktable Size
23.62" x 15.74"

Worktank Size
38.39" x 21.85" x 13.78"

Fluid Level Min-Max
6.69" - 11.81"

Maximum Workpiece Weight
1,212 Lbs.

Maximum Electrode Weight
110 Lbs.

Work Tank Capacity
47.55 Gallons

Distance From Floor to Table Top
31.89"

Dielectric External Dimensions
32" x 67" x 80"

Machine Dimensions
75" x 77" x 93"

Machine Weight
7,200 Lbs.
