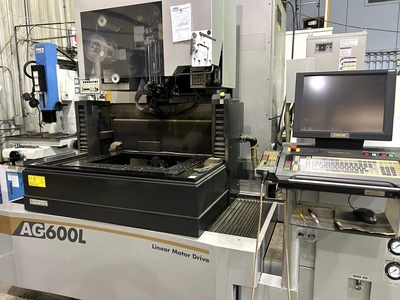

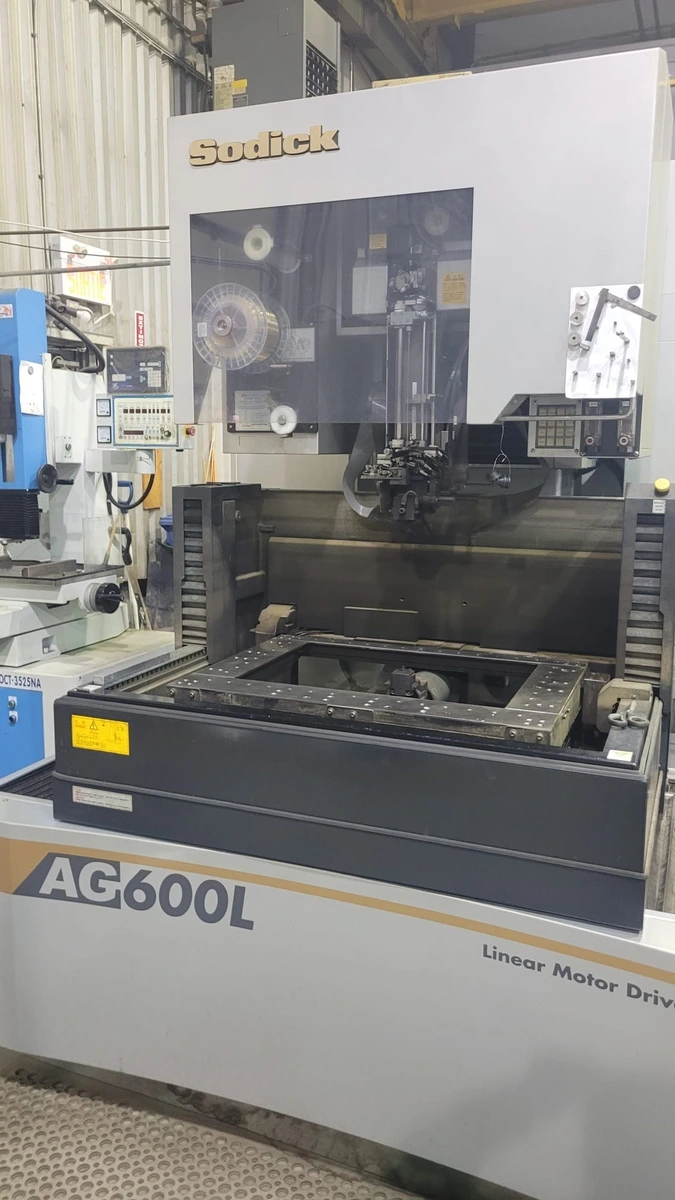

Sodick AG600L CNC Wire Type EDM Electrical Discharge Machine (2011)

Sodick AG600L CNC Wire Type EDM Electrical Discharge Machine (2011)

Inside Tank Dimensions: 41.34" x 27.59"
Travels (X,Y,Z): 15.75" x 11.81" x 9.84"
UV Travels: 4.73"
Taper Angle: +/- 25 Degree
Max Workpiece Weight: 2,240 Lbs.
Wire Diameter: .002 - .012"
Wire Speed: 16.54 Inches Per Second Max
Power Supply Amps: 40 Amps
Dielectric Fluid Capacity: 211 Gallons
Main Unit Approx Weight: 10950.00 lbs
Main Unit Dimensions (in inches): Length: 80.00" Width: 104.00" Height: 98.00"
Components:

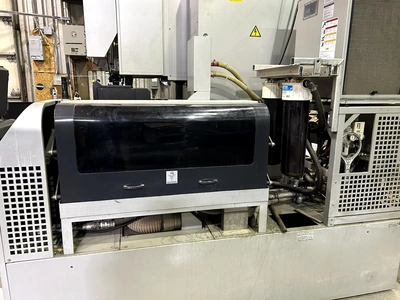

Dielectric System with Chiller: Length: 31.00" Width: 96.00" Height: 82.00"
