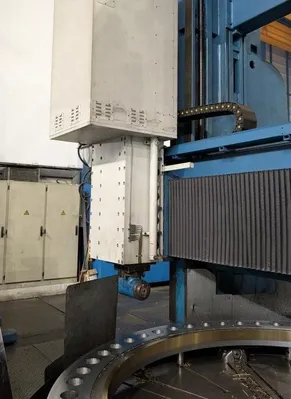

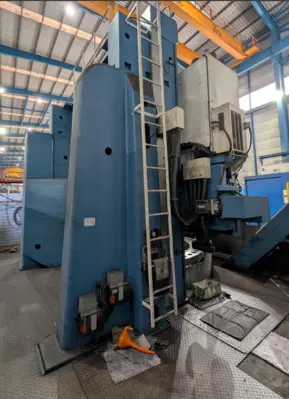

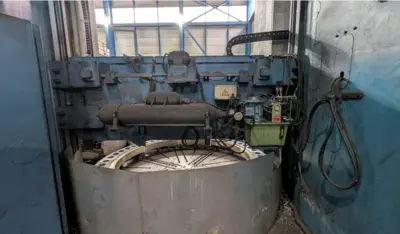

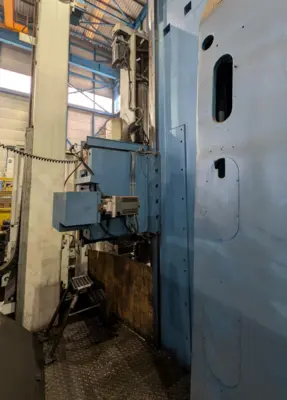

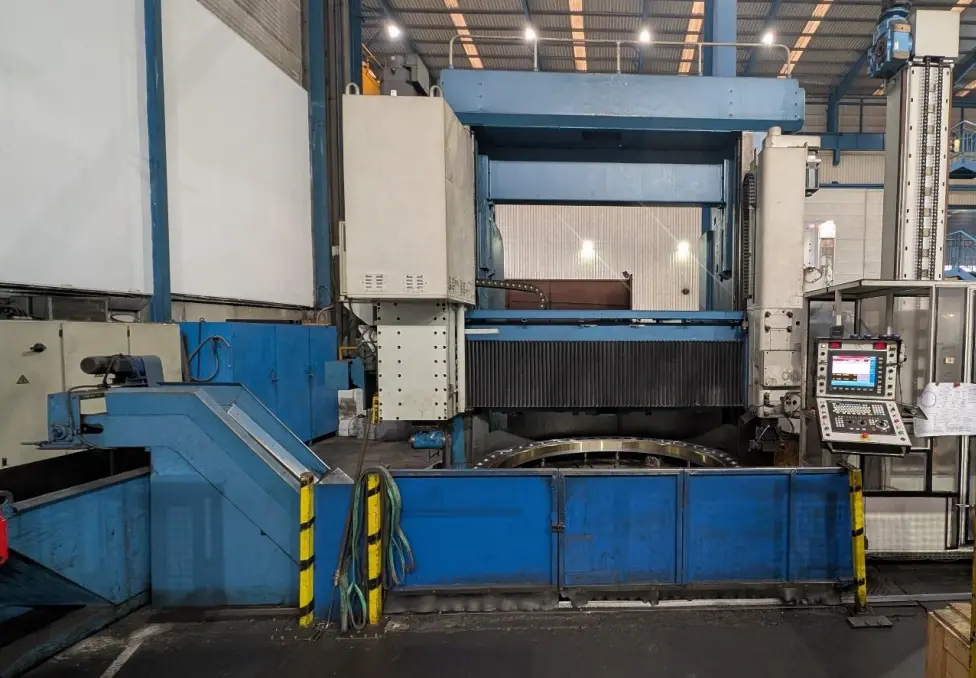

Schiess TVMF320-3000 Vertical Turning Center With Live Milling (2009)
Have one to sell?
ConditionUsed
1 available
Schiess TVMF320-3000 Vertical Turning Center With Live Milling (2009)
Model Number TVMF320-3000
Control Type: CNC FAGOR 8070
Year of Manufacture: 2009
Maximum cutting diameter 3200 mm / 125"
Maximum cutting height 3500 mm/ 137"
Maximum table load 20 Ton
C-axis 360,000
Main Motor Drive 70 kW (max.)
Live Milling Drive 16.1 kW (max.)
Total installed power 28 kW

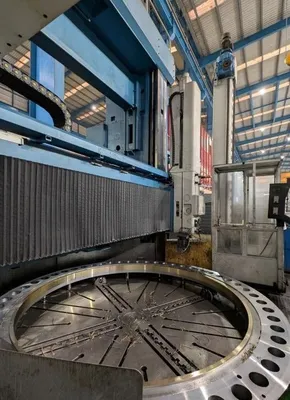

Table Diameter 2950 mm / 116"
Width between columns 3300 mm / 129"
Rapid feeds 3000 mm/min
Live Milling and Drilling

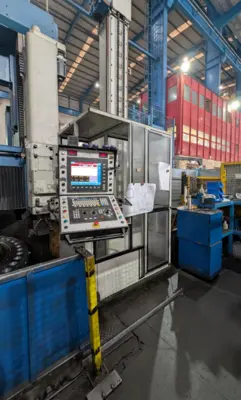

Fagor 8070 CNC Control
Chip Conveyor
