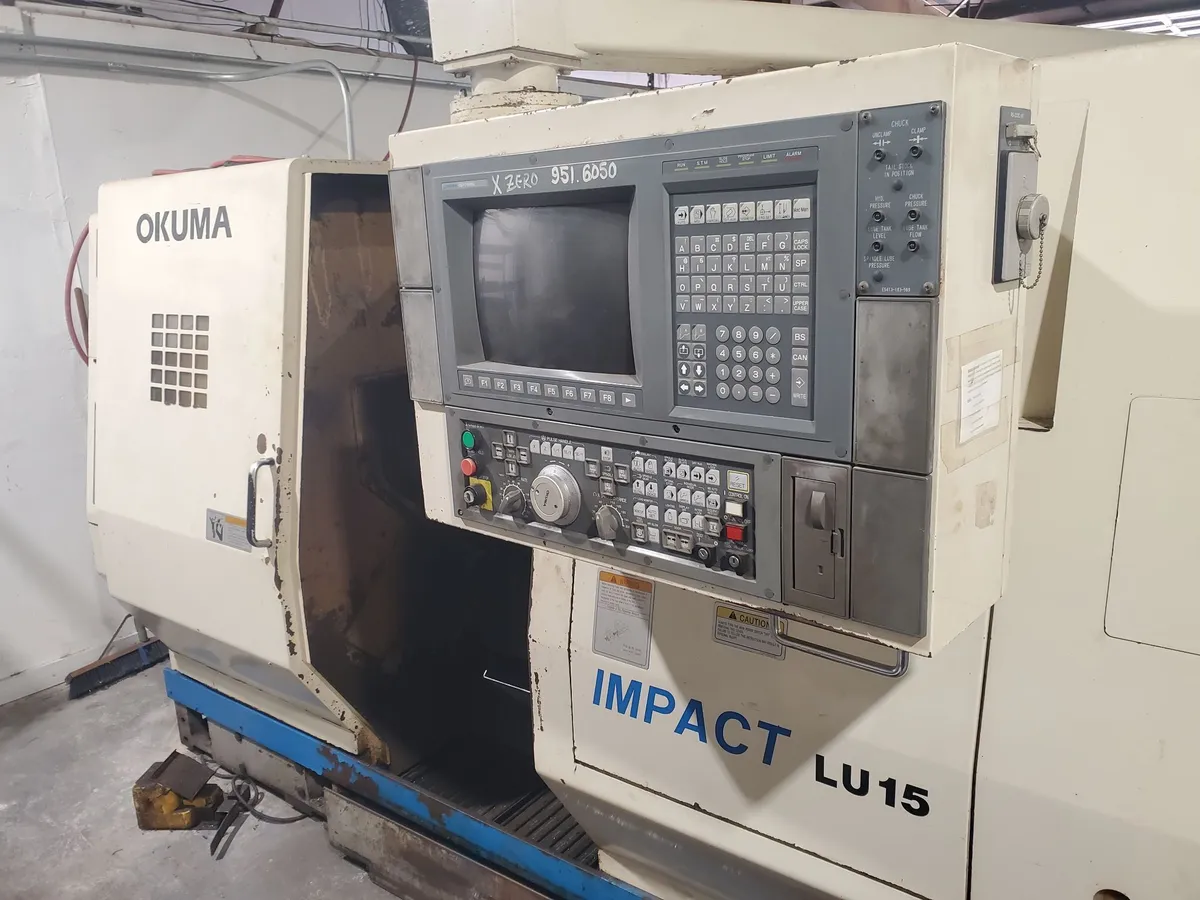

Okuma Model Impact LU15-2SC/1000 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
4 Axis
Okuma Model Impact LU15-2SC/1000 CNC Turning Center
Max. Swing: 14.96"
Max. Turning Dia: 14.17"
Max. Turning Length: 39.37"
X1/X2 Travels: 10.23/5.51"
Z1/Z2 Travels: 40.94/39.96"
Spindle Bore: 2.44"
Spindle Nose: A2-6
Spindle Speeds: 4,500 RPM
Horse Power: 30HP
Turret Positions: 12-UT/10-LT
OSP-7000L CNC Control
8" 3-Jaw Hydraulic Chuck
4 Axis
Imperial
| size | 8" Chuck |
| Swing | 22" |
| Machining Length | 23.6" |
| # Axis | 4 |
| Chuck Size | 8" |
| Bar Capacity | 2.75" |
| Power | 30 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 14.17" |
| Tailstock | No |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (OSP7000L) |
Okuma Model Impact LU15-2SC/1000 CNC Turning Center
Max. Swing: 14.96"
Max. Turning Dia: 14.17"
Max. Turning Length: 39.37"
X1/X2 Travels: 10.23/5.51"
Z1/Z2 Travels: 40.94/39.96"
Spindle Bore: 2.44"
Spindle Nose: A2-6
Spindle Speeds: 4,500 RPM
Horse Power: 30HP
Turret Positions: 12-UT/10-LT
OSP-7000L CNC Control
8" 3-Jaw Hydraulic Chuck
