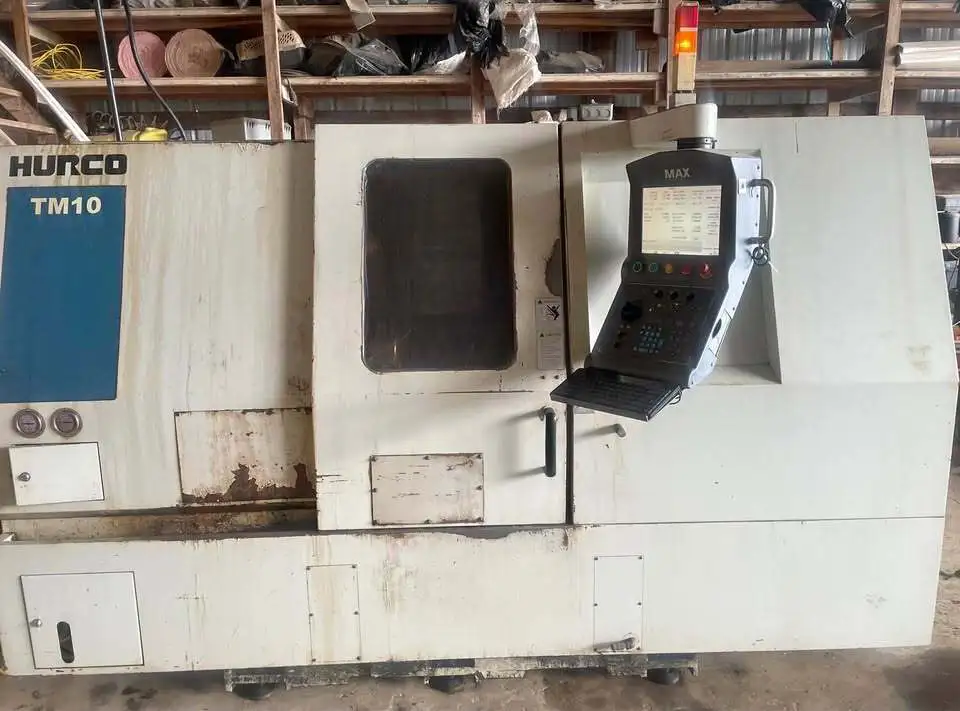

Hurco TM-10 CNC Lathe (2004)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC
Manufacturer:
HURCO
Model:
TM10
Year:
2004
Stock #:
94601
Status:
For Sale
size10" Chuck10" Chuck
Swing23.5"596.9 mm
Machining Length19.3"490.22 mm
# Axis22
Chuck Size10"254 mm
Bar Capacity2.97"75.438 mm
Power30 hp22.4 kW
Max RPM3,000 RPM3,000 RPM
Turning Dia14"355.6 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
Dimensions106″x72″x85″106″x72″x85″
Weight9,000 lbs.9,000 lbs.

Hurco TM-10 CNC Lathe (2004)

Turning Length 20″
Turning Diameter 10″
Swing 23.5″
12 Station Turret
Bar Capacity 2.99″
X-Axis Travel 9″
Z-Axis Travel 22″
Spindle Speed 3000 RPM
Spindle Motor 30 HP

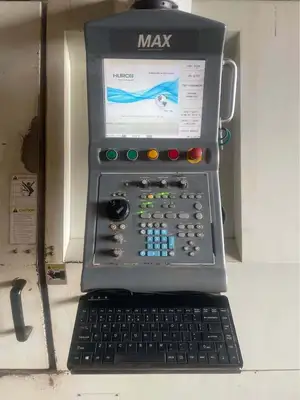

-WinMax Controller (intuitive programming)

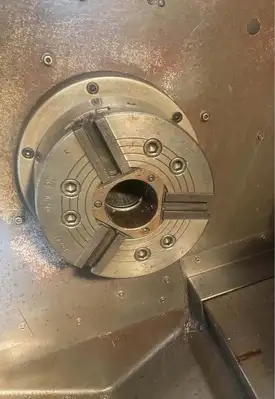

-10” Auto Strong 3 jaw hydraulic chuck
-A2-8 spindle nose
-Max RPM 3,000
-2.960” Spindle thru bore

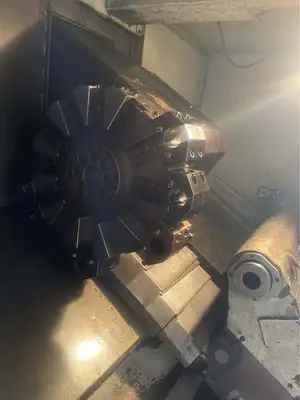

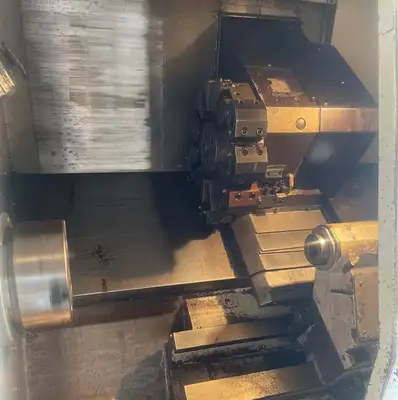

-12 station turret
-Hydraulic tailstock
-Max diameter 18”
-Max length 24”
-Air auto lube
-Chip conveyor
-Coolant tank and pump
-Rigid tapping

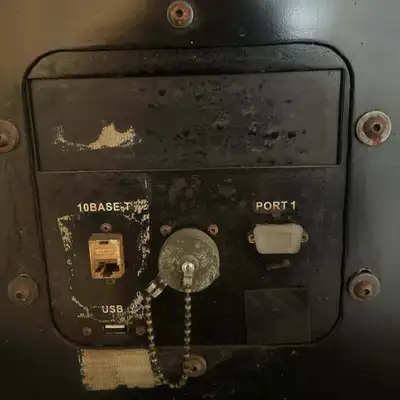

-USB port
-System updated to latest software

Dimensions: L X W X H: 113” X 74” X 73”
Weight: 9,000 lbs
