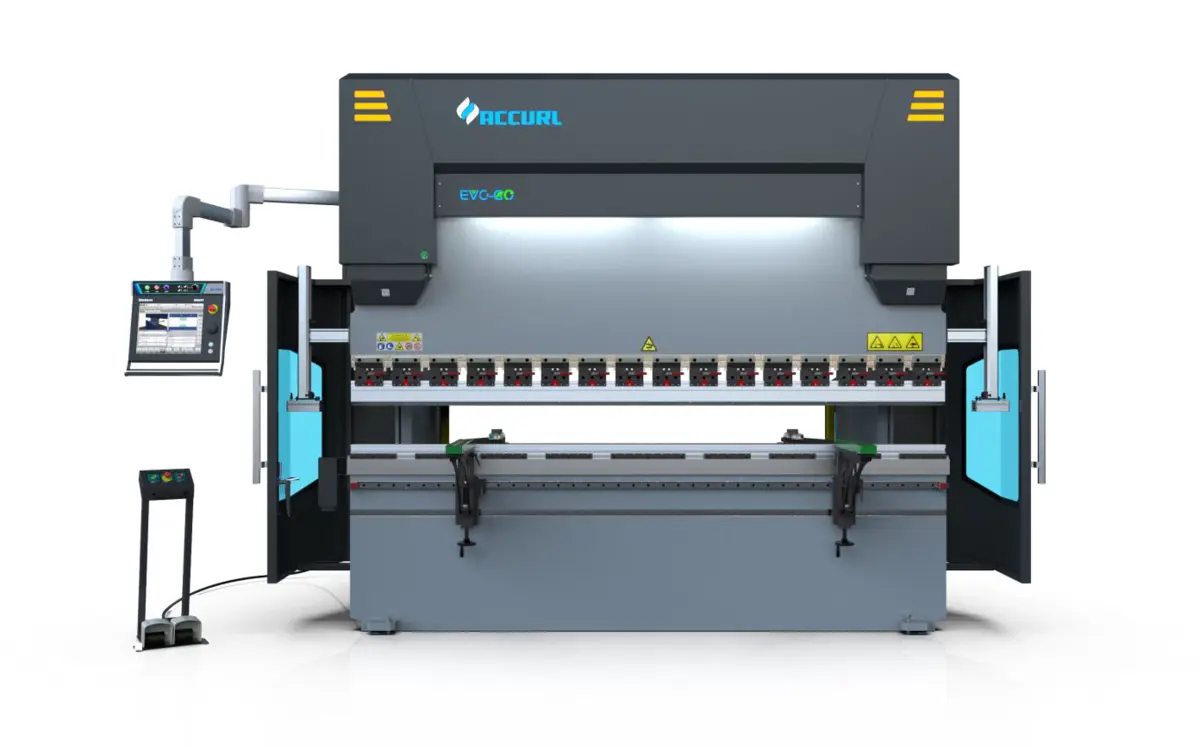

Accurl Genius PRO B40220 242 Ton 4 Axis CNC Hydraulic Press Brake (2025)
Have one to sell?
ConditionUsed
1 available
Model:
CNC Control Axis: Y1, Y2, X, R-Axis w/Crowning
Bending Force: 242 Ton
Bending Length: 159.5"
Positioning Accuracy: 0.00019"
Distance Between Columns: 129.9"
Bean Stroke: 7.87"
Daylight: 18.5"
Throat Depth: 16.14"
Table Width: 4.72"
Working Table Height: 40.35"
Working Speed:
Rapid Speed: 7.08 In./Sec
Work Speed: 0 - .59 In./Sec
Return Speed: 6.3 In./Sec
Backgauge:
Max Travel X-Axis: 39.37"
Max Travel R-Axis: 9.84"
Max Trave Z-Axis: 120"
Capacity:
Hydraulic Pressure: 275 Bar
Hybrid Servo Motor: 20 HP
Overall Dimensions: 198" x 80" x 116"
Machine Weight: 31,280 Lbs
Power Supply: AC220V - 480", 3ph, 50/60HZ
Hydraulic pressure Hybrid Servo Motor Ambient temperature range Overall dimensions Machine weight Power supply CONFIGURATION: CNC Control System Electrical components Hybrid EVO Servo System Laser Safety Protection Precision linear Servo motor/ Servo drive for Back Gauge Foot switch Hybrid System Connection Block Ball Screw/ Liner guide
DELEM DA50 Series CNC System SIEMENS/SCHNEIDER Electrical DELTA Servo Electrical Lazersafe PCSS A0 Series + LZ2 Type 4 HEIDENHAIN /GIVIDELTA Servo Motor & Driving System SIEMENSHOERBIGER Hydraulic system HOERBIGER Hybrid System HIWIN
