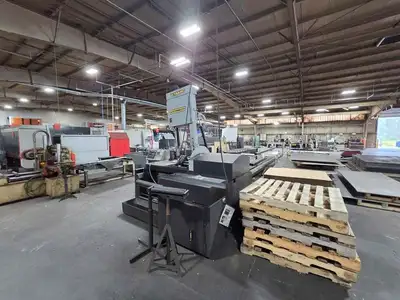

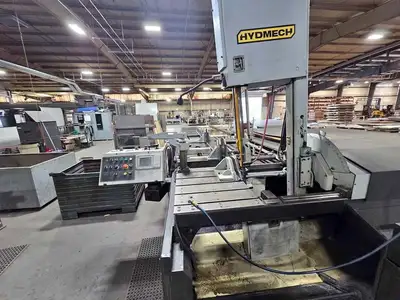

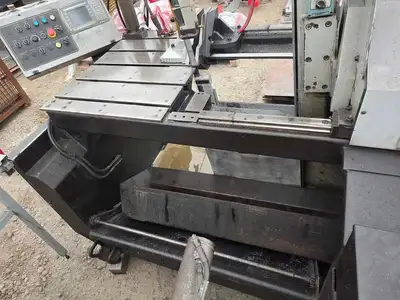

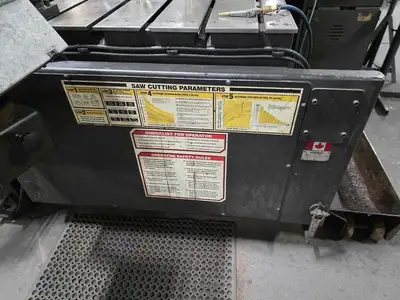

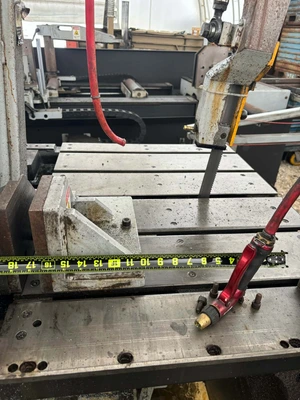

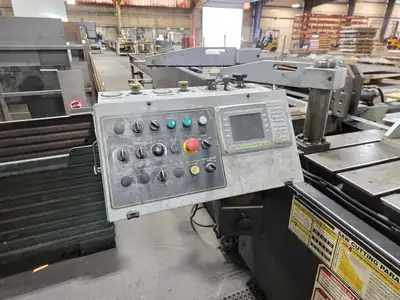

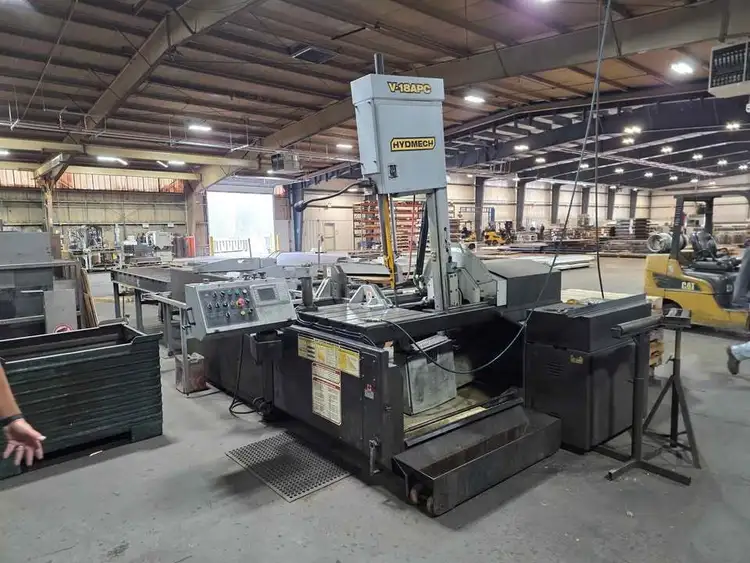

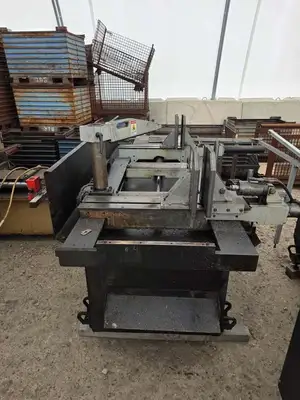

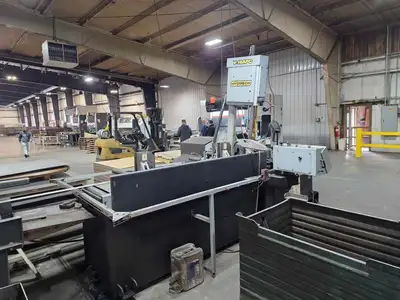

Hyd-Mech V-18APC Vertical Band Saw (2016)
Sold

Hyd-Mech V-18APC Vertical Band Saw (2016)

Vertical Band Saws
Manufacturer:
HYD-MECH
Model:
V-18APC
Year:
2016
Stock #:
94585
For Sale Low Usage V-18APC is fast, with its high speed shuttle feed indexing up to 40″ in a single movement. A 2 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head swing, head advance/retract, blade tension, guide arm, and shuttle movement. Featuring a 18″W x 22″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18APC is a reliable choice for all your vertical metal cutting applications.
Throat18"457.2 mm
Work Height32"812.8 mm
Power7.5 hp5.6 kW
Blade Width1.25"31.75 mm
Blade Length179"4,546.6 mm
FPM385385

Hyd-Mech V-18APC Vertical Band Saw (2016)

Capacity Rectangular w x h (Round)
90° 18"x 31" (18")
45° 18"x 21" (13")
30° 18" x 9" ( 9")
90° with oh bundling 18" x 12" (12")
45° with oh bundling 18" x 12" (12)"
30° with oh bundling 18" x 6" (6")
Blade size 1.25” x 16’ (11”)
Blade drive 7.5 HP VFD
Motor voltage 208, 240, 480 v
Blade speed 65-385 SFM
Coolant tank capacity 30 Gallons
Hyd. tank capacity 8 Gallons
Machine weight 9,000 lbs.
Table height 44”
Dimensions (w x l x h) 120” x 188” x 122”
Mitering capability 60° left to 60° right

Multi directional hydraulic tilt, hydraulic vices including auto shuttle material feed, chip conveyor, blade
