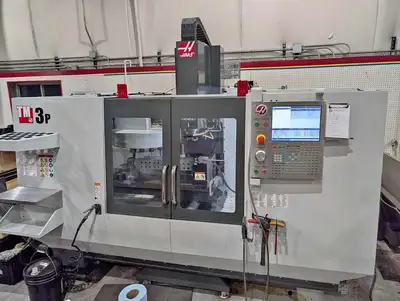

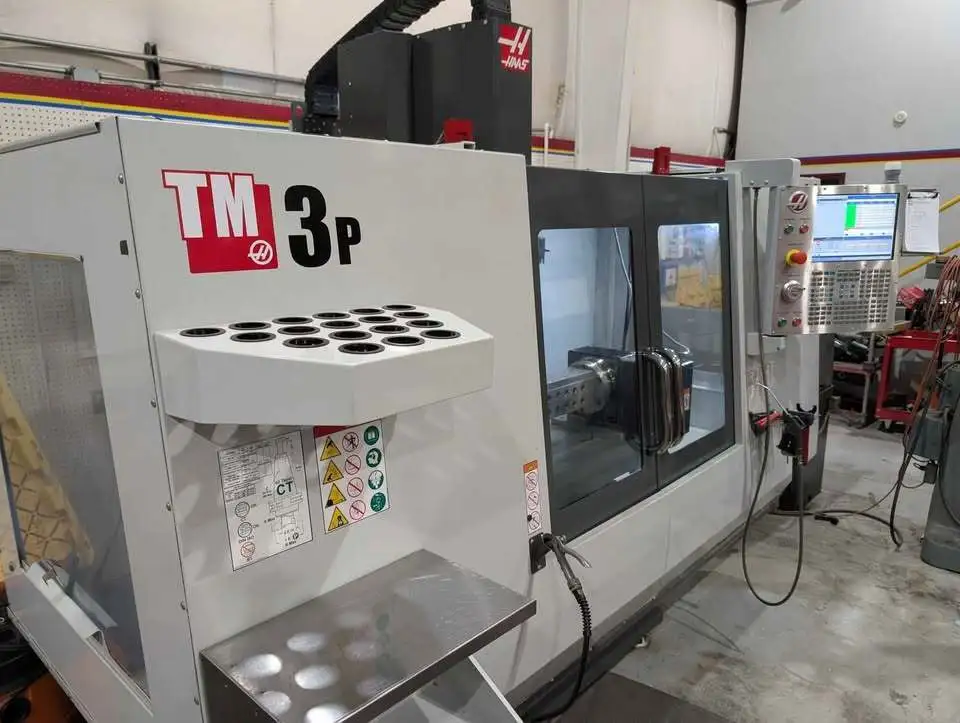

Haas TM-3P 4 Axis Vertical Machining Center (2017)
Have one to sell?
ConditionUsed
1 available
Very Low Hour, 4 Axis, easy to use, and offer the precision control of the Haas CNC system. They use standard 40-taper tooling, and are very easy to learn and operate – even without knowing G-code. They are the perfect option for schools and companies transitioning to CNC, or for anyone looking for a large-travel machine on a budget.
Haas TM-3P 4 Axis Vertical Machining Center (2017)
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 16"
Rapid Rate X Axis: 400 IPM
Rapid Rate Y Axis: 400 IPM
Rapid Rate Z Axis: 400 IPM
Max Table Load: 1,000 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 10000 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Cutting 400 ipm
Max Torque 33 ft-lbf
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf
Max Tool Diameter (3.5"
Max Tool Weight 12 lbs
Tool-to-Tool (avg) 5.7 s
Chip-to-Chip (avg) 6.5 s
Table Size: 57.8" x 14.5"
Dimensions: 130" x 88" x 98"
Weight: 6,200 LBS
This machine is fully loaded with premium factory options and includes a clean Haas HRT-210 4th axis. Perfect machine for prototyping, production, and firearms builders who need a rigid but compact VMC.
Only 3,731 power-on hours, very lightly used (9,277 tool changes).
Machine is extremely clean and fully functional. No issues.
🔧 Machine Specs & Options

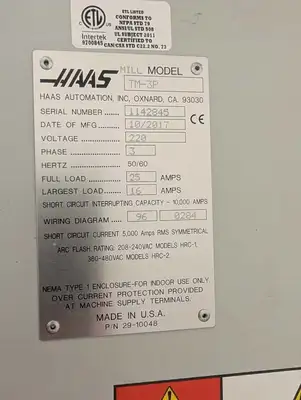

2017 Haas TM-3P (Serial: 1142845)
40x20x16 travel
Next Gen Control
20-station tool changer
10,000 RPM spindle
4th Axis Drive
High-Speed Machining (HSM)
Rigid tapping
High-pressure coolant
Chip auger
Spindle orientation
WIPS capable
3-phase 220V or Single-phase 220v

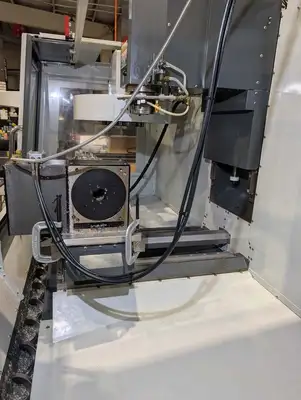

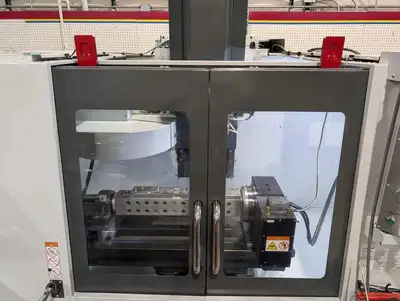

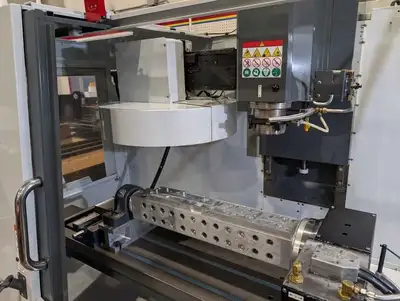

Includes Haas HRT-210 4th Axis
Clean, tight, smooth
Fully wired and ready to run
Adds major capability for indexing & full 4-axis machining
These sell alone for $6k–$9k

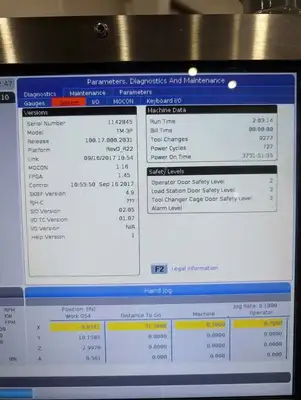

Hours / Condition
Power-On Time: 3,731 hrs
Tool Changes: 9,277 (very low)
Power Cycles: 727
Machine is clean, well-maintained, and ready to run
Original paint and interior are excellent
---
📦 Included With Machine
HRT-210 rotary and break booster
All cables
Manuals

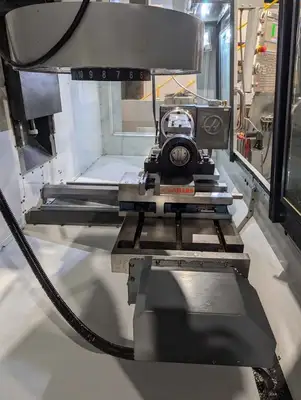

Vise & fixtures shown in pics optional
Can power up for inspection
---
🚚 Rigging / Shipping
Buyer responsible for rigging & freight
I can assist with recommendations for riggers
Machine is under power and can be test-cut
