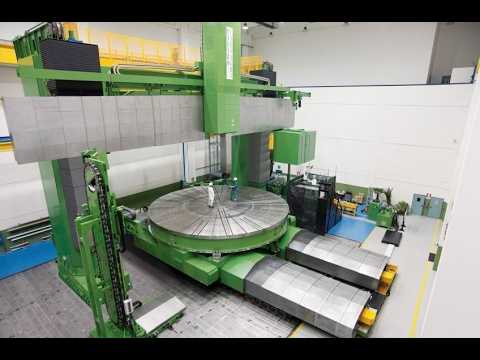

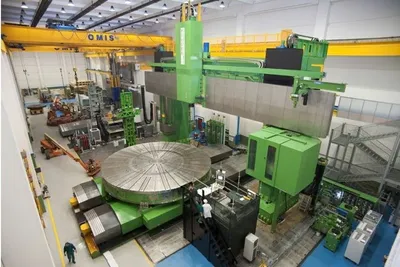

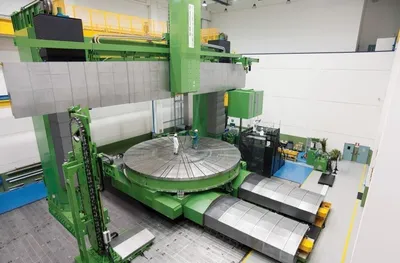

PIETRO CARNAGHI AP140 T/TM Live Tool CNC Vertical Boring Mill (2012)
Have one to sell?
ConditionUsed
1 available
New Never Put Into Production
Pietro Carnaghi Ap140 T/Tm Live Tool Cnc Vertical Boring Mill (2012)
Turning Diameter: 14000mm / 551.18"
Max Turning Diameter: 17000mm / 669.00
Table Dia Meter: 10000mm / 393"
Ram Travel: 3987 /157.48"
Rail Travel: 5588mm / 220"
Ram Cross Section: 584mm x 584mm / 23" x 23"
Table Load Capacity: 500 Tons (Metric)
Table Speeds: 0.2-35 Rpm Turning Power: 300kw
Turning Height(Fixed): 1500mm
Turning Height(Mobile): 8000mm
Rapid Feed Rate, X/Z Axes: 590.55 IPM
Main Motor Drive: 134 HP
Live Tool Milling Spindle Rpm: 3000 RPM
Fast Forward-X,Z: 10000mm/Min
Siemens Cnc Control
Y-Axis Table
Live Tool Milling/Drilling
Automatic Tool Changer
All hydrostatic Axles
Hydrostatic axial bearing table for loads up to 500 tons
Rigid Structure with Double column that Guarantees maximum stability
Cross head sized to support massive lathe carriages and high force
Extremely rigid cutting with power of up to 300kw;
Vertical head ISO 50 big plus ad8t5060164
Vertical head ISO 50 big plus 6000 rpm 8t5060165
Horizontal head ISO 50 big plus 8t5060163
Universal head -50 ISO 50 Big plus 8t5060171
Head d'andrea Ut-8-800-S8t5060166
Tool holder device 8t1203783
Tool holder 50x508t1203847
Tool holder 8t1203848
Tool holder 8t1203849
Boring bar 8t1203850
Tool holder 8t1203840
Milling Adapter 8t1203853
Renishaw piece 1probe 8t1203851
Movable Tool presetting 8t1116133
Renishaw probe 8t1116044
Probe calibrator for ISO50 big plus 8t1203852
Jaws 8t1201631
Jaws 8t1201648
Price Incudes Delivery [ Turnkey with 12 Month Guarantee and Service Contract ] .
Continued Planned Service and Maintenance is Available at Additional Cost.
