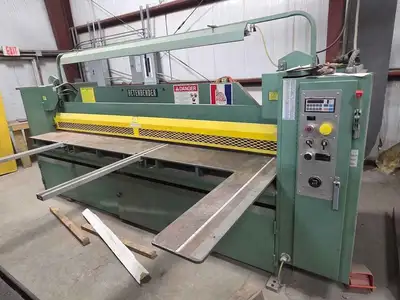

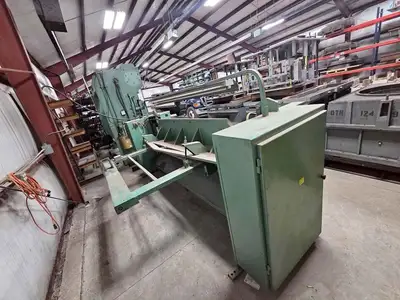

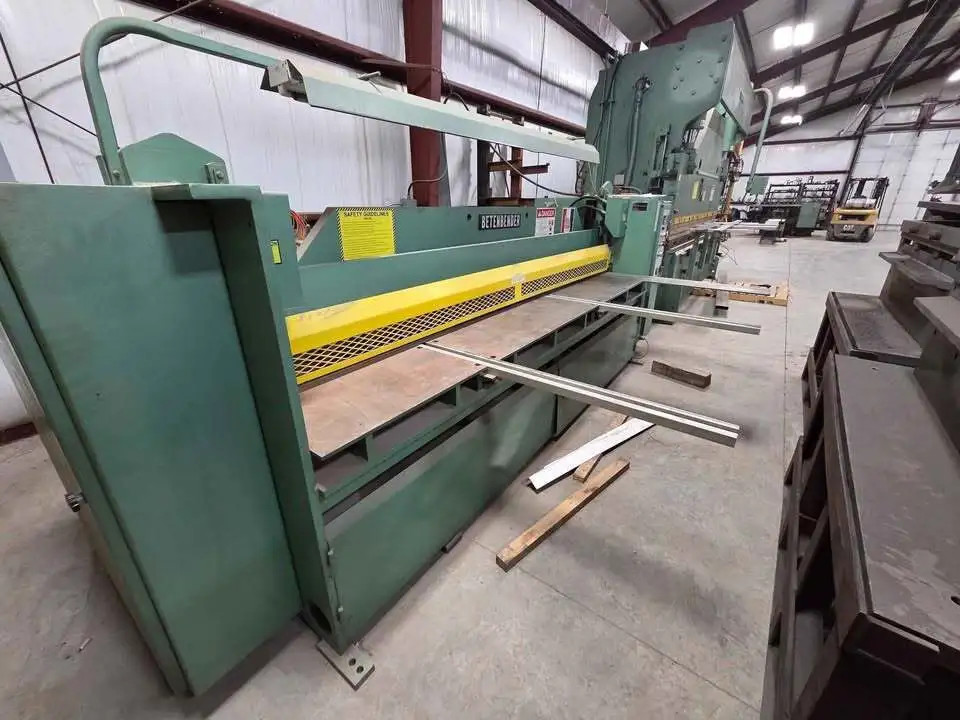

Betenbender 10-1/4 Hydraulic Power Shear (2015)

Betenbender 10-1/4 Hydraulic Power Shear (2015)

Capacity: 1/4″ Mild Steel

Knife Length: 124″

Squaring Arm Length: 35″

Rake Angle per Rated Capacity: 1/4″

Strokes per Minute: 15

Number of Hold Down Pins: 19

Hydraulic Pressure: 2,500 PSI

Motor: 15 HP / 208 – 230v, 460v / 3ph

Standard Features:

Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110 volt foot switch lets you interrupt the cutting stroke at any point in its cycle

Easy Material Handling: A sturdy back gauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4 foot squaring arm with a recessed scale makes for fast, easy measurement

Modified High Carbon, High Chrome Reversible Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials

Electrical System: Meets NFPA 79 and ANSI B11.4 requirements

Standard Equipment:

Single piece top and bottom, HCHC shock resistant knives with four cutting edges

4′ squaring arm with inlaid scale

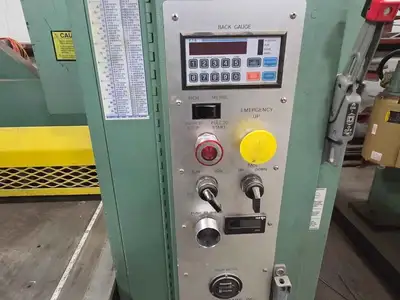

36″ power back gauge with LED read out, inch/metric

All hydraulic fluids included

All steel construction

American made hoses and fittings

American made motor and valves

Disconnect switch

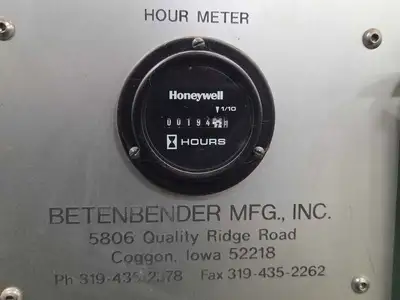

Hour meter

Hydraulic self-compensating hold down bar assembly

Light beam gauge (shadow line)

Linemaster foot switch

Manual rapid blade gap adjustment (3/8″, 1/2″, 5/8″, 3/4″)

Manual swing up back gauge

NEMA electronics

Power adjust variable rake

Safety switch for front guard

Mechanical Specifications:

Floor Space: 156″ x 61″

Weight: approx. 12,500 lbs.
