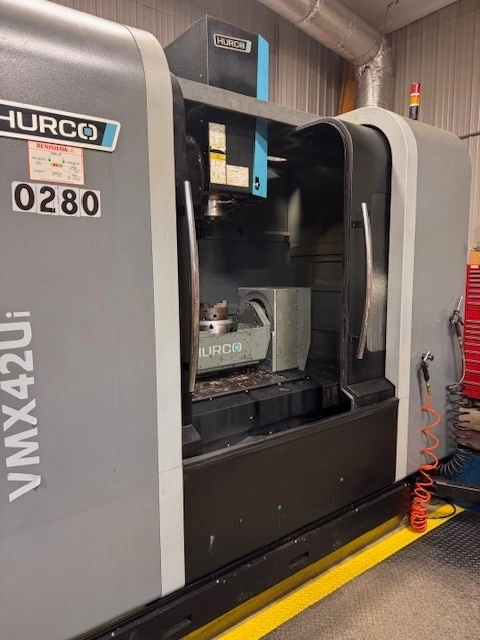

Hurco VMX42UI 5 Axis Vertical Machining Center (2015)
Have one to sell?
ConditionUsed
1 available

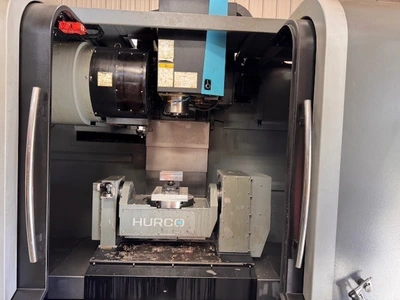

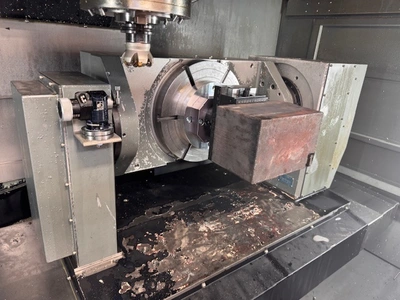

5 Axis, Built New in Dec 2014, Installed Jan 2015, Low Hours. The efficient design of the Hurco 5-axis trunnion table machining centers is a key benefit to consider— an integrated trunnion table instead of simply sticking a trunnion table on a 3-axis machining center and passing it off as a 5-axis machine. The integrated trunnion table design provides more clearance in Z compared to other brands.
Hurco VMX42UI 5 Axis Vertical Machining Center (2015
X, Y, Z Axis Travel 42 x 24 x 20.5 in (1,067 x 610 x 520 mm)
A-Axis Travel +30°/-110°
C-Axis Travel 360°
Spindle Nose to Table (Min-Max) 3.5 in / 24 in (90 mm / 610 mm)
Table Diameter 15.7 in (399 mm)
Max Weight on Rotary/ Trunnion Table 550 lbs (250 kg)
T-Slot Size 6 x .48 in x 60° (6 x 12 mm x 60°)
SPINDLE

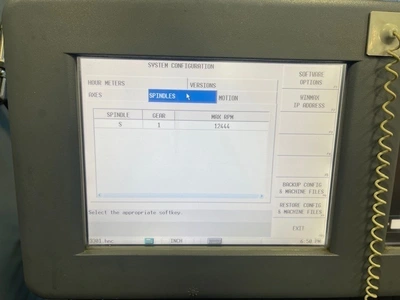

Max. Spindle Speed 12,000 rpm
Peak Spindle Motor 20 hp (15 kW)
Spindle Torque (peak - 1 min) 176.1 ft. lbs @ 720 rpm (238.8 Nm @ 720 rpm)
TOOL CHANGER
Tool Type CAT 40 (CAT, BT, DIN 40)
Number Of Tools 40
Max Tool Diameter 3.0 in (76 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb (7 kg)
FEEDRATES
Rapid Traverse X,Y,Z Axis 1,496, 1,496, 1,260 in/min (38, 38, 32 m/min)
Max Programmable Feedrate 1,260 in/min (32 m/min)
Rapid Traverse A, C Axis 25 rpm
SIZE
Max. Operating Floor Space 181.1 x 146.4 in (4,600 x 3,718 mm)
Machine Height 122.5 in (3,111 mm)
Machine Weight 15,752 lb (7,260 kg)
ELECTRICAL
Power Rating/ Full Load KVA 31 KVA
