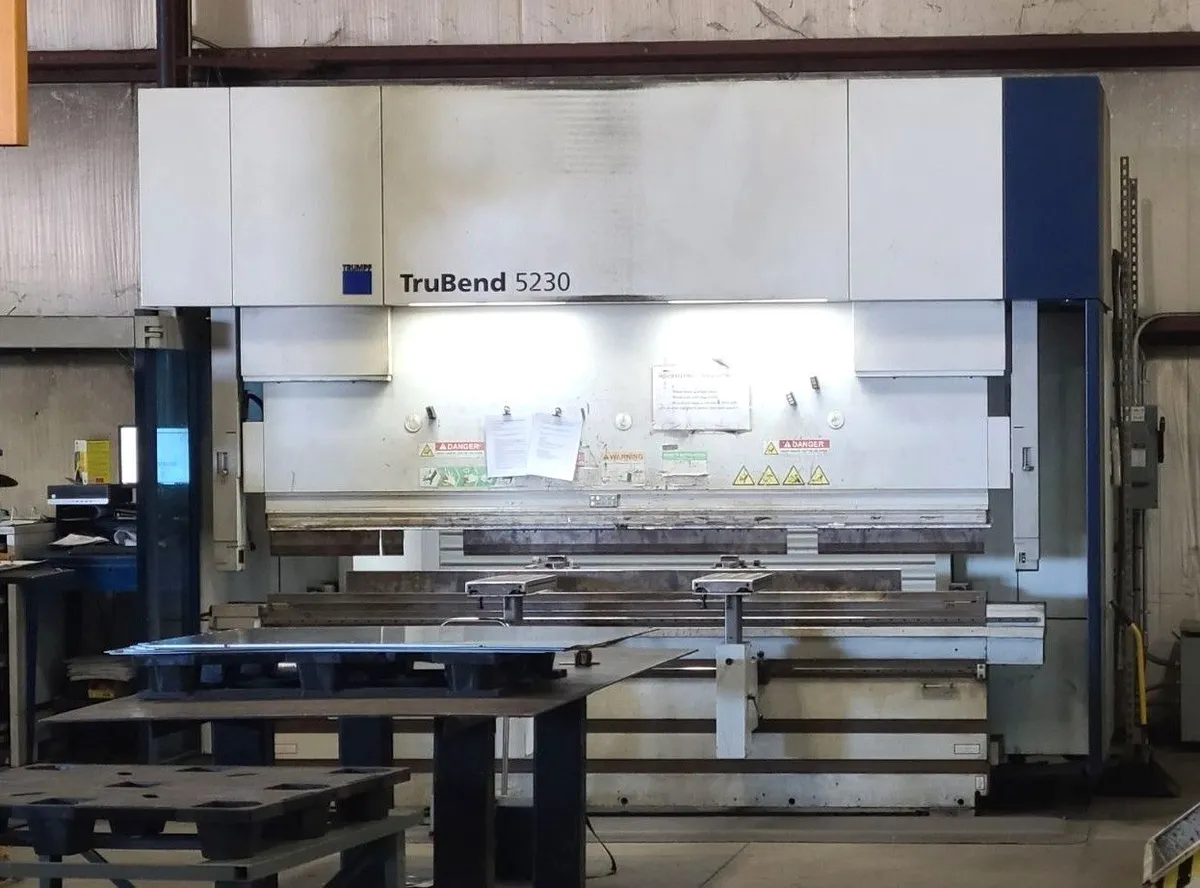

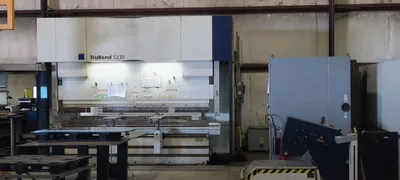

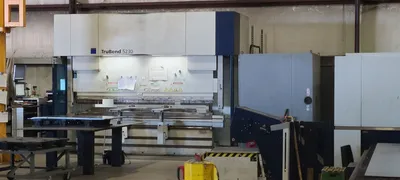

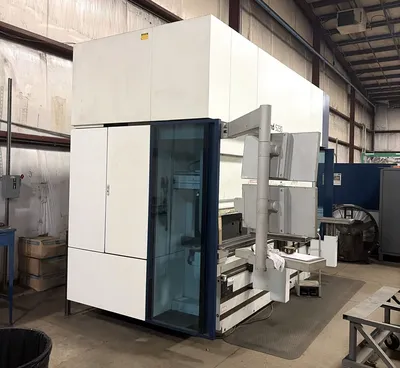

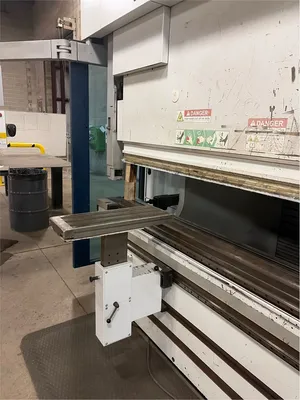

Trumpf Trubend 5230 253 Ton x 127" 7 Axis CNC Hydraulic Press Brake (2020)
Have one to sell?
ConditionUsed
1 available
Trumpf Trubend 5230 253 Ton x 127" 7 Axis CNC Hydraulic Press Brake (2020)
Tonnage Capacity 253 Tons
Maximum Bending Length 127.16"
Distance Between Housings 105.90"
Stroke 17.52"
Throat Depth 16.55"
Y-Axis Speed, Rapid Down 8.66” IPS
Y-Axis Speed, Press 0.0039" IPS
Y-Axis Speed, Rapid Up 8.66" IPS
Approximate Machine Weight 36,000 Lbs
Electrics 480/3/60
On Demand Hydraulic Servo Drive with 4 Cylinders

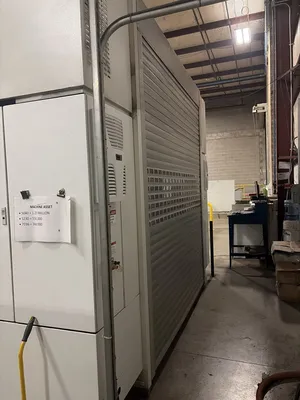

Rear Garage Sliding Door
Pneumatic I – axis
Up and Down Foot Switch

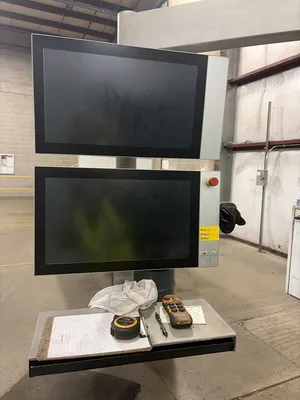

21” Touch Point Control
Network Capability
3D Program Visualization
Lower hydraulic Tool Clamping
Manual Crowning, Centrally Adjustable
TRUMPF Service Telepresence
Mobile Control
LED Work area lighting (Front and Rear)
Switch Cabinet Air Conditioning to 40 degrees Celsius
Bend Guard Light Safety
Operator ID Cards
Extend Open Height and Stroke to 24"
CNC Controlled Wila ‘Wave Plate’ Crowning
6 Axis Backgauge (X1, X2, Z1, Z2, R1, R2)
Hydraulic Upper Tool Clamping
Remote Control Interface (RCI)
Tool Indicator
TruTops Boost Post
Keyboard and Mouse with Support Arm
Additional Screen
Bar Code Scanner
ACB Laser
Quoted Options
Series - Punch Radi
OW202K - R1.6 (1/16”) 28 degree
OW202K - R3.0 (1/8”) 28 degree
OW202K - R4 (3/16”) 28 degree
OW203K - R8 (3/8”) 60 degree
OW203K - R12 (1/2”) 60 degree
OW308/S - Holder
Radius Insert - R19 (3/4”)
Radius Insert - R25 (1”)
Radius Insert - R35 (1.375”)

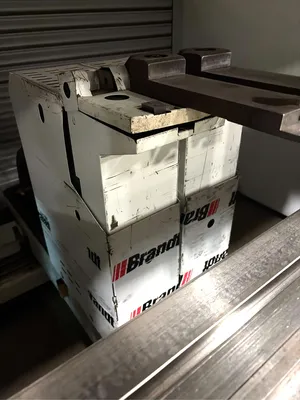

Dies
EV W16 - (5/8”) 30 degree
EV W24 - (1”) 30 degree
EV W40 - (1.5”) 80 degree
EV W50 - (2”) 80 degree
EV W70 - (2 3/4'') 80 degree
EV W100 - (4'') 80 degree
