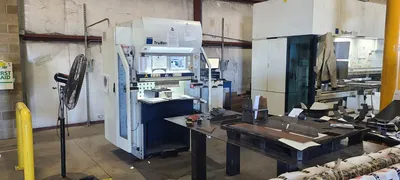

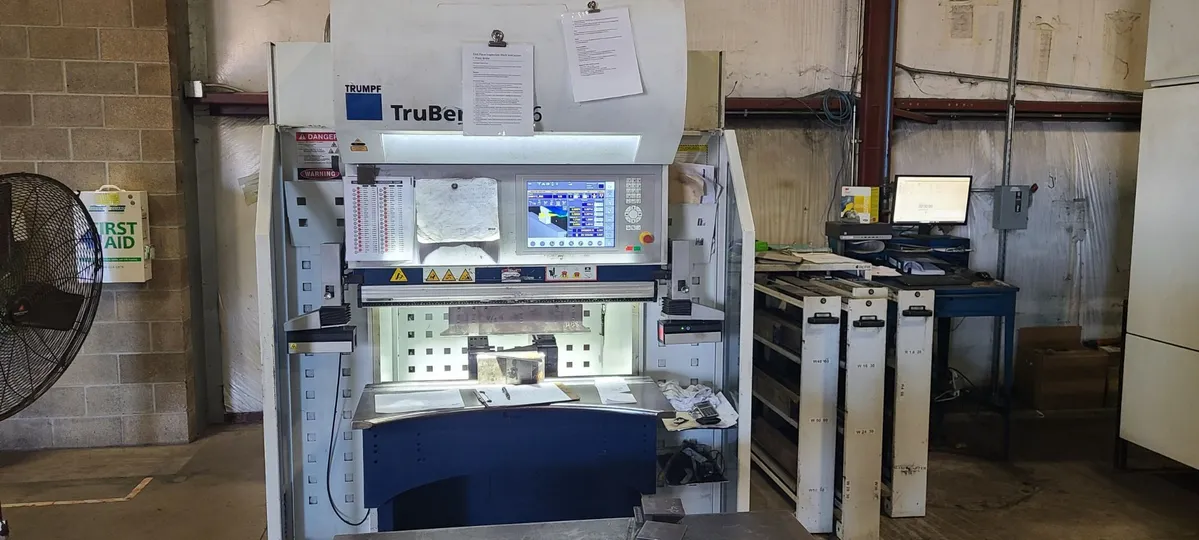

Trumpf Model TruBend 7036 CNC Hydraulic Press Brake (2020)
Have one to sell?
ConditionUsed
1 available
Very Low hour, 36 Ton Capacity, 40" Bending Length, The Trumpf TruBend 7036 is a fully electric precision CNC press brake. Trumpf designed the TruBend 7000 series to be the “fastest bending machine in the world”. However, a press brake is only as fast as its operator so the machines “certified machine ergonomics” allow an operator to run this extremely fast moving machine quickly and comfortably. The Trumpf TruBend 7036 is featuring 40 US tons of bending force and 40″ of bending length. It is equipped with the optional 6 axis backgauge and hydraulic clamping.
Trumpf Model TruBend 7036 36 Ton CNC Hydraulic Press Brake (2020)
Tonnage Capacity: 36 Tons
Bending length: 40"
Usable Installation Height: 11.8"
Width Between Columns: 36.6"
Max Table/Beam Dist: 16.5"
Speeds Rapid: 8.6"
Return Traverse Speed: 8.6"
Speeds Working: 0.3-0.9
Y Rapid: 520 IPM
Y Working: 24-59 IPM
Y Return: 520 IPM
X Axis: 2362 IPM
R Axis: 780 IPM
Z Axis: 2362 IPM
Y Axis Stroke: 4.75"
Travel Path X Axis: 9.5"
Max Gauge Area in X: 20"
Travel Path R Axis: 3"
Throat Depth: 5.9"
Operating Height: 42.7
Stroke: 25.4"
Electric Connection: 6 kVA 480/3/60
TruBend 7036 (40” Bend Length)
LED work area lighting, front Standard
2-button footswitch, for seated or standing operation Standard
15” Touch Screen Standard
Network Capability Standard
TRUMPF Service Telepresence Standard
Switch Cabinet Air Conditioning to 40 degrees Celsius Standard
Bend Guard Light Safety Standard
Operator Training at TRUMPF, 1 Slot
TASC 6000 - 3D Visual Control
Teleservice Via Internet
3-ABG system (X, R, Z)
Manual Upper Tool Clamp (not hardened)
Manual Lower Tool Clamping (hardened)
