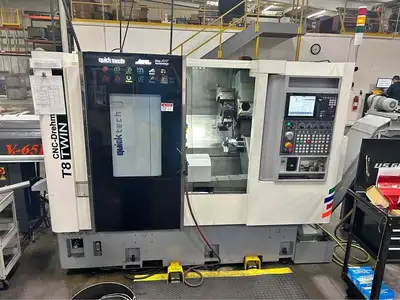

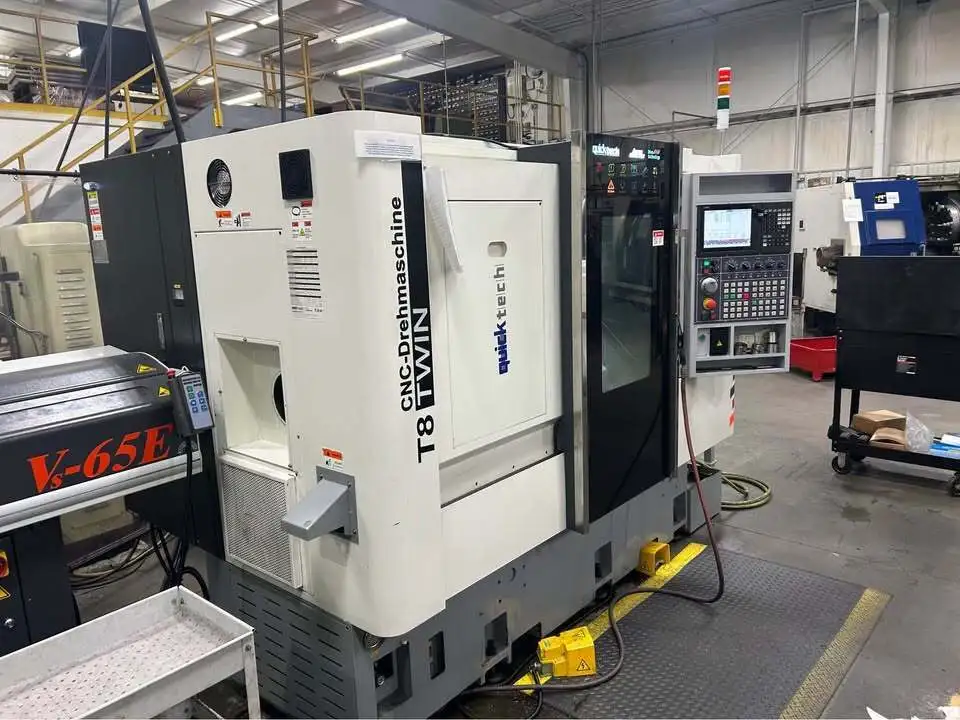

Quick Tech T8-Twin-Y Live Tool CNC Lathe (2021)

Quick Tech T8-Twin-Y Live Tool CNC Lathe (2021)

Main Spindle Swing Over Bed:
19.7″
Main Spindle Swing Over Cross Slide:
11.8″
Main Spindle Chuck Type:
8″ 3 Jaw Hydraulic
Main Spindle Max Bar Capacity:
2.56″
Main Spindle Max Turning Length:
13.8″
Distance Between Main Chuck and Sub Spindle:
15.7″
Spindle Nose:
A2-6
Hole Through Draw Tube:
2.6″
Spindle Speed (Main and Sub):
4000 RPM
Main Spindle Motor:
20 HP
C Axis Increment:
.001 Degrees
Sub Spindle Max Bar Capacity:
1.65″
Sub Spindle Max Turning Length:
13.2″
Sub Spindle Chuck Type:
6″ 3 Jaw Hydraulic
Sub Spindle Nose:
A2-5
Hole Through Draw Tube:
1.26″
Sub Spindle Motor:
7.5 HP
C Axis Increment:
.001 Increment
Max Cross Travel X Axis:
9.05″
Max Off Center Travel Y Axis:
3.15″ (+/- 1.57″)
Max Longitudinal Travel Z1 Axis:
15.7″
Max Sub Spindle Travel Z2:
15.15″
X,Y,Z1,Z2 Servo Motors:
2 HP
Ball Screw Diameter x Pitch:
1.25″ x 10 mm Pitch
Rapid Traverse Rate:
1181 IPM
Number of Tools:
12
Live Tool Spindle Speed:
4000 RPM
