| X | 20" | 508 mm |
| Y | 17" | 431.8 mm |
| Z | 15" | 381 mm |
| # Axis | 5 | 5 |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |

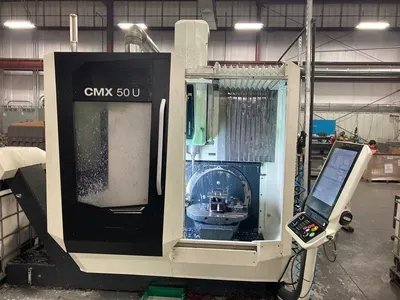

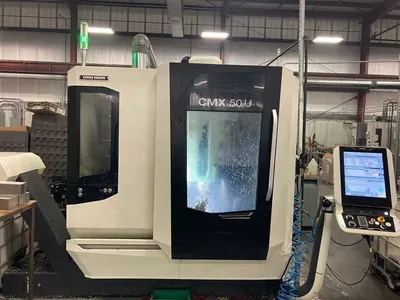

DMG Mori CMX 50U 5 Axis Machining Center (2020)
X-Axis 19.6"
Y-Axis Travel 17.7"
Z-Axis 15.74"
B-Axis (Table Swivel) -5 to +110 Degrees
C-Axis Index 0.001 Degree
Table Size 24.8" x 19.7"
Spindle Speed 15,000 RPM
Spindle Taper Cat 40 Big Plus
Spindle Motor 27.2 / 19.4 HP
Tools 60
Table Load Capacity 440 lbs.
Rapid Traverse Rates 1181 IPM
Max Tool Diameter 2.76"
Max Tool Weight 17.6 lbs.
Machine Dimensions (L x D x H) 163" x 140" x 107"
Machine Weight 12,000 lbs.
Spindle Torque 89.24 ft. lbs.

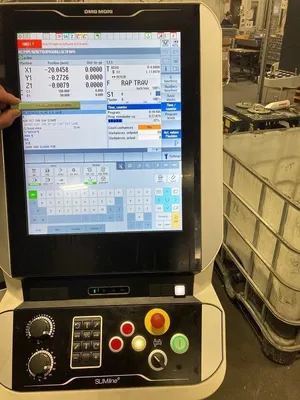

• DMG MORI SLIMline Multi-Touch Control (Siemens 840D)
• 19" Multi-Touch Color TFT
• 5-Axis Machining Capability
• (2) USB Ports

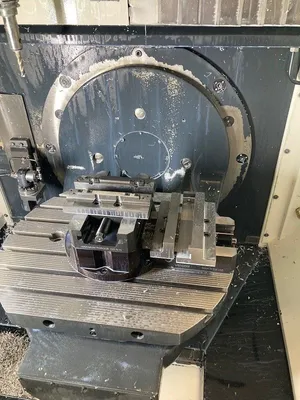

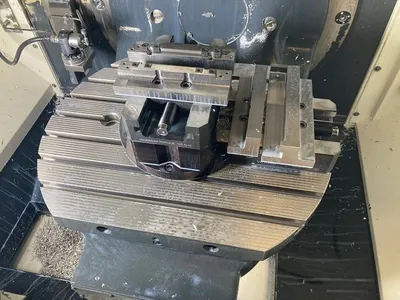

• Integral Trunnion Rotary/ Tilt Platter

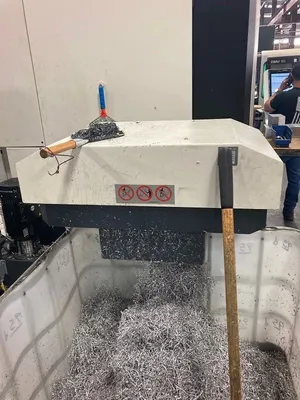

• Chip Conveyor (Left Side Exit)

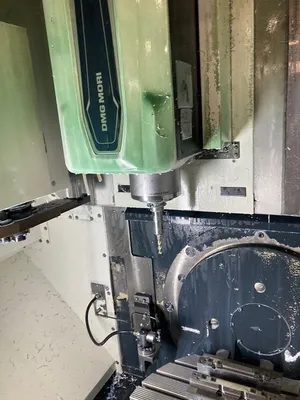

• 15000 RPM Cat 40 Big Plus Spindle

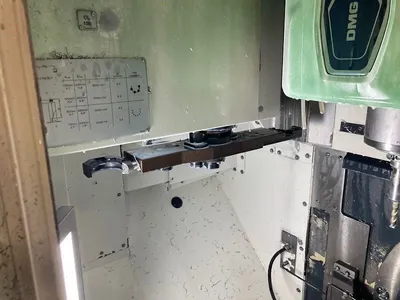

• 60 Tool Magazine
• Renishaw PP40 Touch Probe
• Renishaw TS27R Tool Presetter
• 3D Quickset

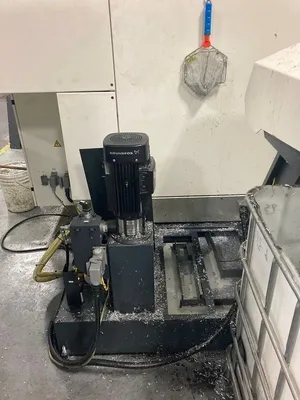

• Through Spindle Coolant (12 Bar)
• Bed and ATC Arm Flushing via M-Function
• Coolant Spray Gun for Swarf Removal
• External Electronic Handwheel
• Cabin Roof
• Signal Lamp with Four Colors
• 16 MB Memory
• Graphic Simulation of the Machining Process
• 7112 Power On Time
• 5209 Cutting Time
Job Shop Environment Cut Mild Steel and Aluminum
