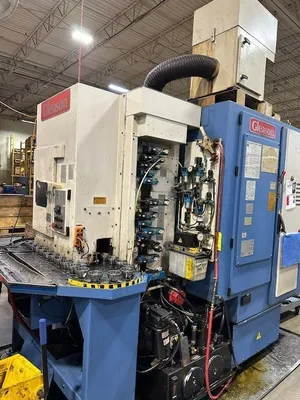

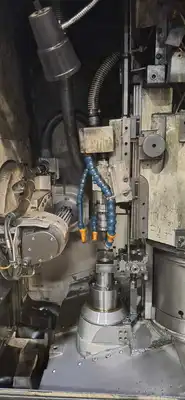

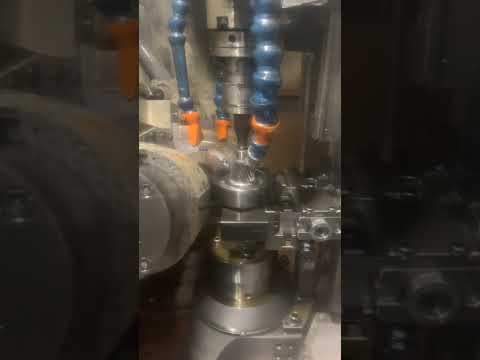

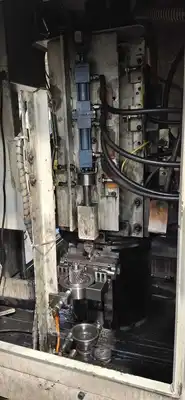

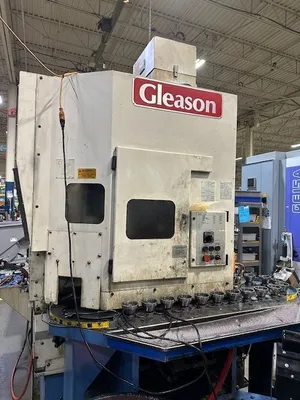

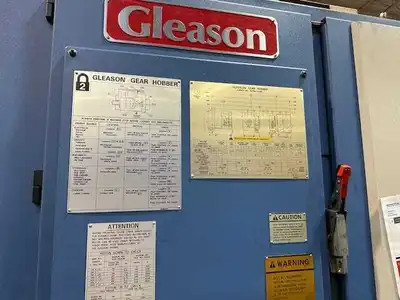

GLEASON Phoenix 125GH CNC Gear Hobber (1998)
Have one to sell?
ConditionUsed
1 available
Replacement hard drive, pre loaded with software in (2021), 150HG CNC Gear Hobbing Fanuc Series 150
GLEASON 125GH CNC GEAR HOBBER (1998)
Max workpiece diameter 4.52" / 125 mm
Min workpiece Diameter .25" / 6.4 mm
Max Pitch / Module 8 NDP/ 3.2 Module
Max Axial slide travel 11.81"/ 300 mm
Max Hob Head Swivel -180 -+ 40 degrees
Max diameter Hob 4.53" / 115 mm
Max Hob length 8.46" / 215 mm
Max hob Shifting length 7.87" / 200 mm
Max work head speed 1500 rpm
Max work head speed (optional) 3500 rpm
Hob Head drive rating 15 HP
Machine weight 15,000 lbs
floor space 106" x 65" x 122" high

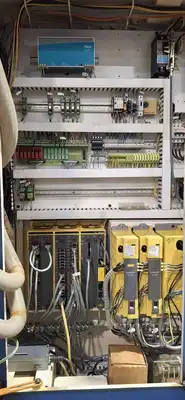

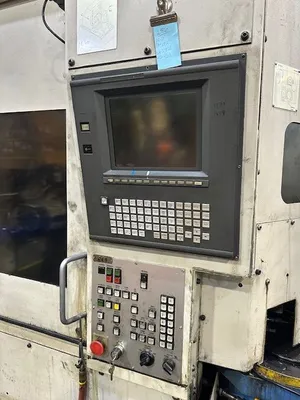

Fanuc 150-M cnc controls
180 position loader with loading station
light curtains
Chip conveyor
Mist collection
books and manuals
Replacement hard drive, pre loaded with software in (2021)
Hard drive was repaired and upgraded in 2021.
Replacement parts included:
Hard drive disc unit
software: preloaded and tested
lithium batteries
screw kit
