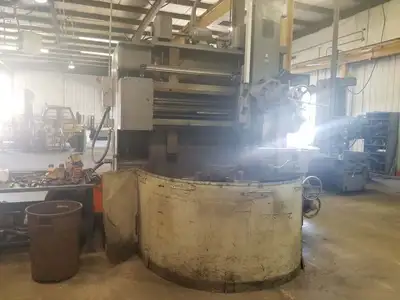

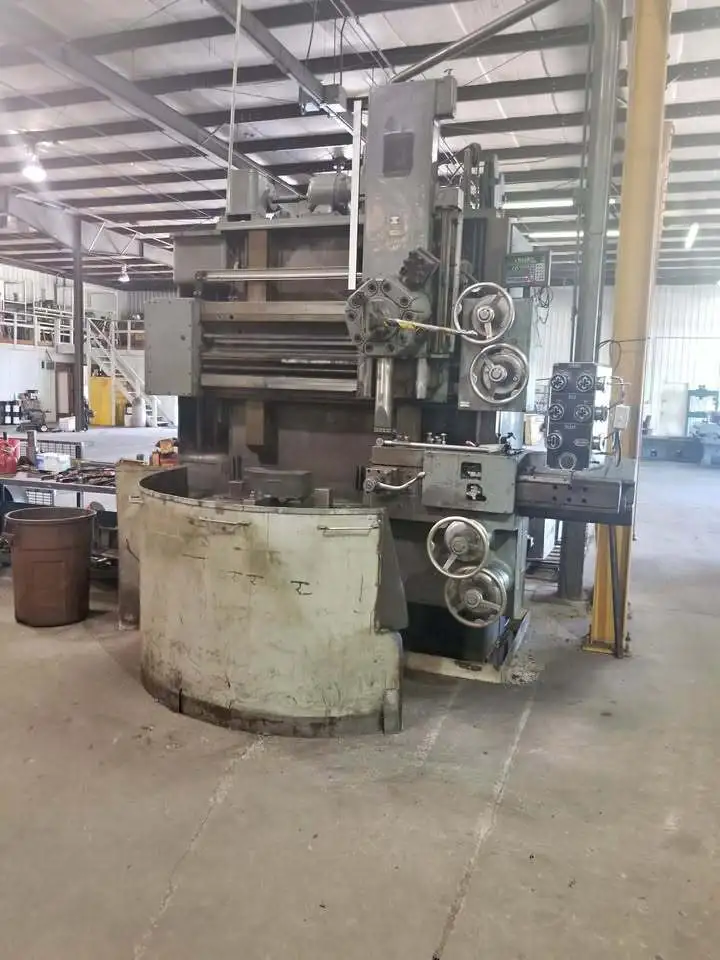

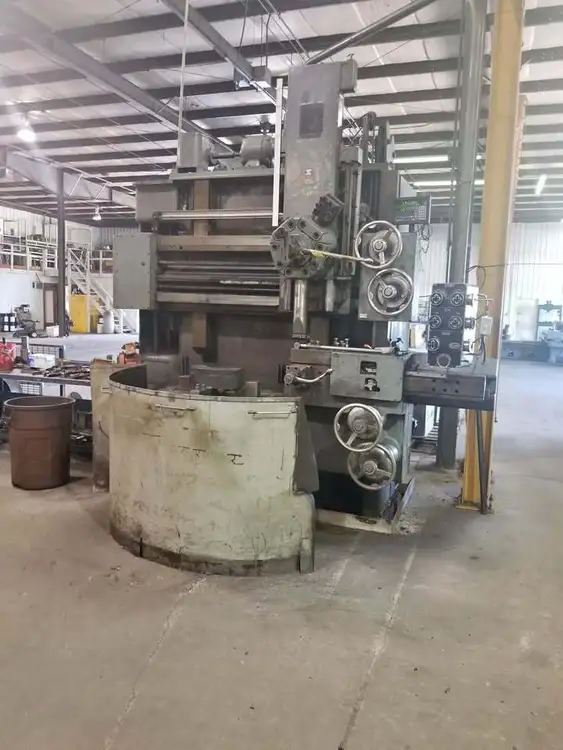

Bullard Cutmaster Model 75 46" Adjustable Rail Vertical Turret Lathe
Have one to sell?
ConditionUsed
1 available
46" 4 Jaw Chuck, Turret Head, Side Head, Man-Au-Trol
Bullard 46" Cutmaster Model 75 Vertical Turret Lathe
Max. Swing Side Head Down: 58"
Max. Swing Side Head Up: 55"
Height Under Rail: 41"
Table Diameter: 46"
Table Speeds: 5 - 187 RPM
Vertical Travel of Turret Head: 30-1/2"
Vertical Travel of Side Head:: 30-3/8"
Main Motor Drive: 30 HP
Machine Dimensions: 152" X 130" X 112"
Machine Weight: 59,312 pounds
4-Jaw Independent Chuck
Side Head
Turret Head
46" 4 Jaw Chuck, Turret Head, Side Head, Man-Au-Trol
Imperial
| size | 46" |
| Table Dia | 46" |
| Swing | 58" |
| Work Ht-U/R | 55" |
| Power | 30 hp |
| RPM | 187 RPM |
| Dimensions | 152" X 130" X 112" |
| Weight | 59000 |
Bullard 46" Cutmaster Model 75 Vertical Turret Lathe
Max. Swing Side Head Down: 58"
Max. Swing Side Head Up: 55"
Height Under Rail: 41"
Table Diameter: 46"
Table Speeds: 5 - 187 RPM
Vertical Travel of Turret Head: 30-1/2"
Vertical Travel of Side Head:: 30-3/8"
Main Motor Drive: 30 HP
Machine Dimensions: 152" X 130" X 112"
Machine Weight: 59,312 pounds
4-Jaw Independent Chuck
Side Head
Turret Head
