Froriep Schiess 32' Double Column CNC Vertical Boring Mill
Have one to sell?
ConditionUsed
1 available
32.75 Foot 4 Jaw Table

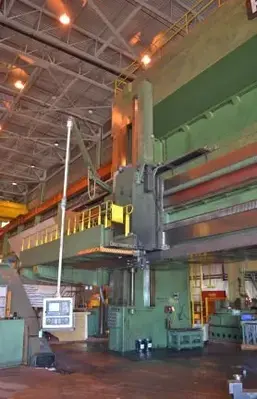

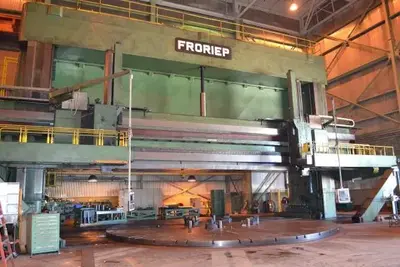

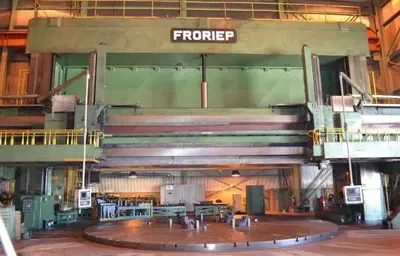

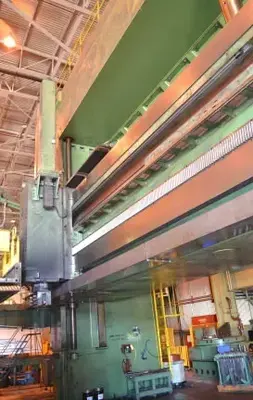

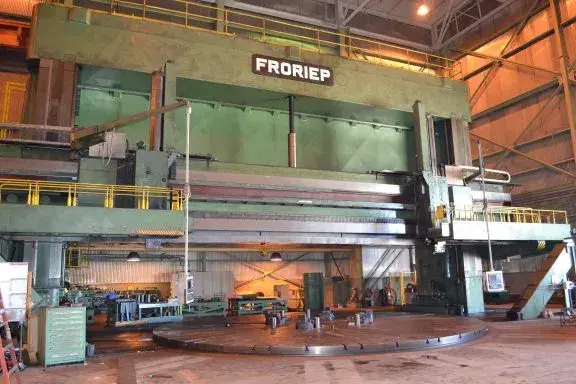

Froriep Schiess 32' Double Column CNC Vertical Boring Mill
Turning Diameter 590.55" 15,000 mm
Table Diameter 393.37" 9992 mm
Maximum Turning Height 196.85" 5000 mm
Ram Vertical Travel 78.74" 2,000 mm
Ram Swivel +/-30/15 Deg
Max. Cutting Force Right Rail Head 27,558 Lbs
Table Load Capacity 440,925 Lbs
Table Speed Ranges, Inf Variable 4
Table Speeds 0.13 To 13 Rpm
Rapid Transverse, X&Z Axes 64.17" Ipm
Creep Feed Motion, X&Z Axes 0.118 Ipm
Cross Rail Elevation Motor 40.23 Hp
Number Of Feeds, Vertical & Horizontal.. 30
Vertical Ram Feeds .00196-1.574 Ipr
Horizontal Ram Feeds .00196-1.574 Ipr
Cross Rail Adjustment Motor 86 Hp
Rapid Transverse Motors 15.5 Hp
Main Motor Drive 250 Hp
Siemens 840d CNC Control
Twin Pendant Operated Controls
(2) CNC Controlled Ram Heads

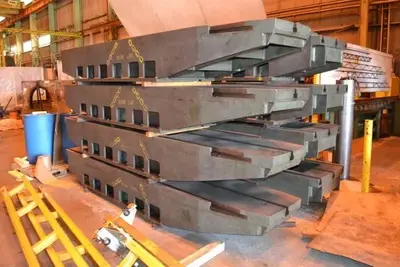

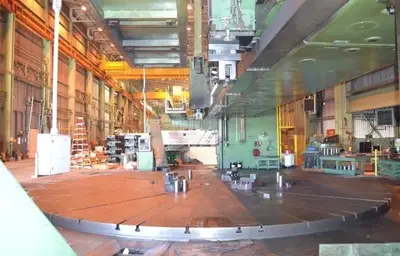

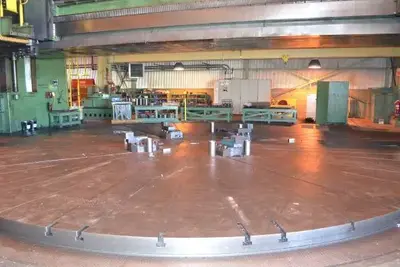

393.37" / 9992 mm Diameter T Slotted Table with (4)-Heavy Duty Face Plate Jaws
250 Hp / 186kW Main Motor Drive
Hydrostatic Bearing System For Table
(2) Operator Platforms
(2) Jorgensen Chip Conveyors

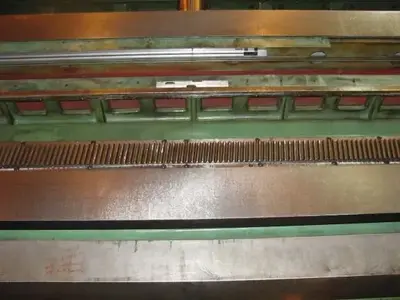

Rebuilt / Retrofit (1999) , Refitted Column, Saddle, Rams, New Ball Screws and Drives,

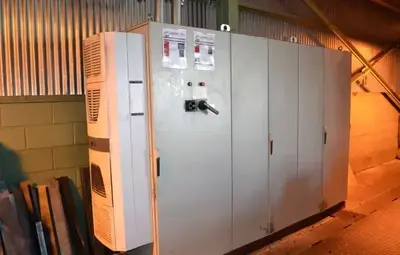

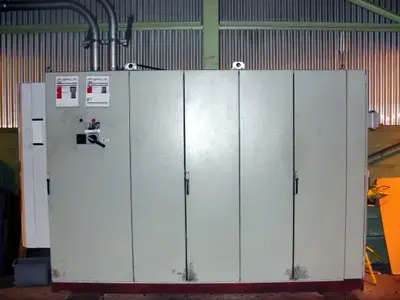

New Clutch System, Electrics
