8" Thick, 24" Wide Cutting Capacity, 12' Cut Length, 24" Blade Diameter, 30-HP, with A-B Panel View 1000 Control, Roller Feed Table, Chip Collection System, Side Lift, Safety Fencing and Extra Blades

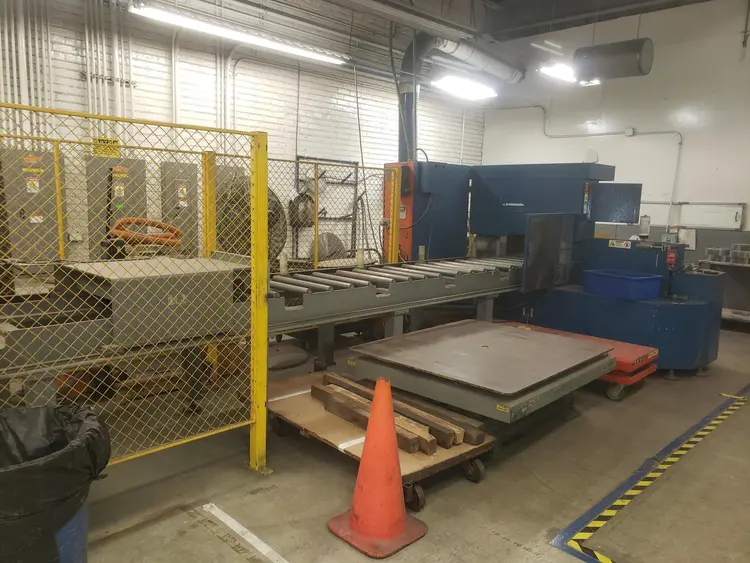

Metlsaw CS2-T8-12 Automatic Cut-off Saw (2009)
Cutting Capacity 8"
Cutting Capacity 24" Wide
Cut Length, 2'
Blade Diameter 24"
Main Motor Drive 30-HP
Carriage Speeds 500 IPM Forward
Carriage Speeds 1000 IPM Return
Back Gauge 500 IPM Forward
Back Gauge 1200 IPM Return
Surface Finish Down to 8 Microns-inch (RMS)
Tolerances
Straightness, Parallelism and Positioning Tolerance +/- 0.003"
Vertical Squareness Per Inch of Thickness +/- 0.0005"
Horizontal Squareness Inch Per Foot From Corner: +/- 0.002"
Allen Bradley Panel View 1000 Control,
Roller Feed Table,
Chip Collection System,
Side Lift,
Safety Fencing and Extra Blades
